Maintenance
TDS3000C Series S ervice Manual
4-29
You will need a
1
@
8
inch flat-bladed screwdriver and a pair of pliers to remove and
reinstall the front-panel USB port.
Removal. Use this procedure to remove the front-panel USB port from the front
chassis:
1. Use a screwdriver to bend the metal securing tabs slightly away from the
USB connector, as shown in Figure 4--15.
2. Slide the USB connector and cable out toward the front of the front chassis.

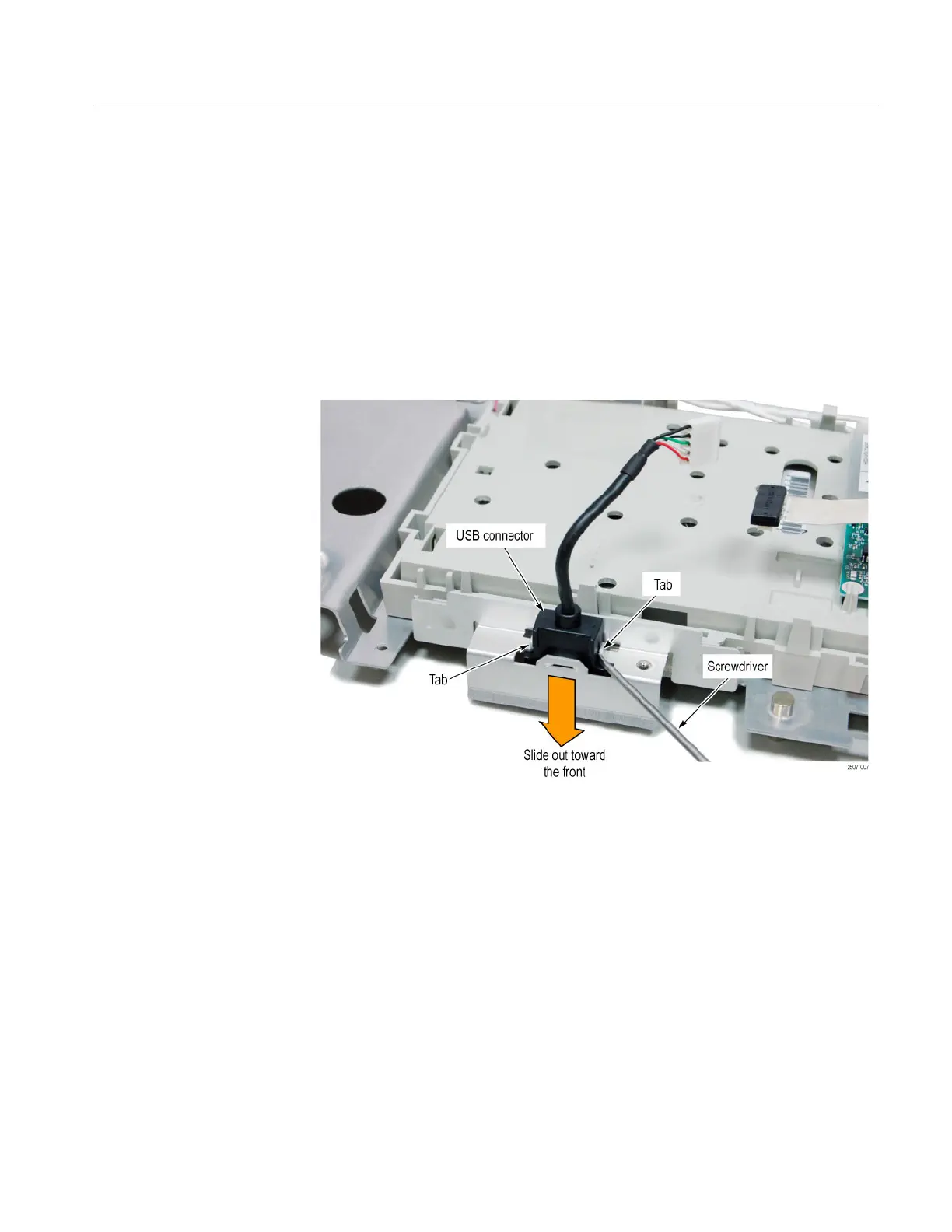

Figure 4- 15: Front-panel USB port removal
Installation. Use this procedure to reinstall the front-panel USB port.
1. Use a pair of pliers to straighten the tabs on the front chassis, if needed.
2. Insert the USB cable through the front chassis, from the front.
3. Insert the USB connector into the front chassis. The connector will only fit
into the chassis cutout when it is in the correct orientation. Push the
connector in until it snaps into place.
Front-panel USB port
