8.4 Port forwarding
This function is available only when the device works in WISP or Router mode.
8.4.1 Overview
If computers are connected to the CPE to form a LAN and access the internet through the CPE,
internet users cannot access the hosts on the LAN. Therefore, the servers, such as web servers,
email servers, and FTP servers, on the LAN are inaccessible to internet users.
To enable internet users to access a LAN server, enable the port forwarding function of the CPE,
and map one service port to the IP address of the LAN server. This enables the CPE to forward the
requests arriving at the port from the internet to the LAN server, and avoid the attacks from the
WAN.

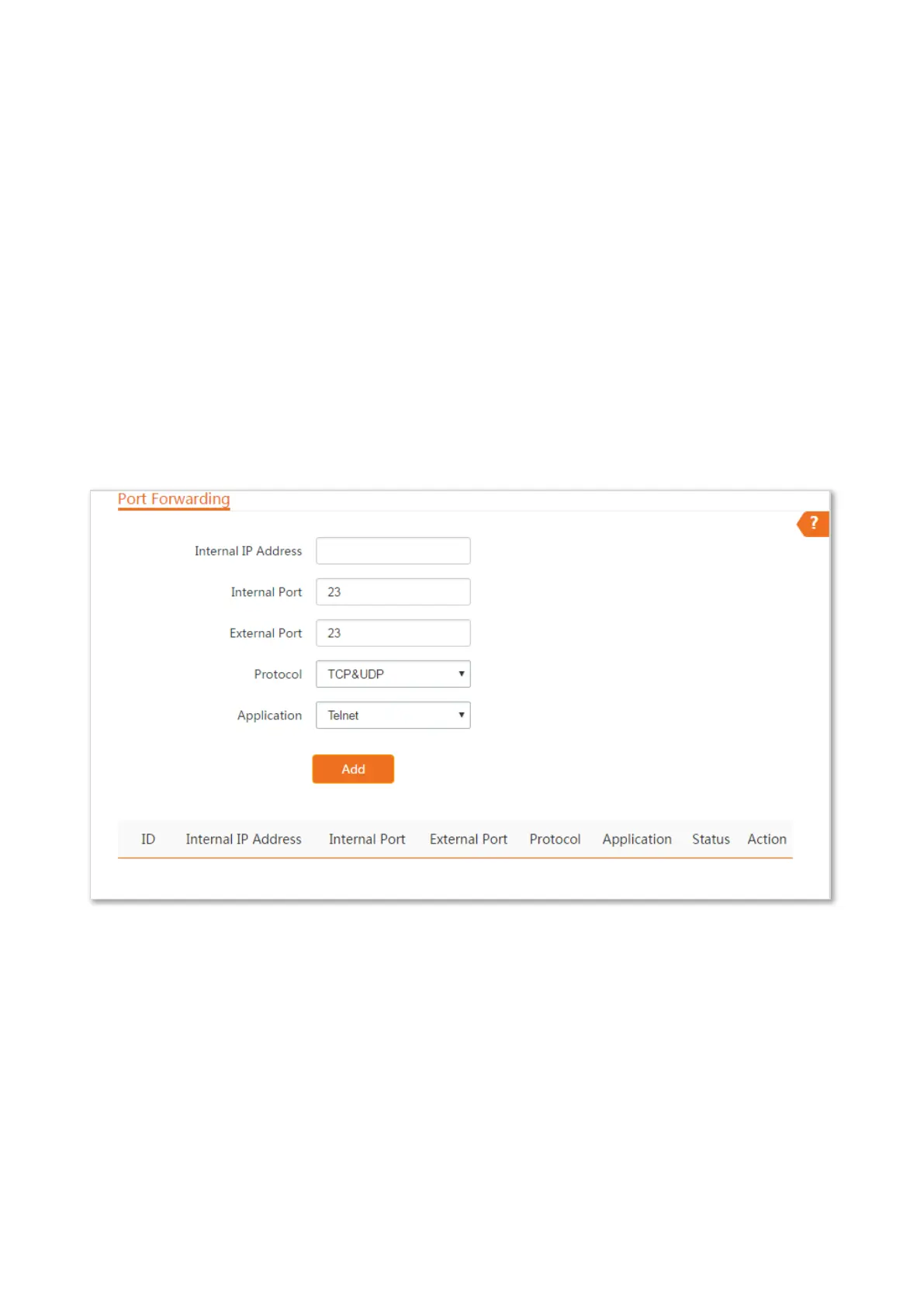

Choose Advanced > Port Forwarding to enter the page.
8.4.2 Configure port forwarding
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Port Forwarding.
Step 2 Enter an IP address in LAN.
Step 3 Select an Application, and the internal and external ports will be automatically
populated.
Step 4 Select a protocol of the selected applications.
Step 5 Click Add.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
