Tenda O3 User Manual

37
4.5 Example of universal repeater mode
Network requirement
You already had a wireless router in your office, but in your conference room, the wireless signal is
weak. Now you want to have a larger WiFi network coverage through your conference room.
Solution
Set the CPE to Universal Repeater mode to extend the WiFi network of the router.
Assume that the SSID and password of the router are shown as follows:
− SSID: WiFi_123456
− Password: 12345678

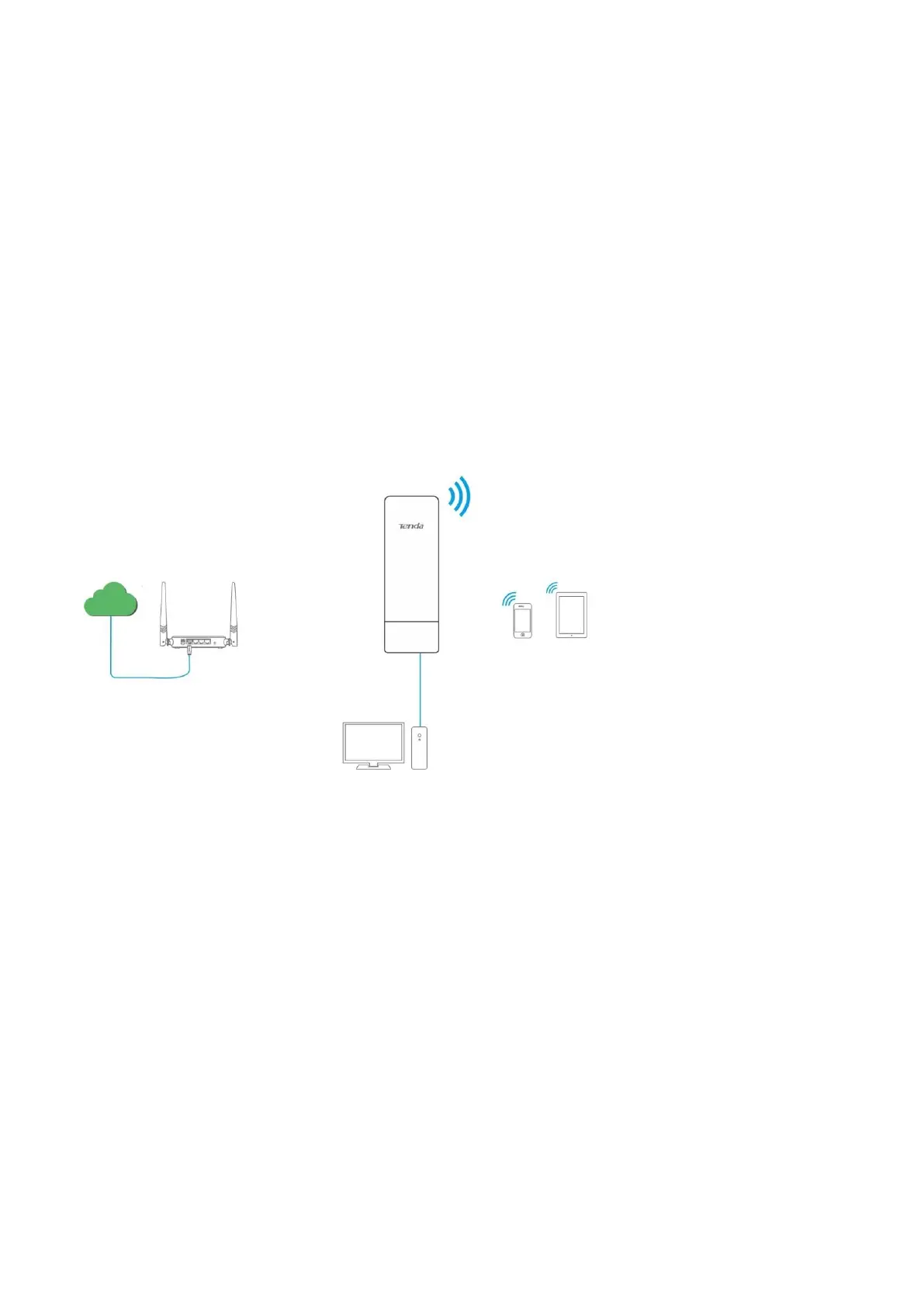

Network topology
Configuration procedures
Step 1 Log in to the web UI of the CPE and choose Quick Setup to enter the configuration page.
Step 2 Select Universal Repeater, and click Next.
SSID: WiFi_123456
Password: 12345678
Universal repeater mode
Router
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
