4.1 AP mode
In AP mode, this device connects to a wired network, and provides a wireless network for wireless
clients.
Application scenario 1

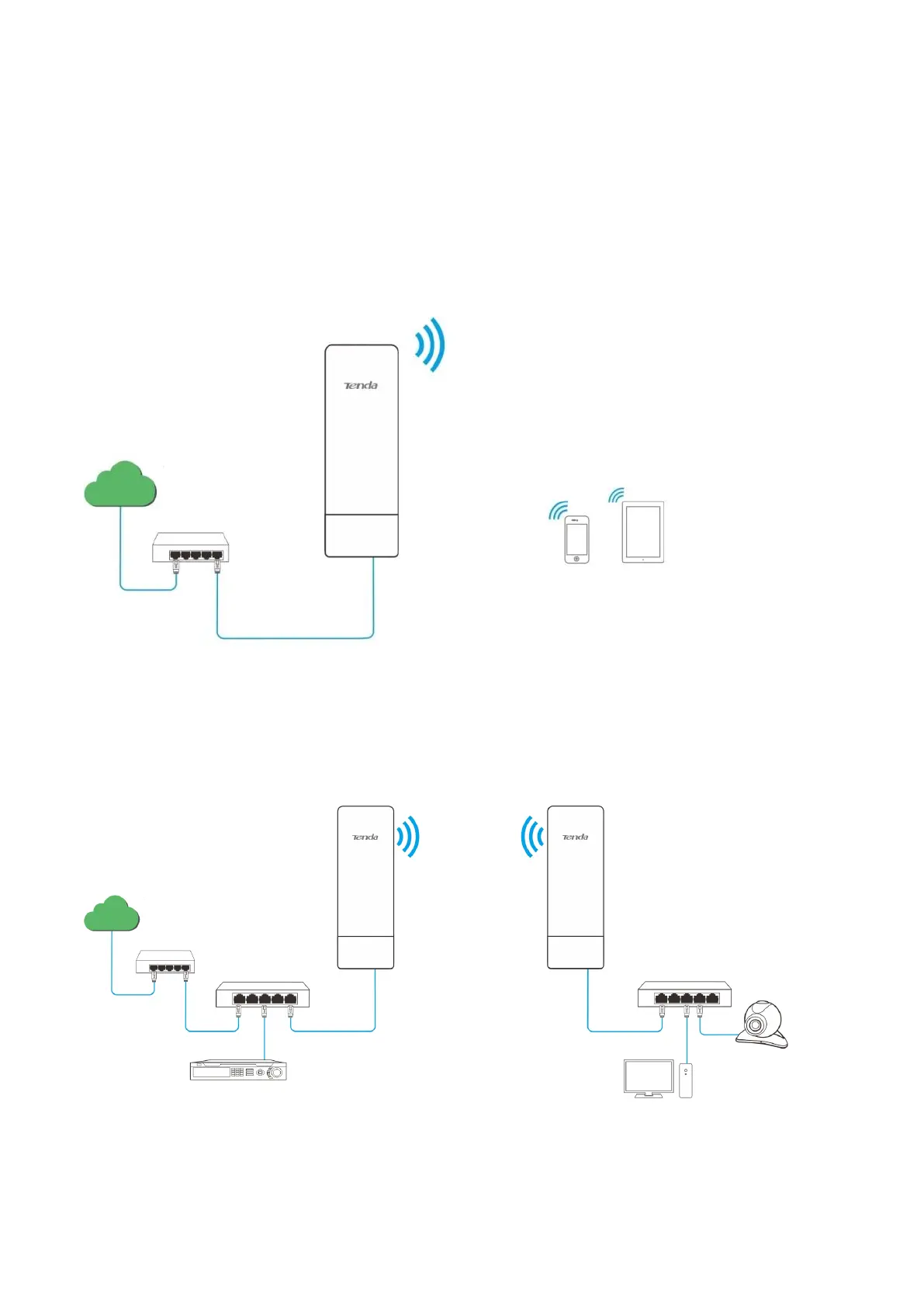

The CPE can be used to transform a wired network to a wireless one for your wireless devices to
access the internet. The network topology is shown as below:
Application scenario 2
The CPE in AP mode usually works with another CPE in client mode to establish a CCTV
surveillance network. Set one CPE to AP mode and connect it to the NVR, and the other to Client
mode, and connect it to an IP camera. The network topology is shown as below:
AP mode
AP mode
Client mode
Switch
NVR
Computer
Switch
IP Camera
Router
Router
Internet
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
