Tenda O3 User Manual

44
4.7 Example of WISP mode
Network requirement
You live in countryside, and it is not convenient for you to connect the nearest ISP CPE using
Ethernet cables. So you want to extend the ISP hotspot to your home in wireless manner.
Solution
Set the CPE to WISP mode, and bridge it to the ISP hotspot.
Assume that the SSID and password of the ISP hotspot are:
− SSID: WiFi_123456
− Password: 12345678
− Internet Connection Type: PPPoE
User name: admin
Password: admin

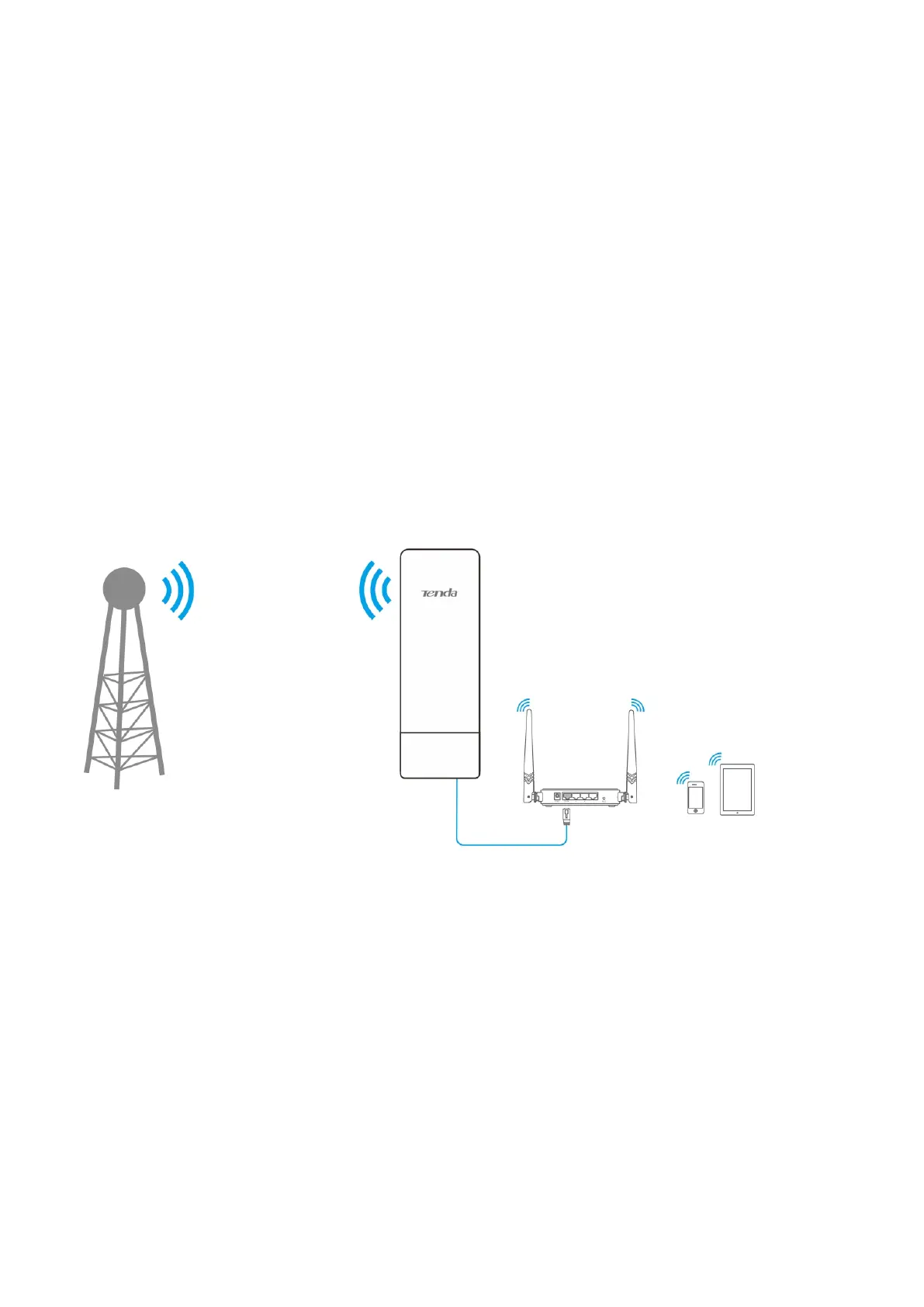

Network topology
SSID: WiFi_123456
Password: 12345678
WISP mode
ISP hotspot
Router

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
