Tenda O3 User Manual

1
1 Application scenario
1.1 ISP hotspot connection-WISP mode
An apartment needs to bridge an ISP hotspot for internet access.
1.1.1 Solution
Tenda CPE can meet this demand.
O4 is used as an example to illustrate the installation procedures. Procedures for other CPEs are
similar.
To establish the network quickly, you are recommended to set up the CPEs before installing them.
1.1.2 Set up the CPE

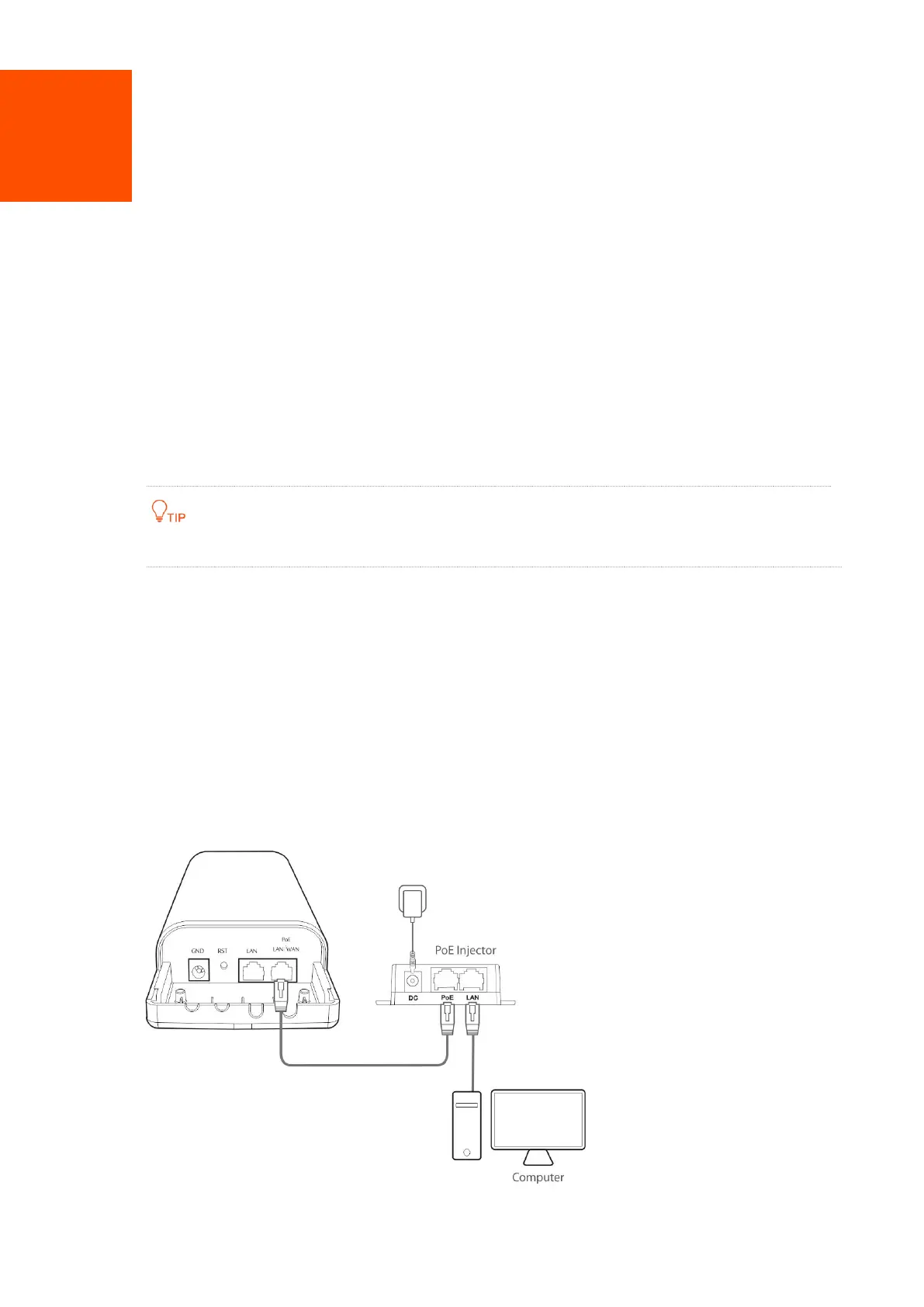

Step 1 Connect the computer to the CPE.
1. Uncover the housing of the CPE.
2. Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of
the PoE injector.
3. Use the included power adapter to connect the PoE injector to a power socket. The
LAN/WAN LED indicator of the CEP lights up.
4. Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
