4.8 Repeater mode
In Repeater mode, this device connects 2 or more (this device supports 4 at most) wired networks
with a wireless link, and can be connected with both wired and wireless clients. To use this
function, the peer AP is required to support WDS function. Repeater mode is used to achieve
communication between multiple offices of an enterprise in a city.
The CPE in Repeater mode can works with the CPE in Repeater or P2MP mode. It supports one to
four bridging at most.
Application scenario

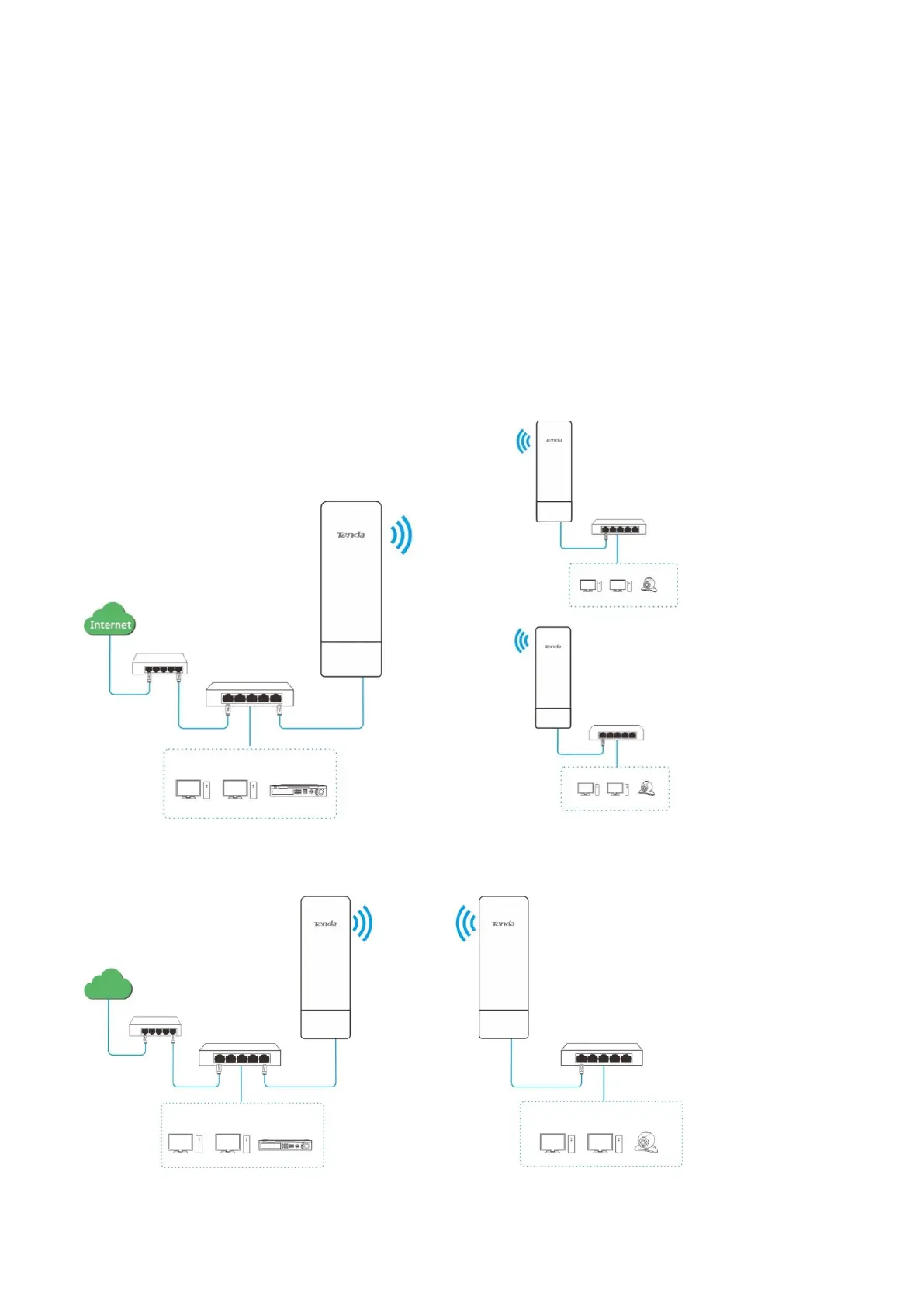

You want to combine multiple wired networks into one in wireless manner. The network topology
is shown as below:
Configuration procedures of peer to peer briding
CPE1 in Repeater mode
CPE2 in Repeater mode
CPE3 in Repeater mode
Switch
Switch
Switch
CPE2: Repeater mode
CPE1: Repeater mode
Switch
Switch
Router
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
