TBCTR
EPWMxA
EPWMxB
TBPRD
value
CB
CAP
P P
P
CB
CA
P
P
Action-Qualifier (AQ) Submodule

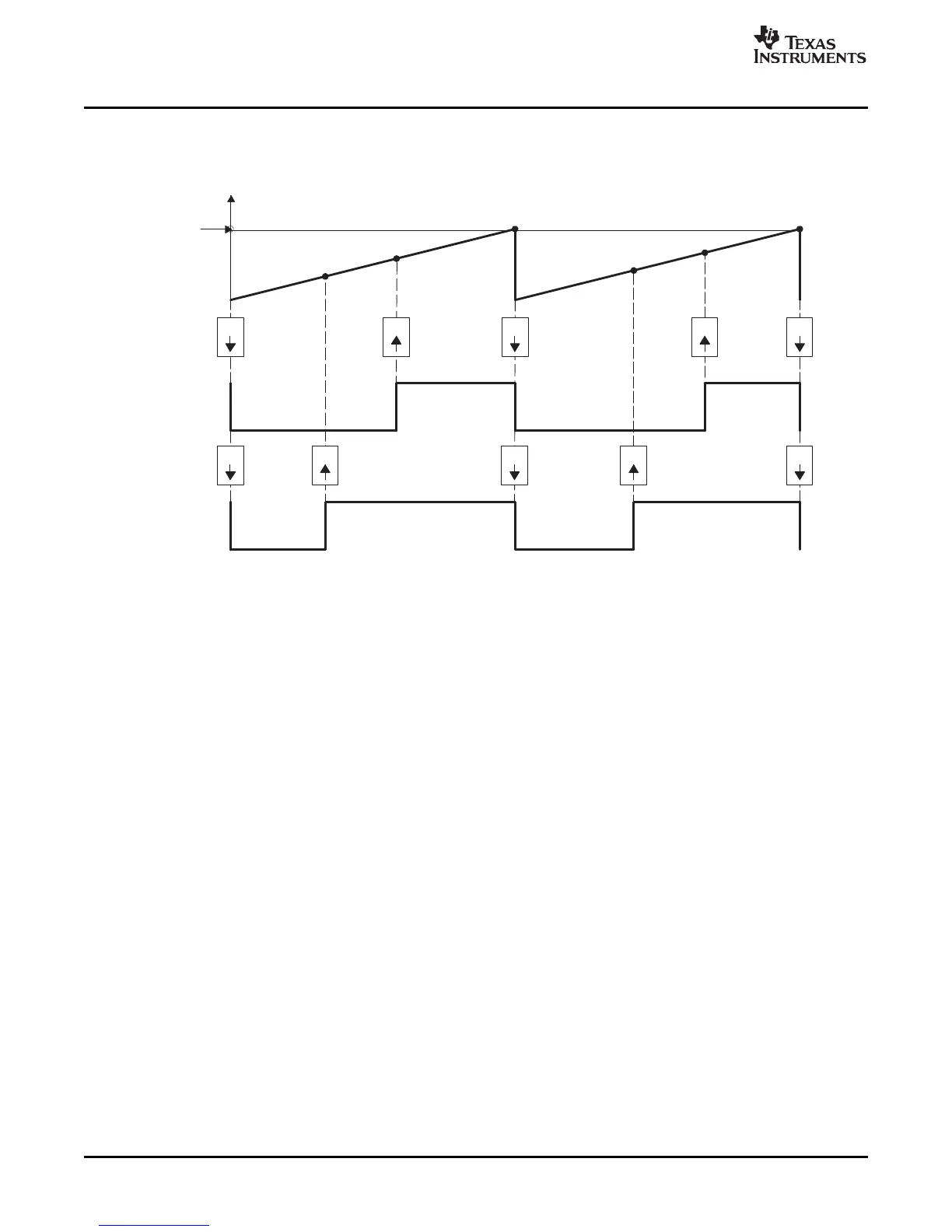

Figure 2-22. Up, Single Edge Asymmetric Waveform With Independent Modulation on EPWMxA and
EPWMxB—Active Low
A PWM period = (TBPRD + 1 ) × T
TBCLK
B Duty modulation for EPWMxA is set by CMPA, and is active low (that is, the low time duty is proportional to CMPA).
C Duty modulation for EPWMxB is set by CMPB and is active low (that is, the low time duty is proportional to CMPB).
D The Do Nothing actions ( X ) are shown for completeness here, but will not be shown on subsequent diagrams.
E Actions at zero and period, although appearing to occur concurrently, are actually separated by one TBCLK period.
TBCTR wraps from period to 0000.
Example 2-3 contains a code sample showing initialization and run time for the waveforms in Figure 2-22 .
