NA11 - Manual - 02 - 2009
APPENDIX

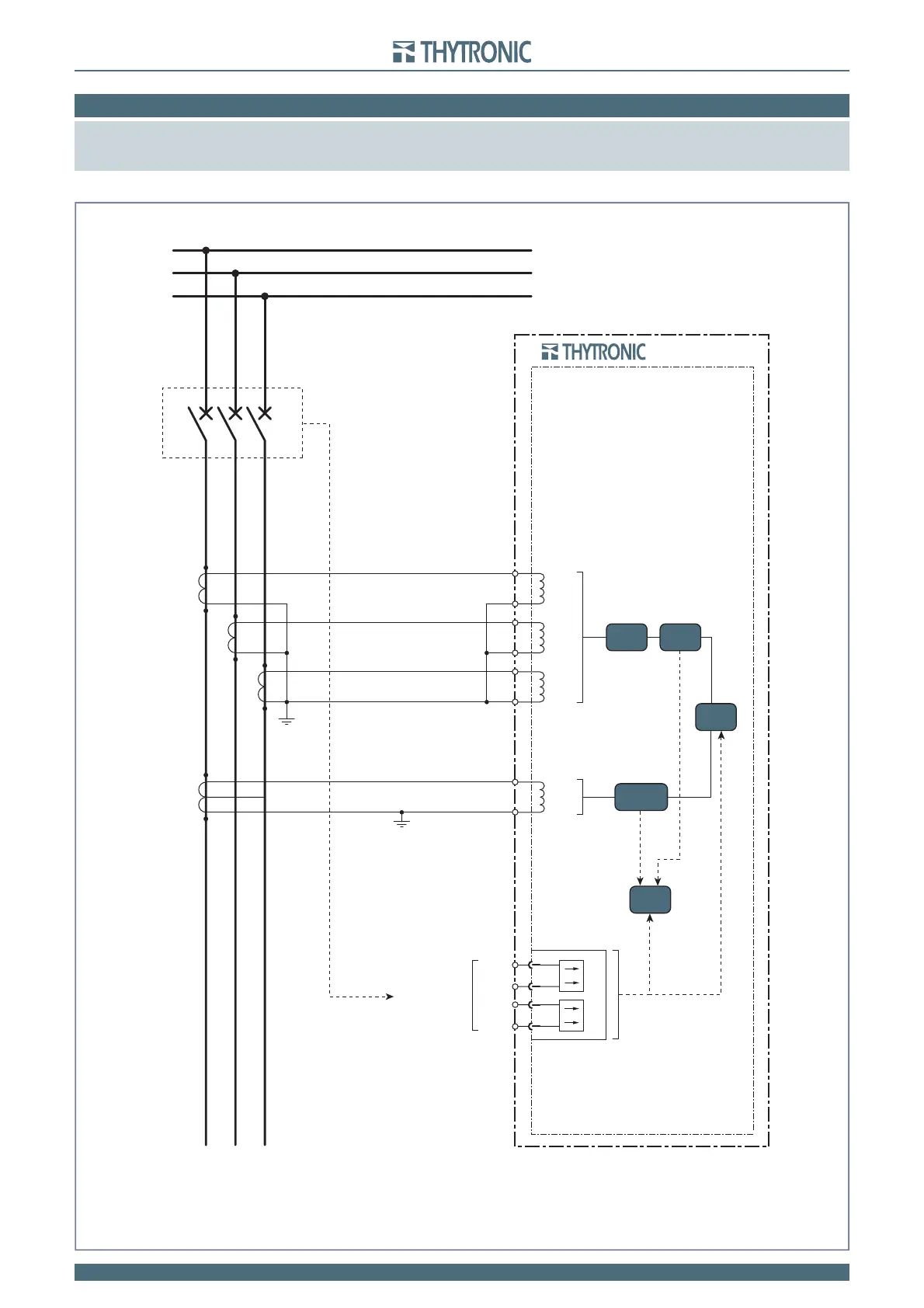

8.6 APPENDIX B3 - Connection diagrams
Note: Some typical connection diagram are shown.
All diagram must be considered just as example; they cannot be comprehensive for real applications.
For all diagrams the output contacts are shown in de-energized state for standard reference.
Three phase CTs and residual current from core balanced CT
CB position
NA11-SCH.ai
NA11
L1
L2
L3
C2
C1
C3
C4
C5
C6
P1
S1
S2
P2
I
L1
I
L2
I
L3
I
E
C7
C8
P1
S1
S2
P2
50N/51N
79
50/51
74CT
50BF
BINARY INPUTS
A19
IN1
IN2
A20
A21
A22
To Next Page
