NA11 - Manual - 02 - 2009
FUNCTION CHARACTERISTICS

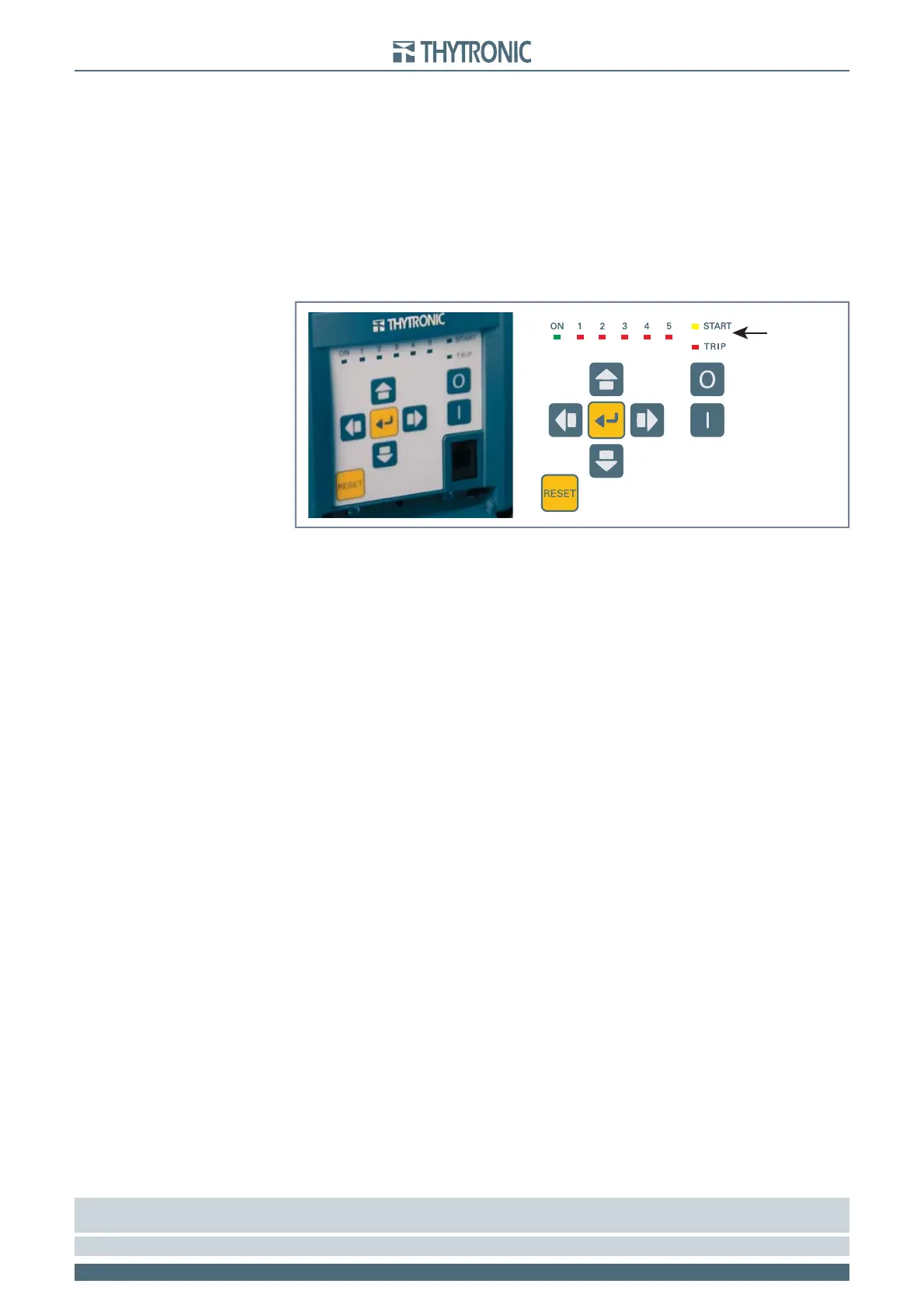

LED indicators
Eight LEDs are available.
One green LED “ON”: if turned on it means that the device is properly working, if fl ashing the inter-
nal self-test function has detected an anomaly.
One yellow LED “START” tagged for START of one or more protective elements.
[1]
One red LED “TRIP” tagged for TRIP of one or more protective elements.
[1]
Five red LEDs “1...5” for highlight the activation of one or more user defi ned function.
Each output relay may be programmed with following operating mode:
No-latched: the LED reset at the end of the trip condition.
Latched: the LED doesn’t reset at the end of the trip condition; it stays ON until a manual reset com-
mand is issued (RESET key, ThySetter or communication command).
Any change to the settings can be affected at any time, also with the relay on duty, separately for
each LED; the concerning parameters are available inside the Set \ LEDs menu.
Free allocation of each LED may be set according to the matrix structure shown in the following
page.
[2]
Note 1 The START and the TRIP LED are user assignable to any function; other than starting and tripping information can be assigned to them too, just
the same for L1...L5
Note 2 All LEDs are unassigned in the default setting.
•
•
•
•
•
•
