Thytronic NA11 User Manual

97
NA11 - Manual - 02 - 2009
INSTALLATION
6 I N S T A L L A T I O N
6 INSTALLATION
6.1 PACKAGING
Packaging consists of a paperboard packaging guaranteeing adequate protection for transport and
storage under normal environmental conditions.
The Pro-N protection relays must be stored within the required temperature limits; the relative hu-
midity should not cause condensation or formation of frost.
It is recommended that the devices are stored in their packaging; in the case of long storage, espe-
cially in extreme climatic conditions.
It is recommended that the packaging not be disposed of into the environment, but kept in case the
relay should be moved at some later time.
6.2 MOUNTING
The Pro-N protection relays are housed inside metal cases suitable for various kinds of assembly:
Flush mounting
Projecting mounting
With separate operator panel
Rack.
Removability is ensured to facilitate maintenance operations so that the electronic module can be
replaced; this provides minimum downtime and maximum protection availability.

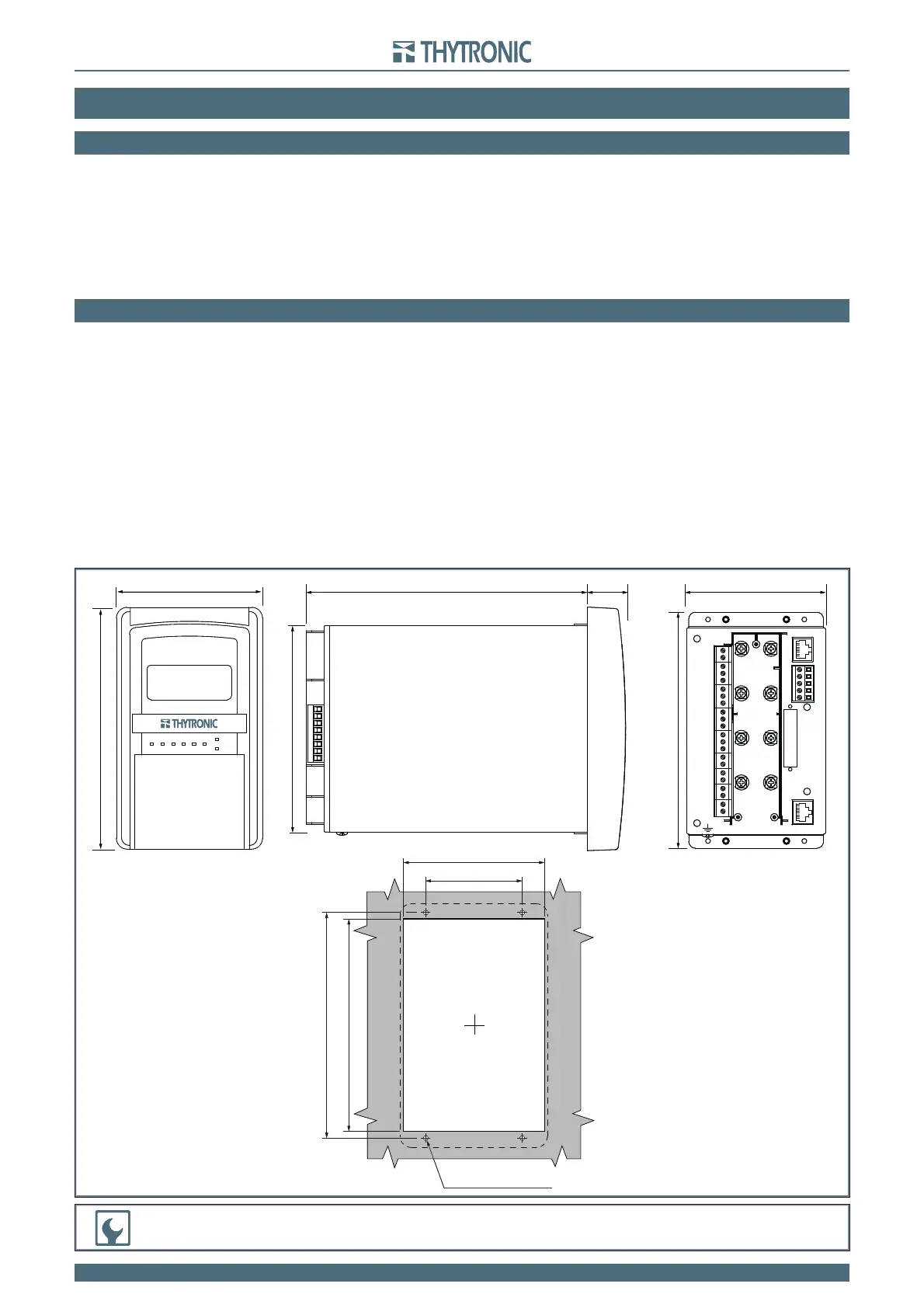

Flush mounting
The fi xed case, fi tted with special fastening brackets, is mounted on the front of electric control
board, previously drilled as indicated in the drawing.
In case of side-by-side mounting of several relays the minimum drilling distance is determined by
the front dimensions indicated in the overall dimensions drawing, increased by 3 mm, to ensure an
adequate tolerance and gasket space between adjacent relays.
The depth dimension, as indicated in the drawing, must be increased by as much as needed to allow
room for the wiring.
•
•
•
•
205
149
30
N.4 fori ø 3,5
102.5
±0.3
70
161
154
Flush-mount.ai
Flush mounting
107
177
ON 41325
TRIP
START
F1
D1
RX
TX
F2
F3
F4
F5
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
B1
B2
B3
B4
B5
B6
B7
B8
C1 C2
C4
C3
C5 C6
C7 C8
E1
171
101
205
149
30
N.4 fori ø 3,5
102.5
±0.3
70
161
154
Flush-mount.ai
Flush mounting
107
177
ON 41325
TRIP
START
F1
D1
RX
TX
F2
F3
F4
F5
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
B1
B2
B3
B4
B5
B6
B7
B8
C1 C2
C4
C3
C5 C6
C7 C8
E1
171
101
NOTE
Separation of fixed and removable parts is NOT required
NOTE
Separation of fixed and removable parts is NOT required
