40
TORNADO
USE AND MAINTENANCE MANUAL
428000393
237
EN
UPRIGHT DISPLAY CABINETS
C5
Electronic control board
S1
Temperature probe
I1
Cabinet switch
S2
Defrosting probe
I2
Light switch
U1
Compressor
I6
Microswitch
U2
Condenser fan
L1
Magnetic ballast
U3
Evaporator fan
L5
Fluorescent tube T8
U4
Cleaning fan
R2
Drip defrosting heating resistor
U8
Starter
R3
Outside perimeter heating resistor
R19
Drip tray heating resistor

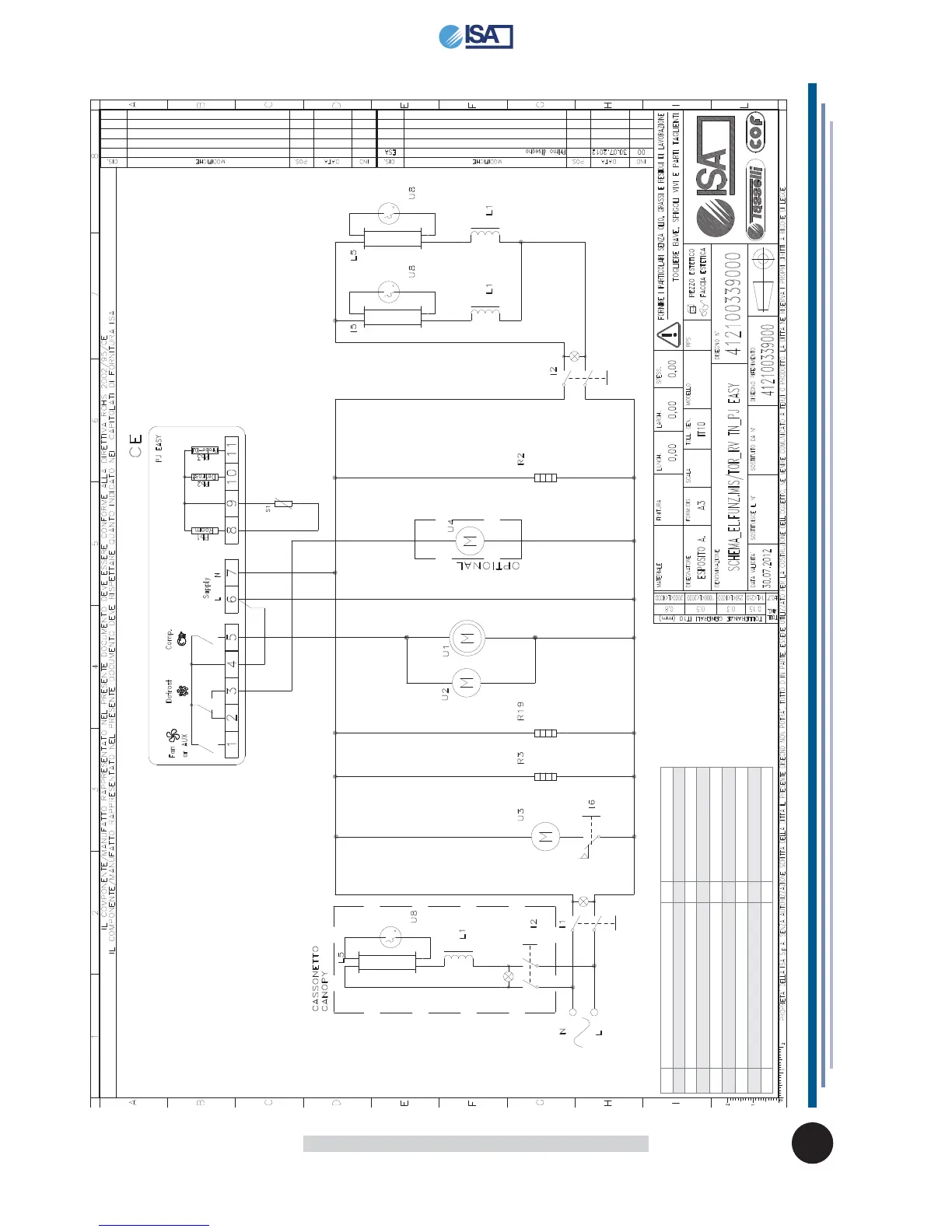

Attachment 5 - WIRING DIAGRAM - 412100339000
