Tornado 50 RV TB User Manual

49
EN
TORNADO
USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237
B2 Defrosting solenoid valve S1 Temperature probe C5 Electronic control board S2 Defrosting probe I1 Cabinet switch T5 Transformer I2 Light switch U1 Compressor I6 Microswitch U2 Condenser fan L1 Magnetic ballast U3 Evaporator fan L5 Fluorescent tube T8 U4 Cleaning fan R6 Door perimeter heating resistor U8 Starter R7 Heating resistor glass door

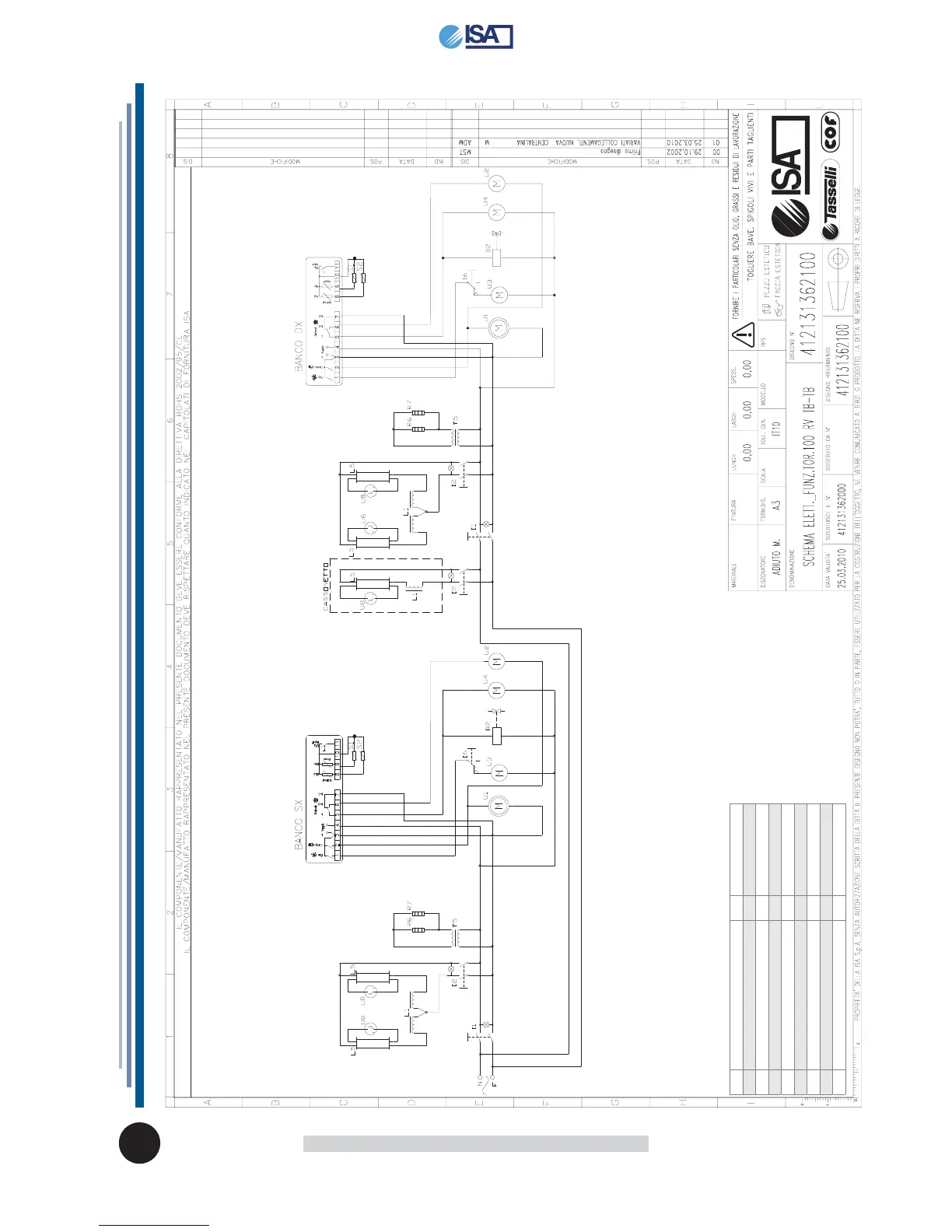

Attachment 14 - WIRING DIAGRAM - 412131365100
