TORNADO
USE AND MAINTENANCE MANUAL
428000393
237
EN
UPRIGHT DISPLAY CABINETS
BT1 Temperature probe EV3 Condenser fan
CE1 Electronic control board HL1 Internal light
EH1 Heating resistor perimetral door frame HL2 Internal light
EH2 Heating resistor HL3 Light canopy
EH3 Heating resistor door frame KA1 Relay cleaning fan
EH4 Heating resistor door frame MS1 Compressor
EH5 Heating resistor glass XS1 Power supply
EV1 Cleaning fan GD1 Power supply 24V

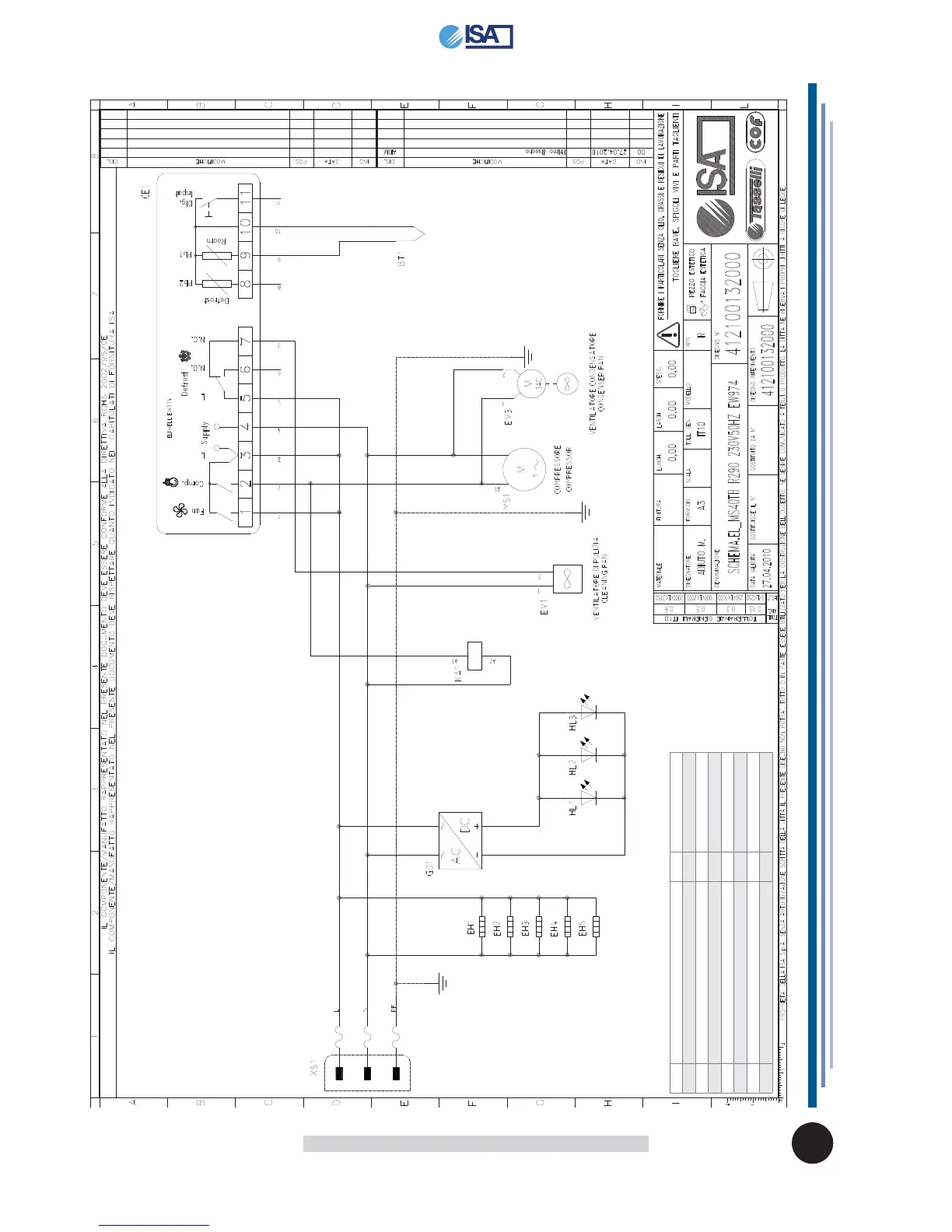

Attachment 7 - WIRING DIAGRAM - 412100132000
