Tornado 50 RV TB User Manual

47
EN
TORNADO
USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237
C5 Electronic control board R19 Drip tray heating resistor I1 Cabinet switch U1 Compressor I2 Light switch U2 Condenser fan I6 Microswitch U3 Evaporator fan L1 Magnetic ballast U4 Cleaning fan L5 Fluorescent tube T8 U8 Starter R2 Drip defrosting heating resistor S1 Temperature probe R3 Outside perimeter heating resistor S2 Defrosting probe

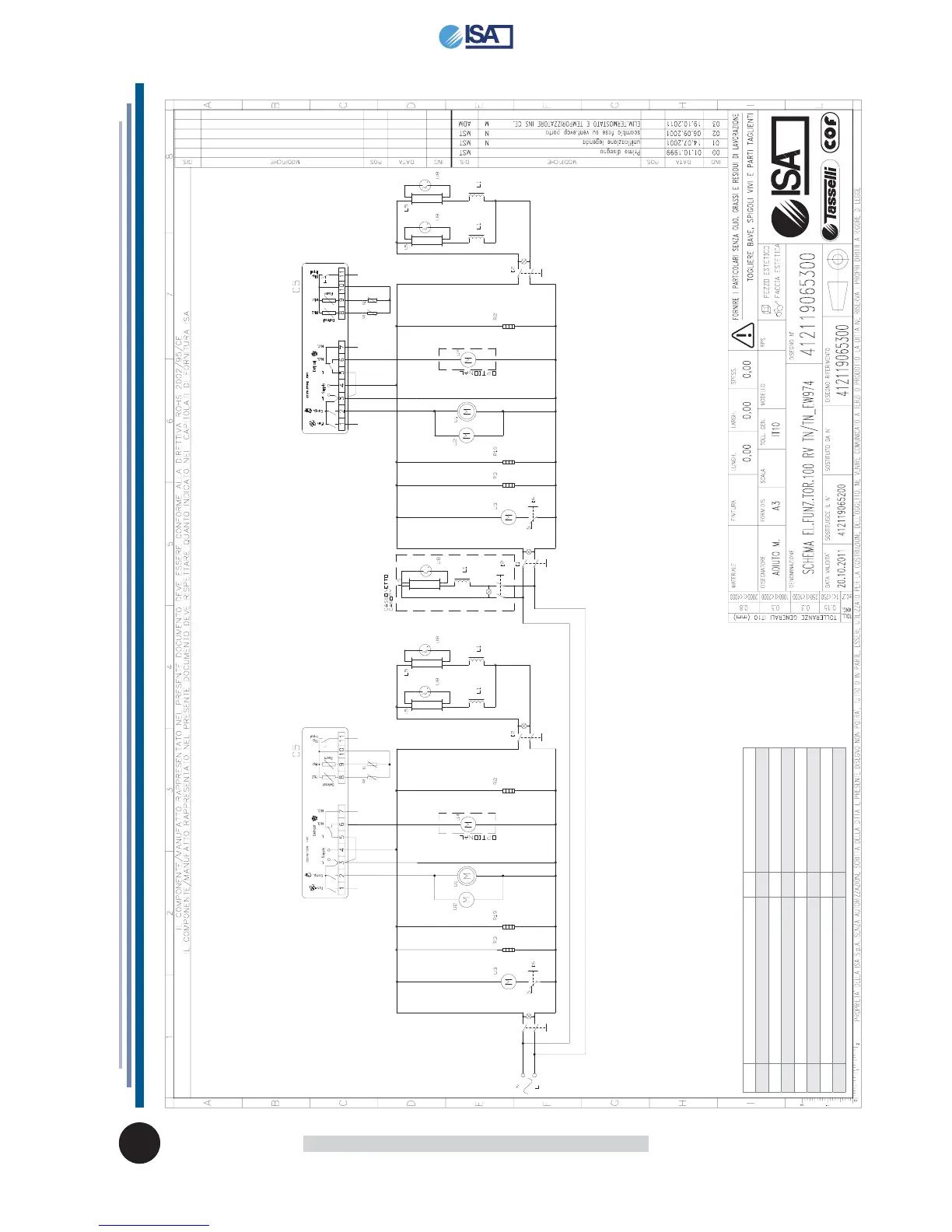

Attachment 12 - WIRING DIAGRAM - 412119065300

Tornado 50 RV TB Specifications

General

Brand	Tornado
Model	50 RV TB
Category	Freezer
Language	English
