Tornado 50 RV TB User Manual

44
TORNADO
USE AND MAINTENANCE MANUAL
428000393
237
EN
UPRIGHT DISPLAY CABINETS
B2 Defrosting solenoid valve S1 Temperature probe C5 Electronic control board S2 Defrosting probe I1 Cabinet switch T5 Trasformer I2 Light switch U1 Compressor I6 Microswitch U2 Condenser fan L1 Magnetic ballast U3 Evaporator fan L5 Fluorescent tube T8 U4 Cleaning fan R6 Heating resistor door frame U8 Starter R7 Heating resistor door glass

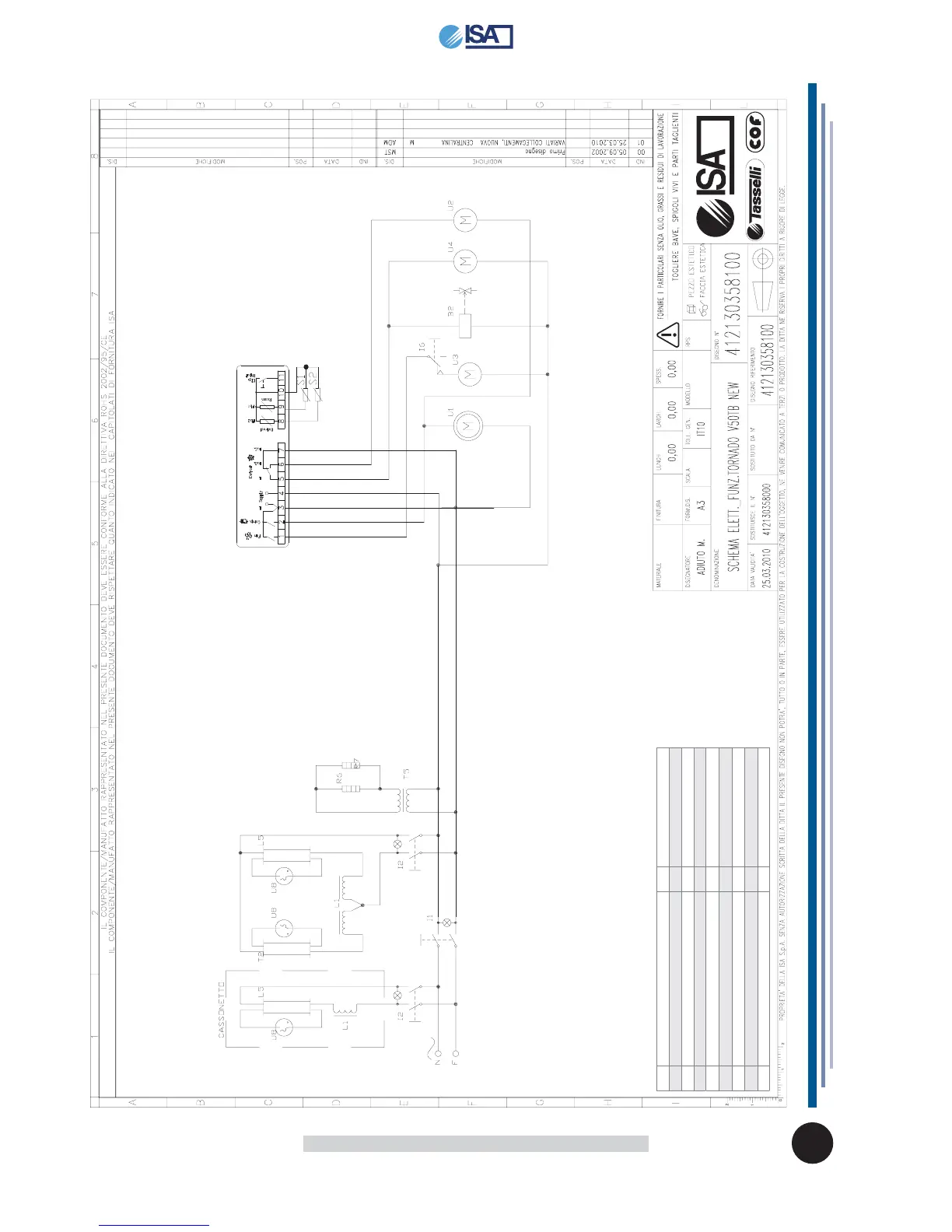

Attachment 9 - WIRING DIAGRAM - 412130358100
