Tornado 50 RV TB User Manual

41
EN
TORNADO
USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237
C5 Electronic control board R6 Door perimeter heating resistor I1 Cabinet switch S1 Temperature probe I2 Light switch U1 Compressor L1 Magnetic ballast U2 Condenser fan L4 Electronic ballast U4 Cleananig fan L5 Fluorescent tube T8 U8 Starter L6 Fluorescent tube T5

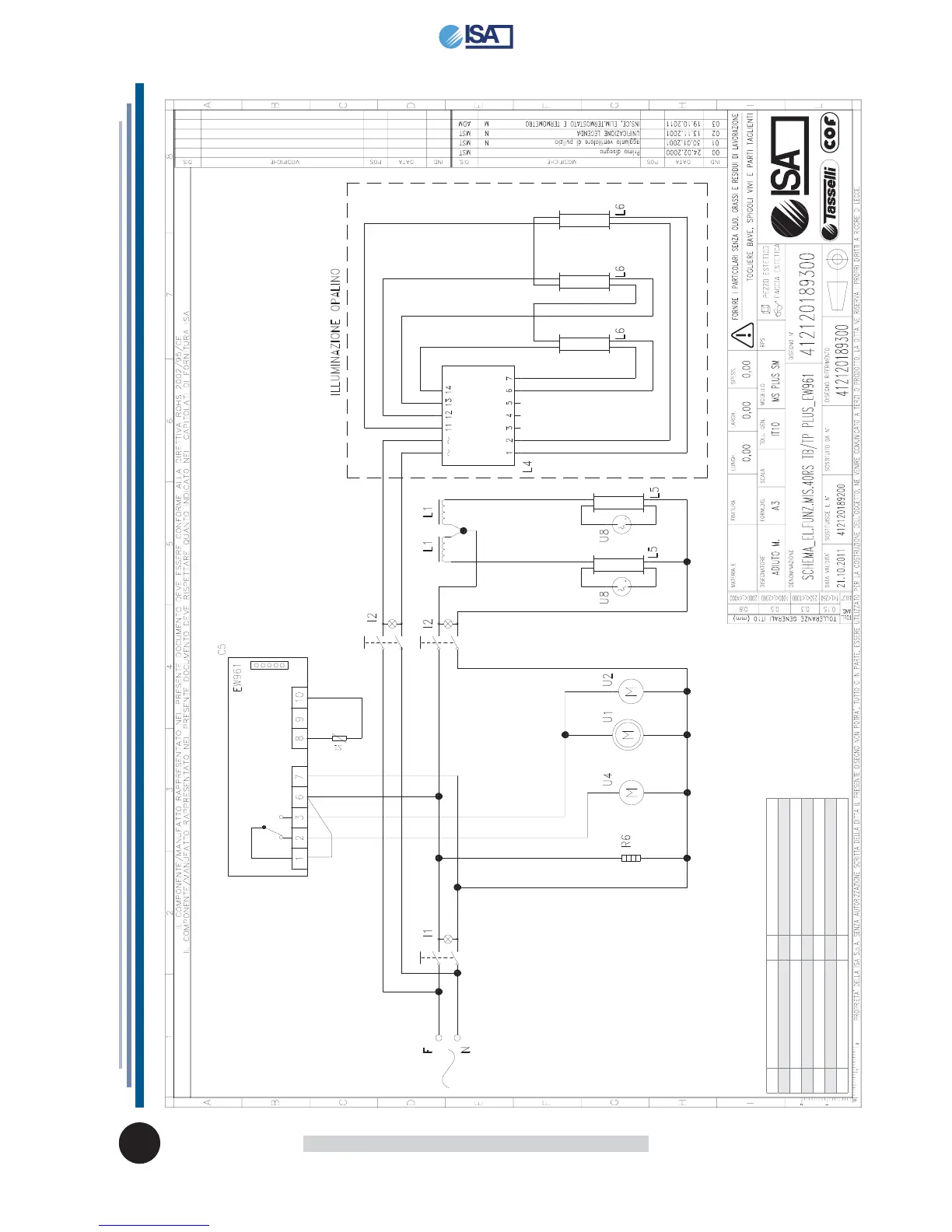

Attachment 6 - WIRING DIAGRAM - 412120189300

Tornado 50 RV TB Specifications

General

Brand	Tornado
Model	50 RV TB
Category	Freezer
Language	English
