Tornado 50 RV TB User Manual

45
EN
TORNADO
USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237

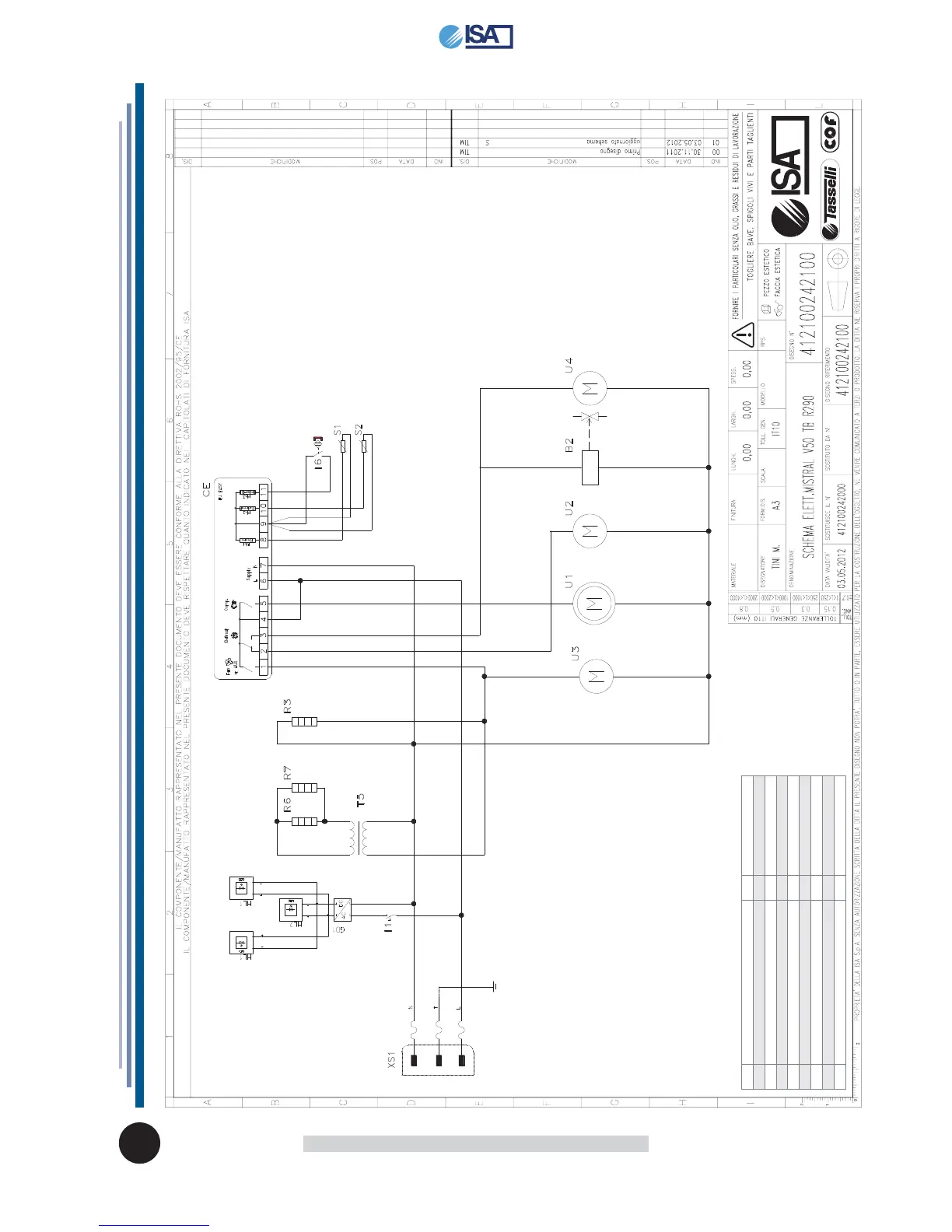

B2 Defrosting solenoid valve R7 Heating resistor glas CE Electronic control S1 Temperature probe GD1 Power supply LED S2 Evaporator probe HL1 LED lamp T5 Transformer HL2 LED lamp U1 Compressor I1 Lighting switch U2 Condenser fan I6 Door microswitch U3 Evaporator fan R3 Outside perimeter heating resistor U4 Cleaning fan R6 Cold store door frame heating resistor XS1 Plug power
Attachment 10 - WIRING DIAGRAM - 412100242100

Tornado 50 RV TB Specifications

General

Brand	Tornado
Model	50 RV TB
Category	Freezer
Language	English
