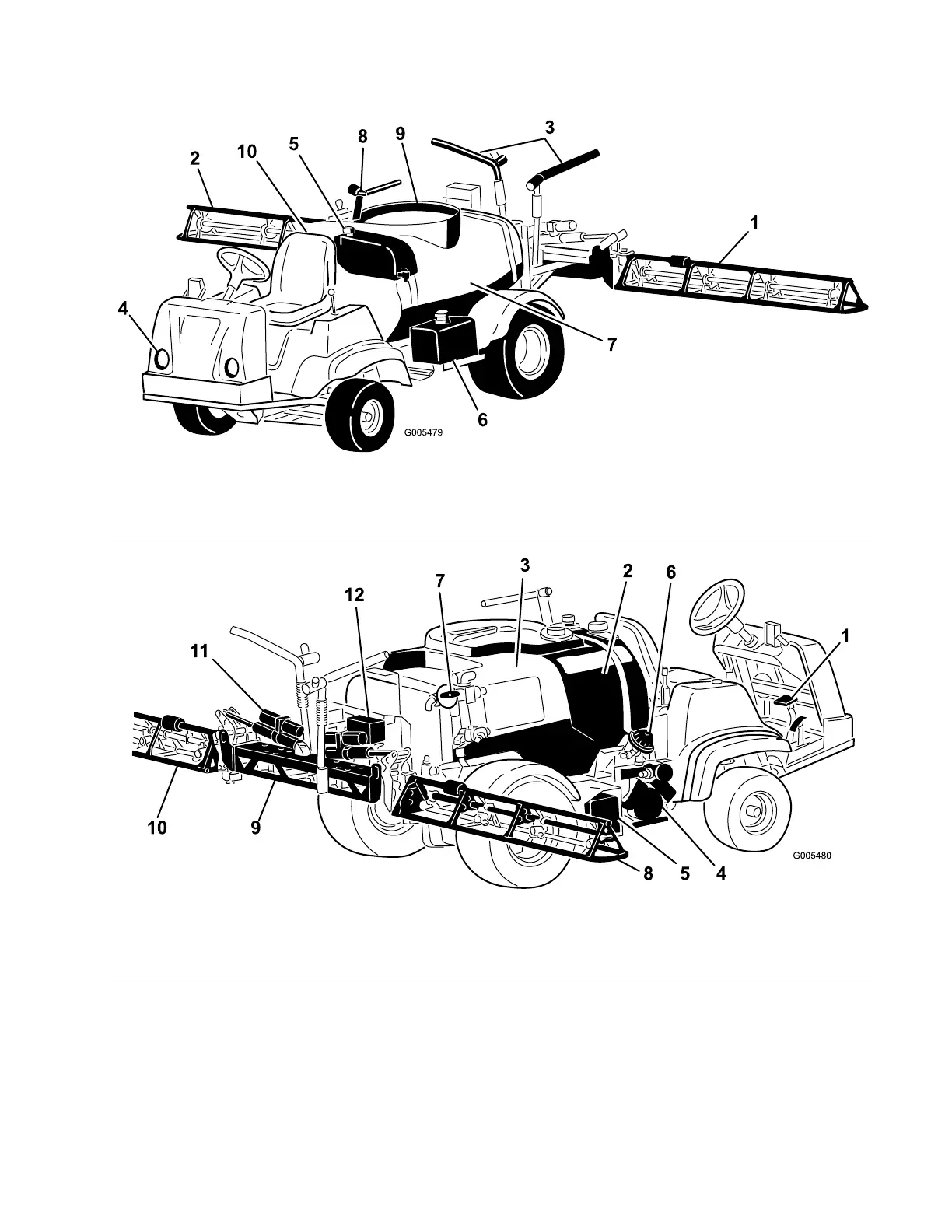

Product Overview
Figure 9
1. Left boom 4. Headlight 7. Chemical tank
10. Operator’s position
2. Right boom 5. Fresh water tank 8. Anti-Siphon Receptacle
3. Boom transport cable 6. Gas tank 9. Tank lid
Figure 10
1. Pedals
4. Pump
7. Agitation control valve 10. Left boom
2. Rinse tank
5. Battery
8. Right boom 11. Boom control cylinder
3. Chemical tank 6. Pump pressure dampener 9. Center boom 12. Valve cluster
17
