Toro GrandStand 74534TE User Manual

CoolingSystem
Maintenance
CleaningtheAirIntakeScreen
ServiceInterval:Beforeeachuseordaily
Beforeeachuseremoveanybuild-upofgrass,dirt
orotherdebrisfromthecylinderandcylinderhead
coolingns,airintakescreenonywheelend,and
carburetor-governorleversandlinkage.Thiswillhelp
insureadequatecoolingandcorrectenginespeedand
willreducethepossibilityofoverheatingandmechanical
damagetotheengine.
CleaningtheCoolingSystem
ServiceInterval:Every100hours—Checkandclean
enginecoolingnsandshrouds.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removetheairintakescreenandfanhousing
(
Figure62).
4.Cleanthedebrisandgrassfromtheengineparts.
5.Installtheairintakescreenandfanhousing
(
Figure62).
g017626
1
2
3
4
5

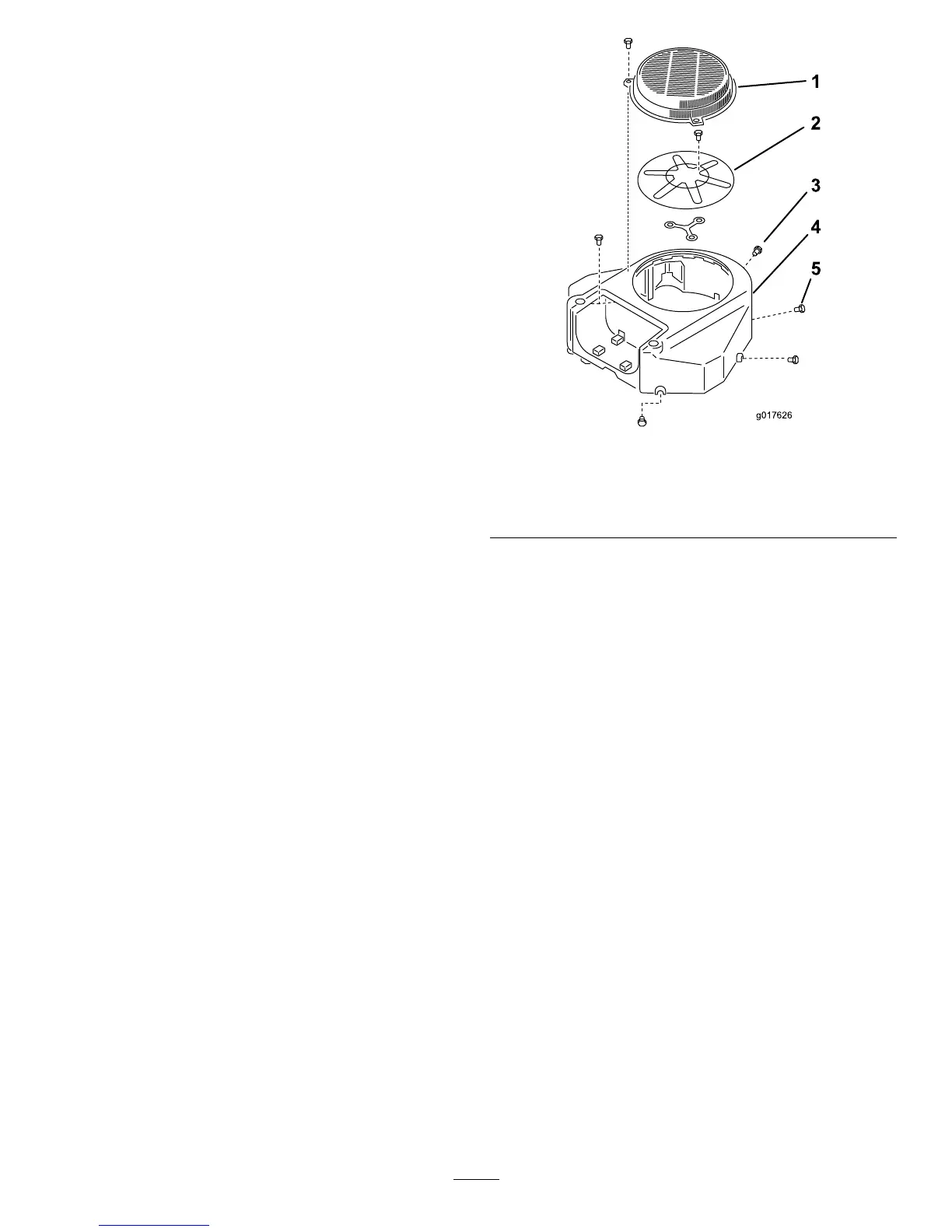

Figure62
1.Guard
4.Fanhousing
2.Engineairintakescreen
5.Screw
3.Bolt
45
