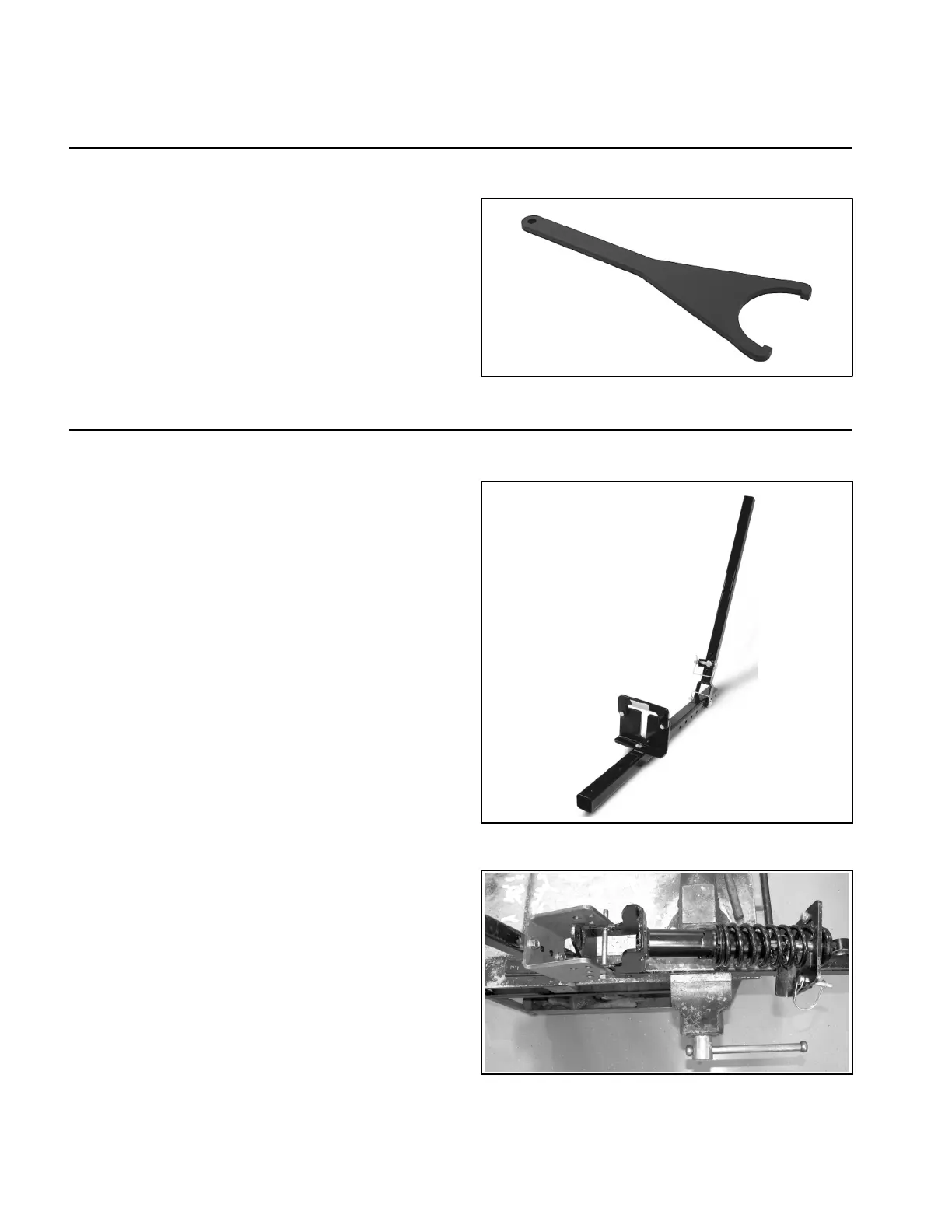

Page 6 -- 4 Workman GTX GasolineChassis
Special Tools
Order special tools from your Toro Distributor.
Spanner Wrench
Use spanner wrench to rotate collar on front suspension
strut and rear shock absorber. Collar rotation may be
necessary to accommodate installed accessories or
heavier vehicle loads. Make sure that vehicle is jacked
up off the ground to allow spring to be at full extension
before using spanner wrench.
Toro Part Number: TOR6010
Figure 1
Shock Spring Compressor
Use shock spring compressor to remove and install
spring from the rear shock absorber. Tool includes a
bracket to secure t he shock spring to the compressor
spring plate to prevent unexpected movement of the
shock spring during tool use. Secure compressor to
bench for stability during use.
NOTE: The shock spring compressor can be modified
for use with the Workman front suspension strut assem-
bly by fabricating a bracket that will allow the strut mount
to be secured to the spring compressor arm. An exam-
pleofthismodificationisshowninFigure3.
Toro Part Number: TOR6015
Figure 2
Figure 3
