Workman GTX GasolinePage 3 - 10Gasoline Engine
Exhaust System

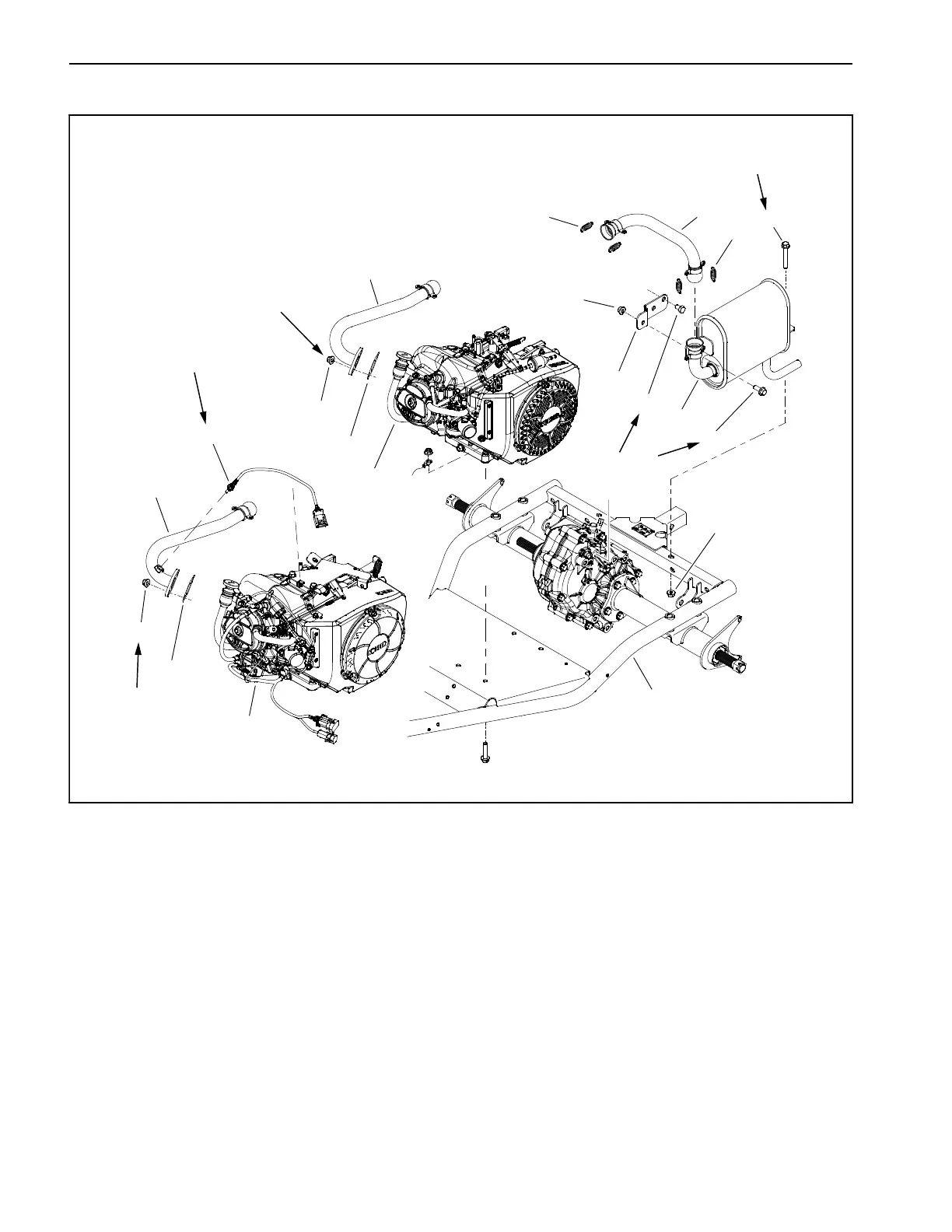

Figure 10
1. Engine (carbureted)
2. Engine (EFI)
3. Coupler spring (4 used)
4. Exhaust manifold (carbureted)
5. Exhaust manifold (EFI)
6. Muffler
7. Intermediate pipe
8. Flange head screw
9. Flange head screw
10. Muffler bracket
11. Flange nut (2 used)
12. Cap screw (2 used)
13. Swing arm
14. Flange nut (2 used)
15. Exhaust gasket
16. Oxygen Sensor (EFI)
G247348
11
11
12
13
14
14
15
15
16
1
2
3
3
4
5
6
7
8
9
10
37 to 44 N- m
(27to33ft-lb)
22 to 27 N- m
(16 to 20 ft- lb)
17 to 21 N- m
(12.6 to 15.4 ft- lb)
22 to 27 N- m
(16to20ft-lb)
37 to 44 N- m
(27to33ft-lb)
