Workman GTX Gasoline Gasoline EnginePage 3 - 9
Removal (Fig. 8)
1. Park machine on a level surface, stop the engine, en-
gage parking brake and remove the key from the key
switch.
2. Raise cargo bed and support with prop rod.
3. Remove rear frame panel cover to allow easier ac-
cess to air cleaner (see Rear Frame Panel Cover in the
General Information section of this chapter).
CAUTION
The engine and exhaust exhaust may be hot. To
avoid possible burns, allow engine and exhaust
system to cool before working in the engine area.
4. Remove air cleaner components as needed using
Figures 8 and 9 as guides.
Installation (Fig. 8)
IMPORTANT: Any leaks in the air filter system will
cause serious engine damage. Make sure that all air
cleaner components are in good condition and are
properly secured during assembly of air cleaner
system.
1. Assemble air cleaner system using Figures 8 and 9
as guides. The air inlet hood (item 5 in Fig. 8) should be
positioned straight upward. The vacuator valve on the
air cleaner cover should be positioned downward.
2. After all air cleaner components have been installed,
install rear frame panel cover to vehicle. Lower and se-
cure the cargo bed.

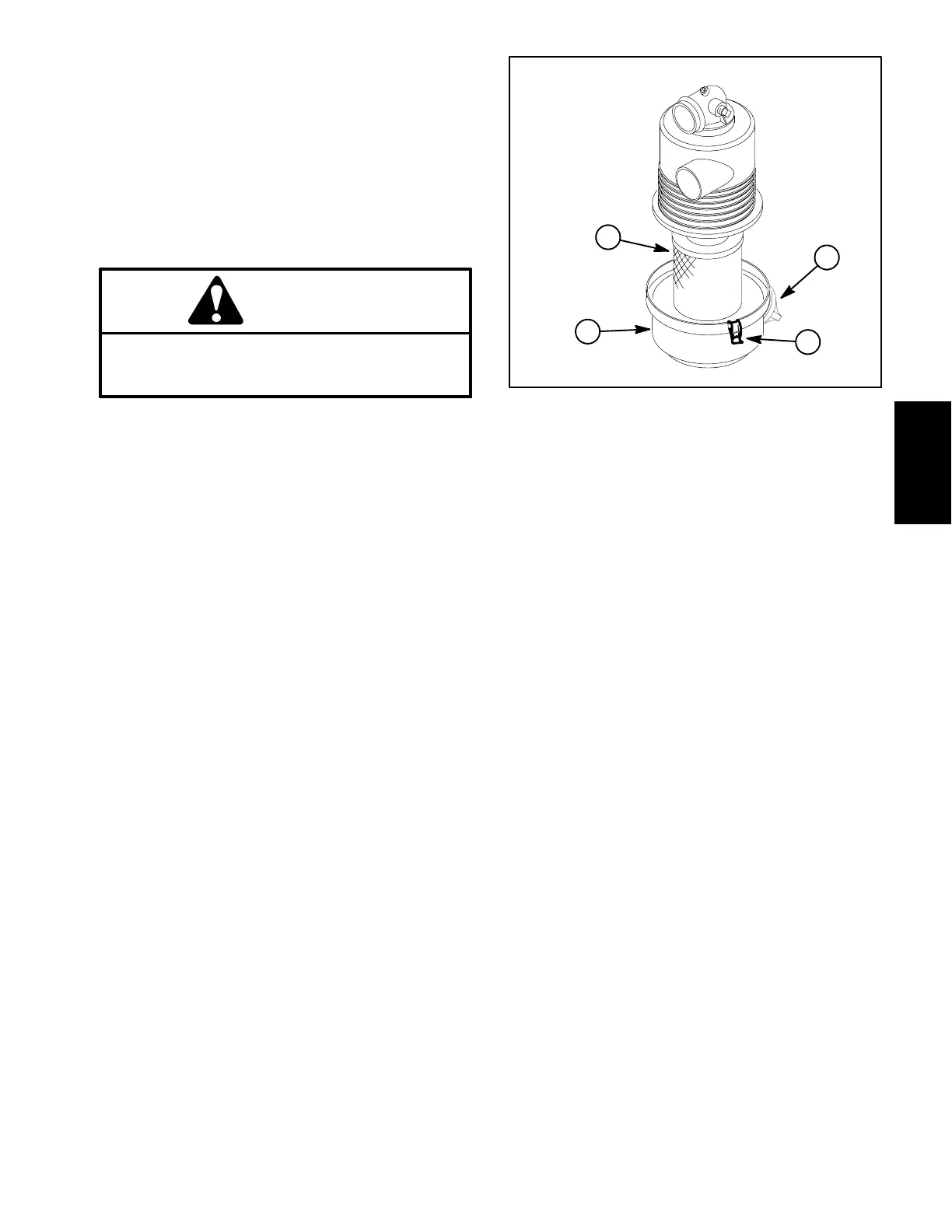

Figure 9
1. Air cleaner latches
2. Cover
3. Filter element
4. Vacuator valve
1
2
3
4
Gasoline
Engine
