Workman GTX GasolinePage 3 - 14Gasoline Engine

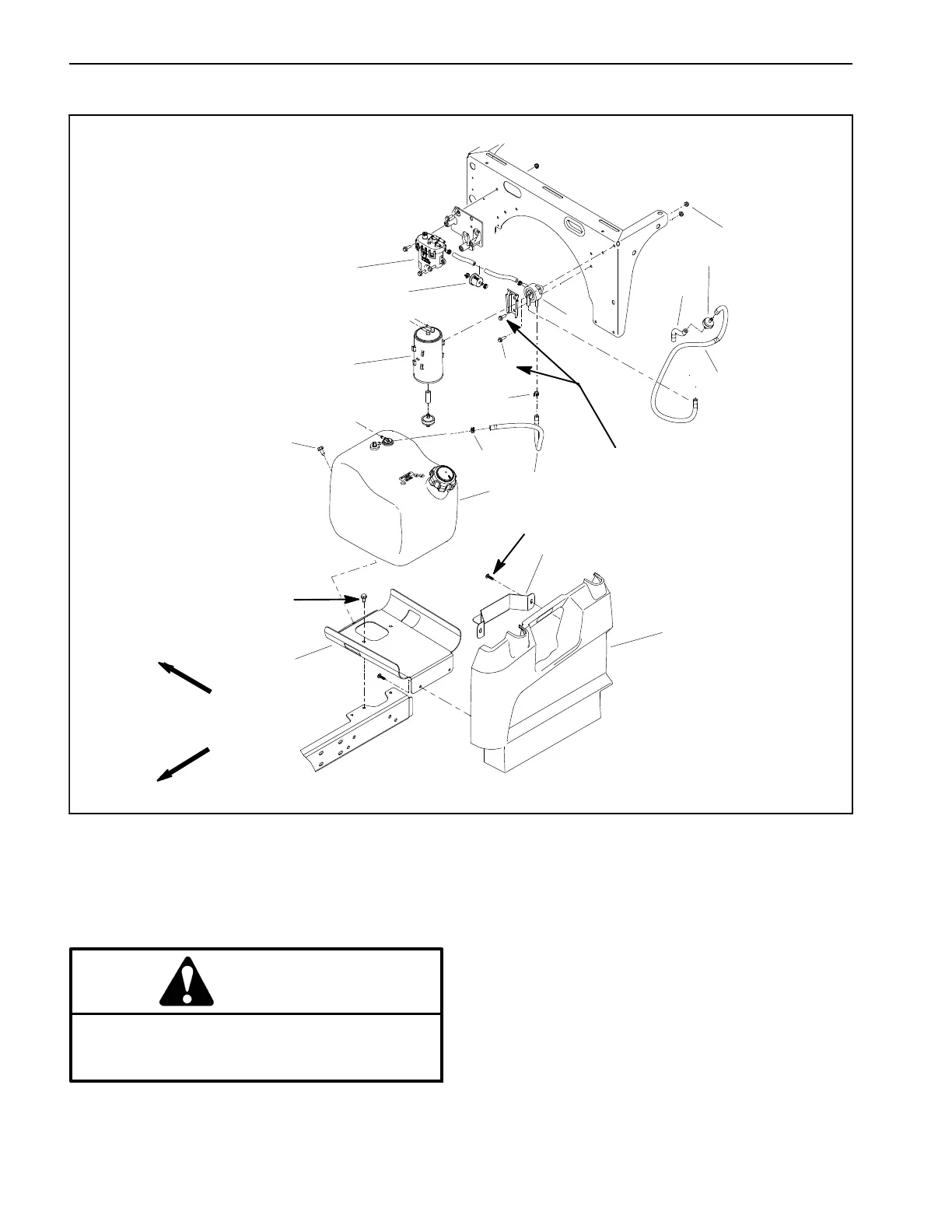

Fuel Tank and Fuel Pumps
1. Fuel tank
2. Washer head screw
3. Fuel tank mount
4. Fuel tank bracket
5. LH seat base side
6. Fuel supply hose
7. Hose clamp (2 used)
8. Pulse pump
9. W asher head screw (2 used)
10. Flange nut (2 used)
11. Carbon canister (EVAP system)
12. Pulse hose
13. Pulse line filter
14. Pulse hose (to engine cover)
15. Electric fuel pump
(fuel injected engines)
16. Fuel filter (fuel injected engines)
Figure 14
FRONT
RIGHT
2
3
6
8
9
10
1
5
7
12
13
4
7
11
14
90 to 110 in- lb
(10.2 to 12.4 N- m)
16
15
11.7 to 14.3 ft- lb
(16to19N-m)
18 to 22 in- lb
(2 to 2.5 N- m)
CAUTION
Read safety precautions for handling gasoline
before working on the fuel system (see Safety In-
structions in Chapter 1 - Safet y).
