Product Overview

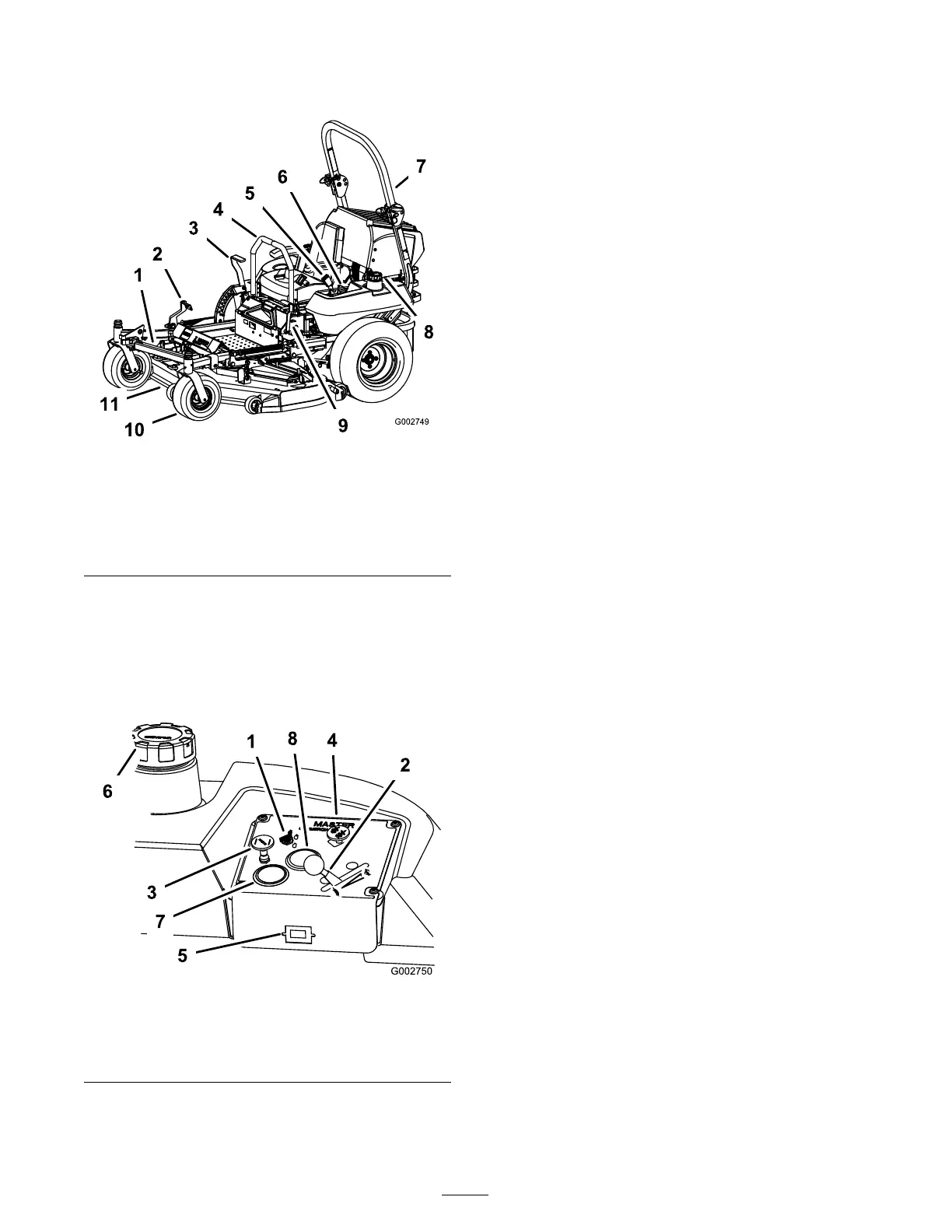

Figure 3
1. Z Stand®
7. Roll bar
2. Lift assist lever
8. Gas cap
3. Height-of-cut lever 9. Parking brake lever
4. Motion control lever 10. Front caster wheel
5. Seat belt 11. Mower deck
6. Controls
Controls
Become familiar with all the controls before y ou
star t the engine and operate the mac hine ( Figure 3
and Figure 4 ).
Figure 4
1. Ignition switch
5. Hour meter
2. Throttle control
6. Gas cap
3. Choke 7. Volt meter
4. Power take off (PTO)
8. Temperature gauge
Hour Meter
T he hour meter records the n umber of hours the
engine has operated. It operates when the engine
is r unning . Use these times for sc heduling regular
maintenance ( Figure 4 ).
Unlatc h the seat and lift it forw ard to view the
hour meter .
Temperature Gauge
T he temperature g aug e register the temperature of
the coolant in the cooling system.
Volt Meter
T he v olt meter registers the output of the c harging
system.
