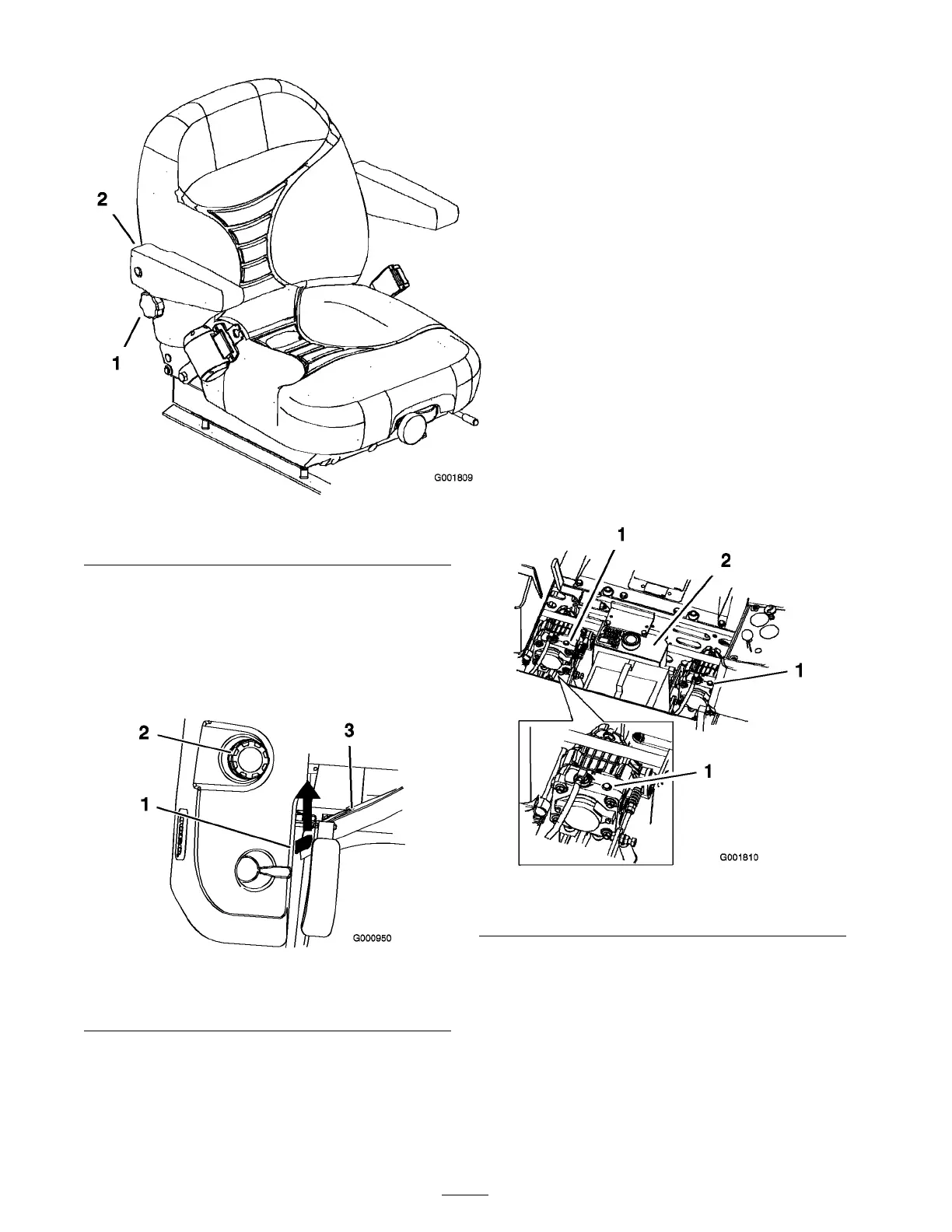

Figure 27
1. Back rest knob 2. Right-side arm rest
Unlatching the Seat
Push the seat latc h rearw ard to unlatc h the seat.
T his will allo w access to the mac hine under the
seat ( Figure 28 ).
Figure 28
1. Seat latch
3. Seat
2. Fuel cap
Pushing the Machine by
Hand
Important: Al w ays push the machine
by hand. Nev er to w the machine because
h y draulic dama ge may occur .
Pushing the Machine
1. Diseng ag e the po w er tak e off (PTO) and
tur n the ignition k ey to off . Mo v e the lev ers
to neutral loc k ed position and apply parking
brak e . R emo v e the k ey .
2. R otate the b y-pass v alv es countercloc kwise
1 tur n to push. T his allo ws h y draulic fluid to
b y-pass the pump enabling the wheels to tur n
( Figure 29 ).
Important: Do not r otate by-pass v alv es
mor e than 1 tur n. T his pr ev ents v alv es
fr om coming out of the body and causing
fluid to r un out.
Figure 29
1. By-pass valve 2. Hydraulic tank
3. Diseng ag e the parking brak e before pushing .
Changing to Machine Operation
R otate the b y-pass v alv es cloc kwise 1 tur n to
operate mac hine ( Figure 29 ).
Note: Do not o v er tighten the b y-pass v alv es .
T he mac hine will not dri v e unless b y-pass v alv es
are tur ned in.
