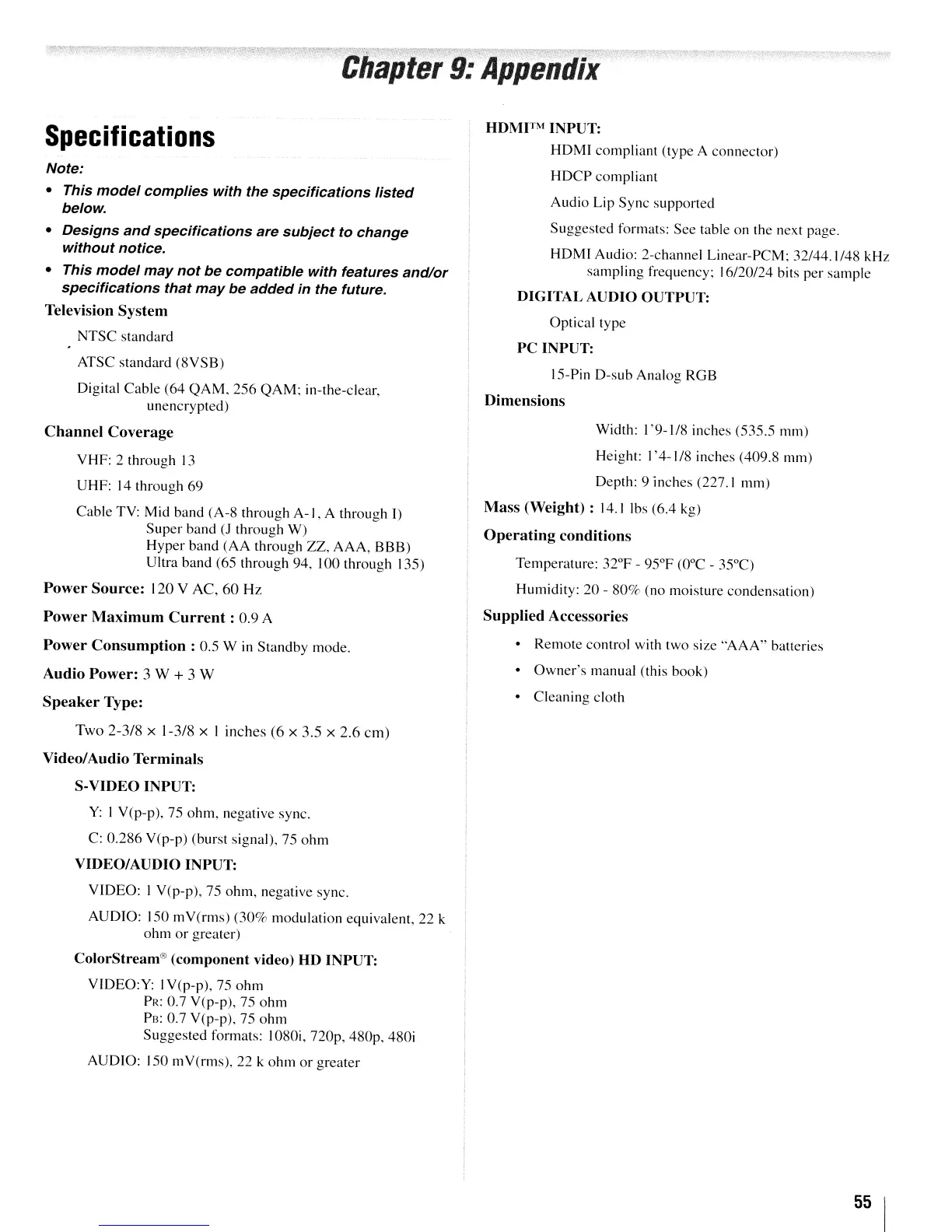

Chapter
9:
Appendix
Specifications
Note:
• This
model
complies
with
the
specifications
listed
below.
•
Designs
and
specifications
are
subject
to
change
without
notice.
• This
model
may
not
be
compatible
with
features
and/or
specifications
that
may
be
added
in
the future.
Television
System
NTSC standard
ATSC standard (8VSB)
Digital Cable (64 QAM, 256 QAM; in-the-c1ear,
unencrypted)
Channel
Coverage
VHF: 2 through
13
UHF:
14
through 69
Cable
TV:
Mid band (A-8 through A-I, A through ])
Super band
(J
through W)
Hyper band (AA through ZZ, AAA, BBB)
Ultra band (65 through 94, 100 through 135)
Power
Source:
120 V AC,
60
Hz
Power
Maximum
Current:
0.9 A
Power
Consumption:
0.5 W
in
Standby mode.
Audio
Power:
3 W + 3 W
Speaker
Type:
Two 2-3/8 x 1-3/8 x I inches (6 x 3.5 x
2.6
cm)
Video/Audio
Terminals
S-
VIDEO
INPUT:
Y:
I V(p-p).
75
ohm, negative sync.
C:
0.286 V(p-p) (burst signal), 75 ohm
VIDEO/AUDIO INPUT:
VIDEO: I V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation equivalent, 22 k
ohm or greater)
ColorStream®
(component
video) HD INPUT:
VIDEO:Y: IV(p-p), 75 ohm
PR:
0.7 V(p-p), 75 ohm
PB:
0.7 V(p-p).
75
ohm
Suggested formats: 1080i,
nop,
480p, 480i
AUDIO: 150 mV(rms), 22 k ohm or greater
HDMJTM
INPUT:
HOM] compliant (type A connector)
HDCP compliant
Audio Lip Sync supported
Suggested formats: See table
on
the next page.
HDM] Audio: 2-channel Linear-PCM; 32/44.1/48 kHz
sampling frequency; 16/20/24 bits per sample
DIGITAL
AUDIO
OUTPUT:
Optical type
PC
INPUT:
15-Pin D-sub Analog RGB
Dimensions
Width: 1'9-1/8 inches (535.5 mm)
Height: I'4-1/8 inches (409.8 mm)
Depth: 9 inches (227.1 mm)
Mass
(Weight)
:
14.1
Ibs
(6.4 kg)
Operating
conditions
Temperature: 32°F - 95°F
(O°C
- 35°C)
Humidity: 20 - 80% (no moisture condensation)
Supplied
Accessories
• Remote control with two size "AAA" batteries
• Owner's manual (this book)
• Cleaning cloth
