NOTE
When applying oil to the flare surface, be sure to use oil designated by the manufacturer.
If any other oil is used, the lubricating oils may deteriorate and cause the compressor to burn out.
43˚to 45˚
45˚to 46˚
A B
C

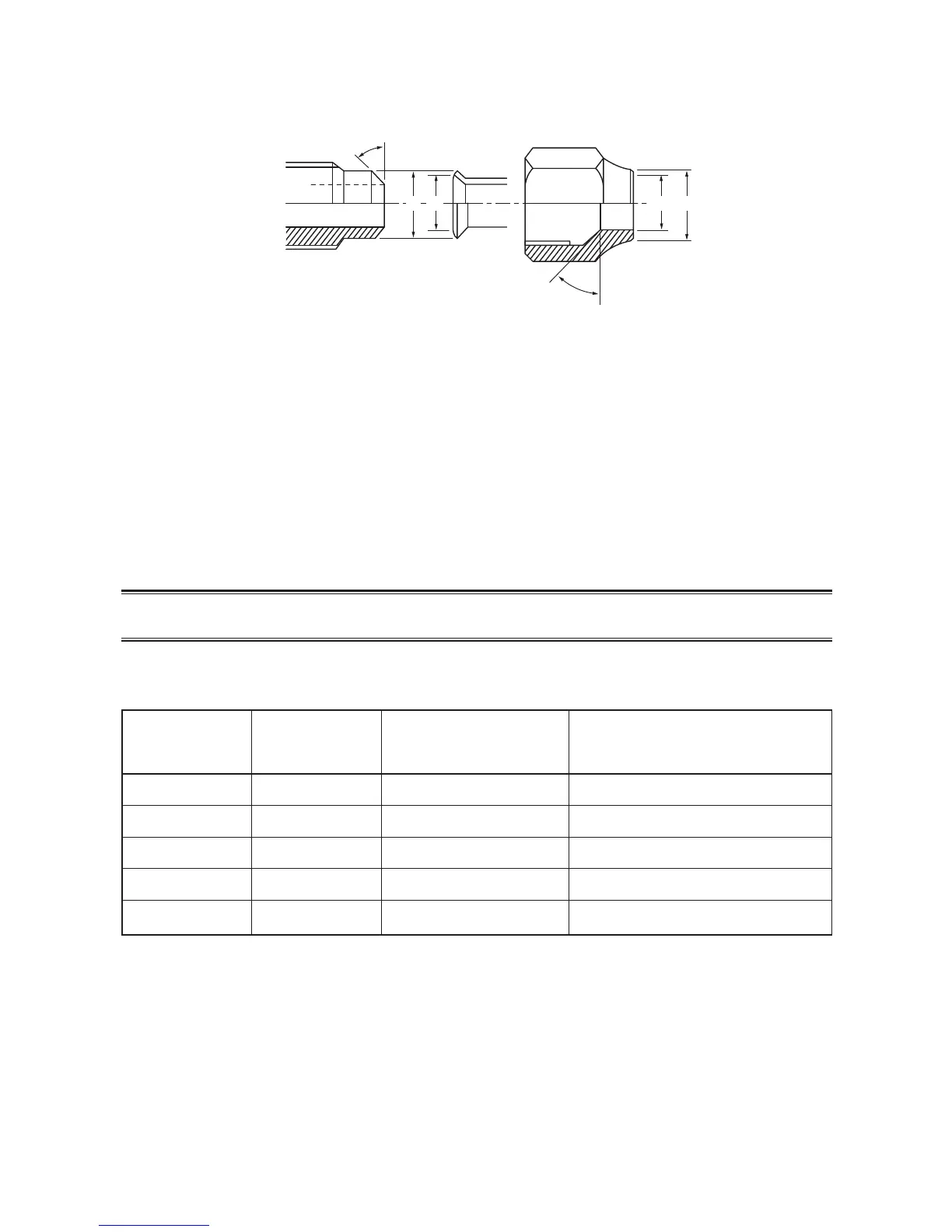

Fig. 6-2-2 Relations between flare nut and flare seal surface
Table 6-2-6 Tightening torque of flare foro
Nominal
diameter
1/4
3/8
1/2
5/8
3/4
Outer
diameter (mm)
6.4
9.5
12.7
15.9
19.1
Tightening torque
N•m (kgf•m)
14 to 18 (1.4 to 1.8)
33 to 42 (3.3 to 4.2)
50 to 62 (5.0 to 6.2)
100 to 120 (10.0 to 12.0)
Tightening torque of torque
wrenches available on the
market N•m (kgf•m)
16 (1.6), 18 (1.8)
42 (4.2)
55 (5.5)
65 (6.5)
——
68 to 82 (6.8 to 8.2)
R410A or R32 [Reference values]
2. Flare Connecting Procedures and Precautions
a) Make sure that the flare and union portions do not have any scar or dust, etc.
b) Correctly align the processed flare surface with the union axis.
c) Tighten the flare with designated torque by means of a torque wrench.
The tightening torque for R410A or R32 is the same as that for conventional R22.
Incidentally, when the torque is weak, the gas leakage may occur.
When it is strong, the flare nut may crack and may be made non-removable.
When choosing the tightening torque, comply with values designated by manufacturers.
Table 6-2-6 shows reference values.
