11. REPLACEMENT OF THE SERVICE P.C. BOARD(MCC-1646)
! WARNING
Don’t open the inverter cover before 1 minute after power has been turned off because an electric shock may be occurred.

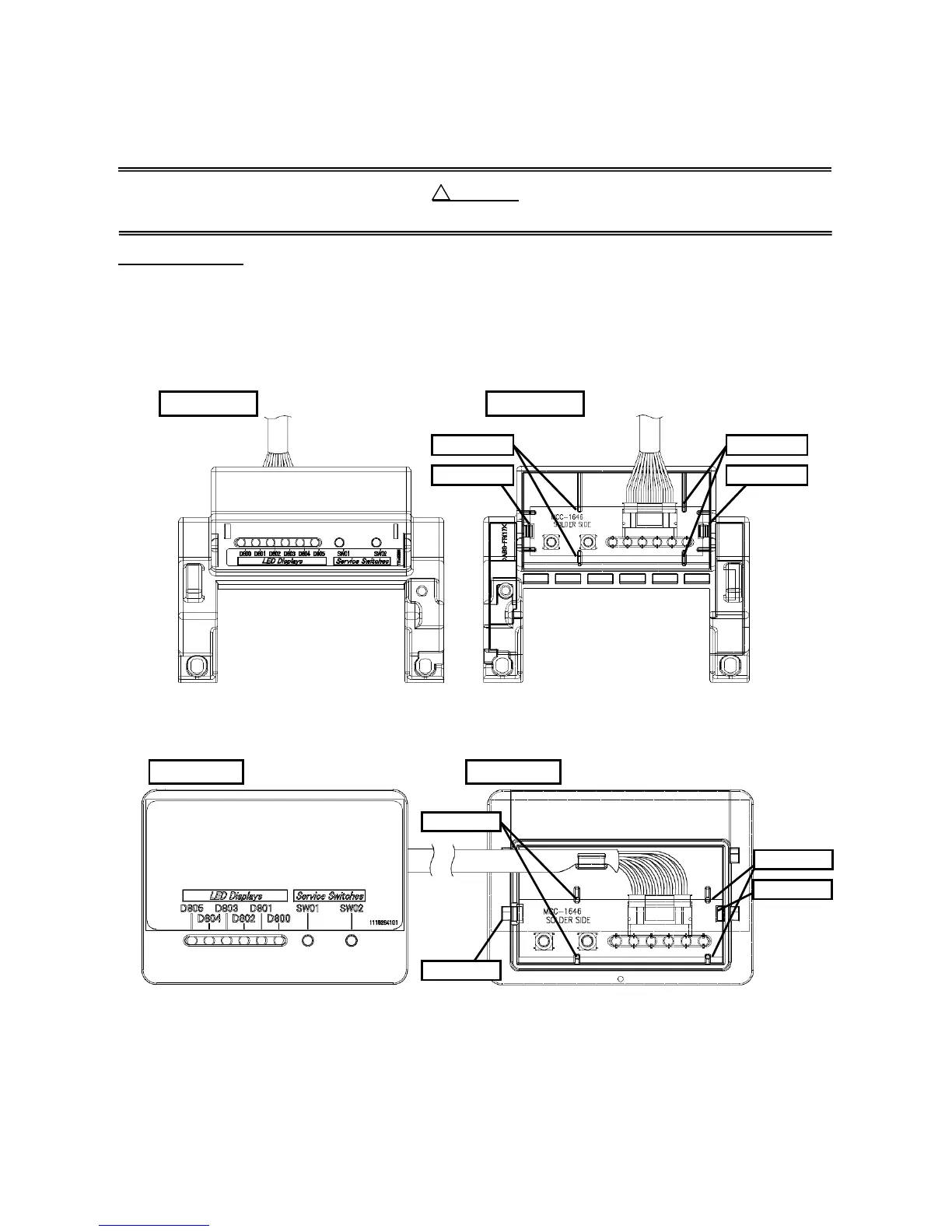

Assembly steps:
RAV-GM561AT

P

, RAV-GM801AT

P

RAV-GM1101AT

P

, RAV-GM1401AT

P

Guide④
Hook③
Guide②
Hook①
Front side Back side
Front side Back side
Guide④
Hook③
Guide②
Hook①
1 LED side of P.C.Board (MCC-1646) shall be inserted to hook① along the guide② of mold.
2 Switch side of P.C.Board (MCC-1646) shall be pressed to hook③ along guide④ of mold.
3 After assembly, push SW01 and SW02 to check that switches can be click (sound or feeling of click).
