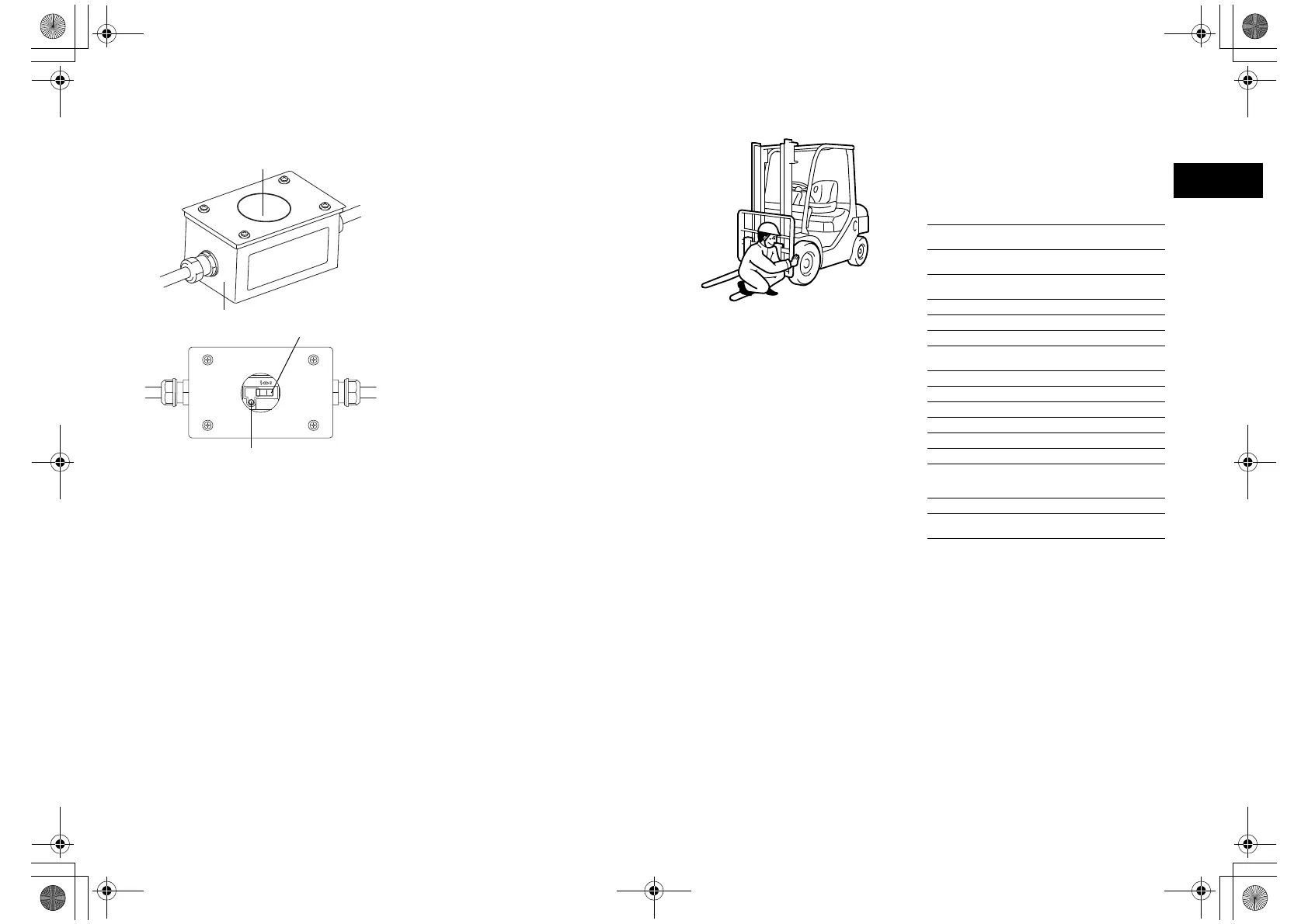

(1) Rubber cover
(2) Cable case
(3) Switch
(4) Test button
Handling the DPF AC cable with
earth leakage breaker
(Option)
1. After plugging into an electrical source,
remove the rubber cover from the cable
case and turn on the earth leakage breaker
(hereafter “the switch”). The breaker
needs to be turned on at the beginning
only. There is no need to turn the switch
on or off for regeneration. Replace the
rubber cover. Do not dismantle the case
when replacing back the rubber cover.
2. Check the switch operation regularly
(about once per month) by the method
described below:
(1) Remove the rubber cover from the cable
case.
(2) Start the regeneration process.
(3) After the regeneration process begins,
swiftly press the grey switch test button
(within 10 minutes).
(4) Check that the switch has turned off. At
this time, the display’s alarm indicator
lamp will start blinking and the buzzer
will continue to ring. After one minute
elapses, the alarm indicator lamp will
turn off, the regeneration indicator lamp
will start blinking, and the regeneration
process will stop. Then, when the buzzer
stops, all indicator lamps will turn off.
(This completes the check operation)
(5) Turn the switch on and replace the rubber
cover.
(6) If you wish to continue with the regenera-
tion process, press the regeneration
switch to start the process.
If you wish to start the operation, discon-
nect the plug and start up the engine.
3. If the switch will not turn off, there is a
possibility of switch malfunction.
Request an inspection from your Toyota
dealer.
Pre-operation check
Pre-operation checks and weekly inspections
are the responsibility of the Toyota industrial
vehicle user.
Be sure to perform a pre-operation check
before beginning work to ensure safety.
Walk around inspection
Vehicle uprightness
Does the vehicle lean to one side or the other?
It so, check for a tire puncture or a problem
with the undercarriage.
Item Inspection
Previously detected
malfunctions
Correct.
Exterior Vehicle body, oil leakage, water leakage,
loose parts, exterior damage.
Wheels Tire pressure, wear or damage, rims hub
nuts.
Lamps Lamp condition, damaged lamps.
Hydraulic oil Oil level, contamination, consistency.
Radiator Coolant level, antifreeze requirement.
Engine Oil level, contamination, consistency,
noise, exhaust.
Brake pedal Pedal play, braking effect.
Brake fluid Fluid level.
Parking brake Operating force, braking effect.
Steering wheel Looseness, play, vibration, veering.
Horn Sound.
Instruments Functioning.
Load handling
system
Parts, oil leakage, cracking, looseness.
Make certain that the SAS is function-
ing.
Fuel Amount.
Operator restraint Cut, frays and deck latch OK, seat belt &
buckle
