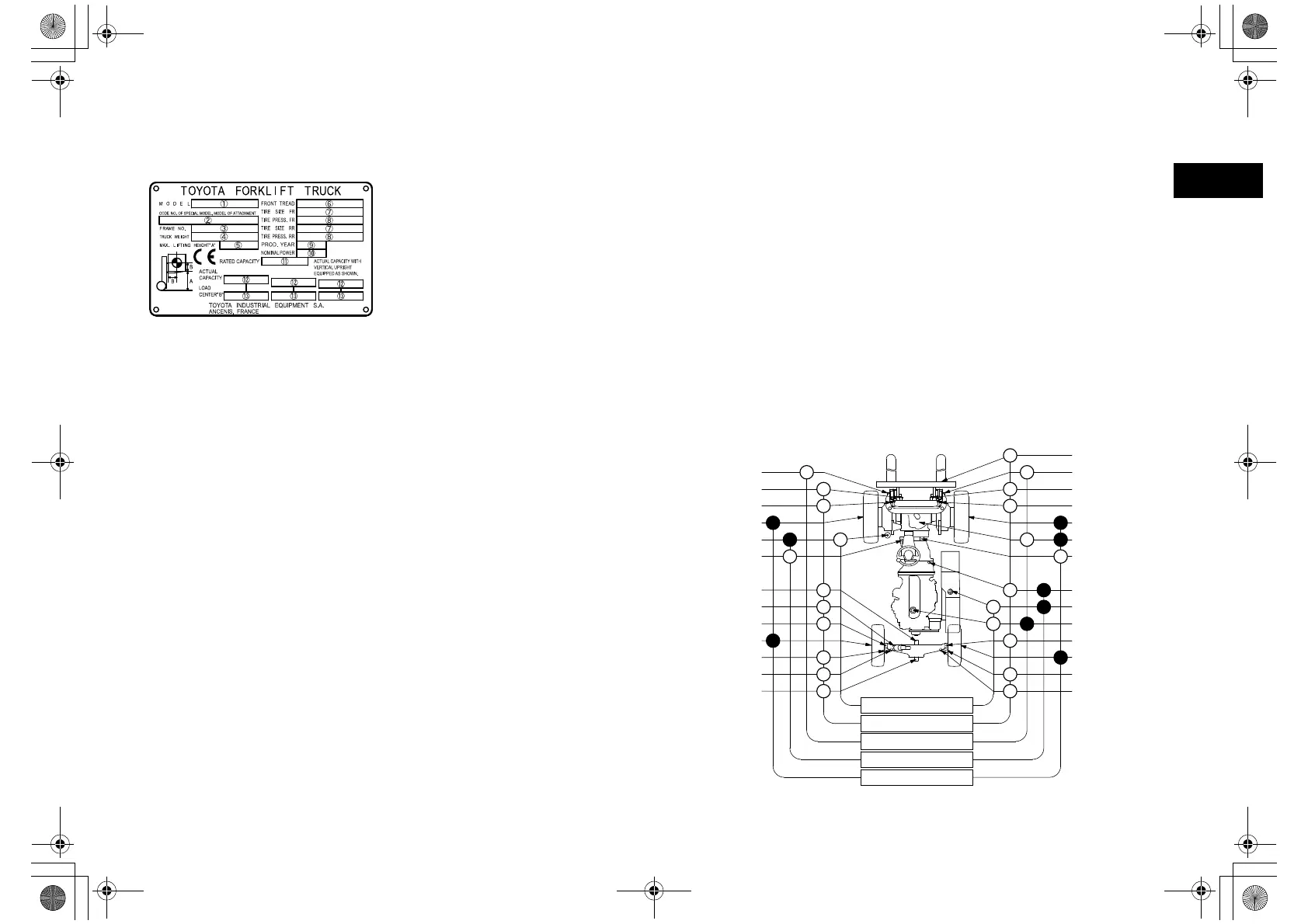

HOW TO READ THE NAME PLATE
The load capacity is engraved on the name
plate.
Make sure of the load center and capacity
before starting the operation.
1. Vehicle type
2. Special vehicle type, Attachment type
3. Frame No.
4. Vehicle weight
5. Mast lifting height
6. Front tread
7. Tire size
8. Air pressure
9. The year of manufacture
10. Rated hour power
11. Rated capacity
12. Load capacity
13. Load center
LUBRICATION CHART
1. Chain
2. Differential gear
3. Front wheel bearing
4. Brake master cylinder
5. Torque converter case
6. Rear wheel bearing
7. Steering knuckle king pin
8. Oil tank
9. Engine crank case
10. Rear axle beam front pin
11. Rear axle beam rear pin
12. Tilt steering locking mechanism
13. Mast support bushing
14. Tilt cylinder front pin
15. Propeller shaft
16. Swing lock cylinder
17. Tie rod end pin
18. Rear axle cylinder end pin
19. Side shifter (Option)
i) Inspect every 8 hours (daily)
ii) Inspect every 40 hours (weekly)
iii) Inspect every 250 hours (6 weeks)
iv) Inspect every 1000 hours (6 monthly)
v) Inspect every 2000 hours (annually)
:Inspect and service
:Replase
A)MP grease
B)Engine oil
C)Hypoid gear oil
D)Hydraulic oil
E)ATF GM Dexron II
F)Brake fluid
G)Molybdenum disulfide grease
Note:
In case of the hard operating condition, service
interval of 170 hours or 1 month may be recom-
mended.
GG
B
G
A
F F
A
A
G
G
A
A
A
A
G
B
G
A
CC
E
D
B
E
D
B
A
A
A
A
A
14
14
II
I
III
IV
V
1
13
3
4
12
10
16
7
6
17
18
11
1
13
3
2
15
5
8
9
7
6
17
18
19
