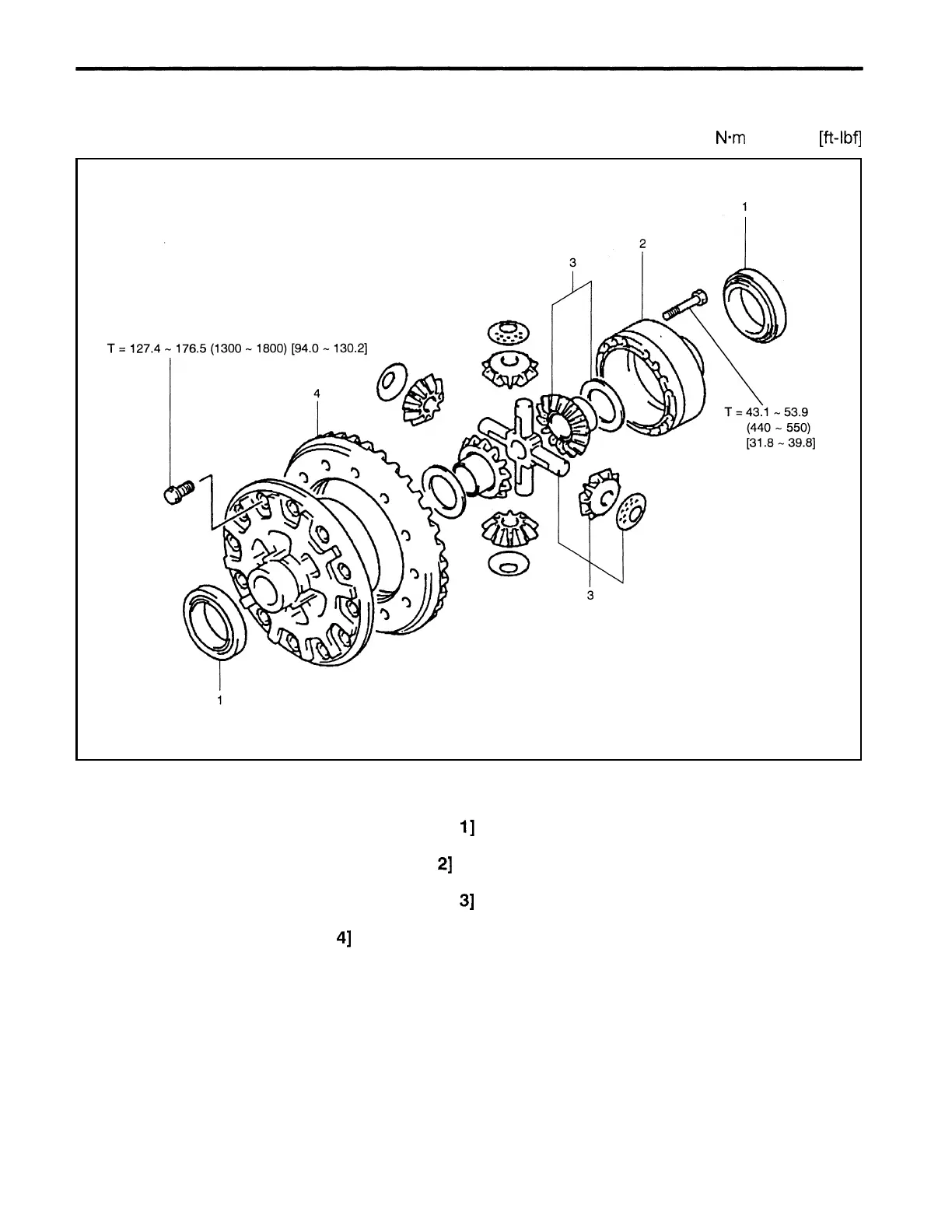

DIFFERENTIAL CASE ASSY
DISASSEMBLY INSPECTION - REASSEMBLY
T = N-m (kgf - cm) [ft-lbfl
Disassembly Procedure
1
Remove the differential case bearings. [Point I]
2 Remove the differential upper case. [Point 21
3 Remove the side gear and pinion gear. [Point 31
4
Remove the ring gear. [Point 41
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
