Shim

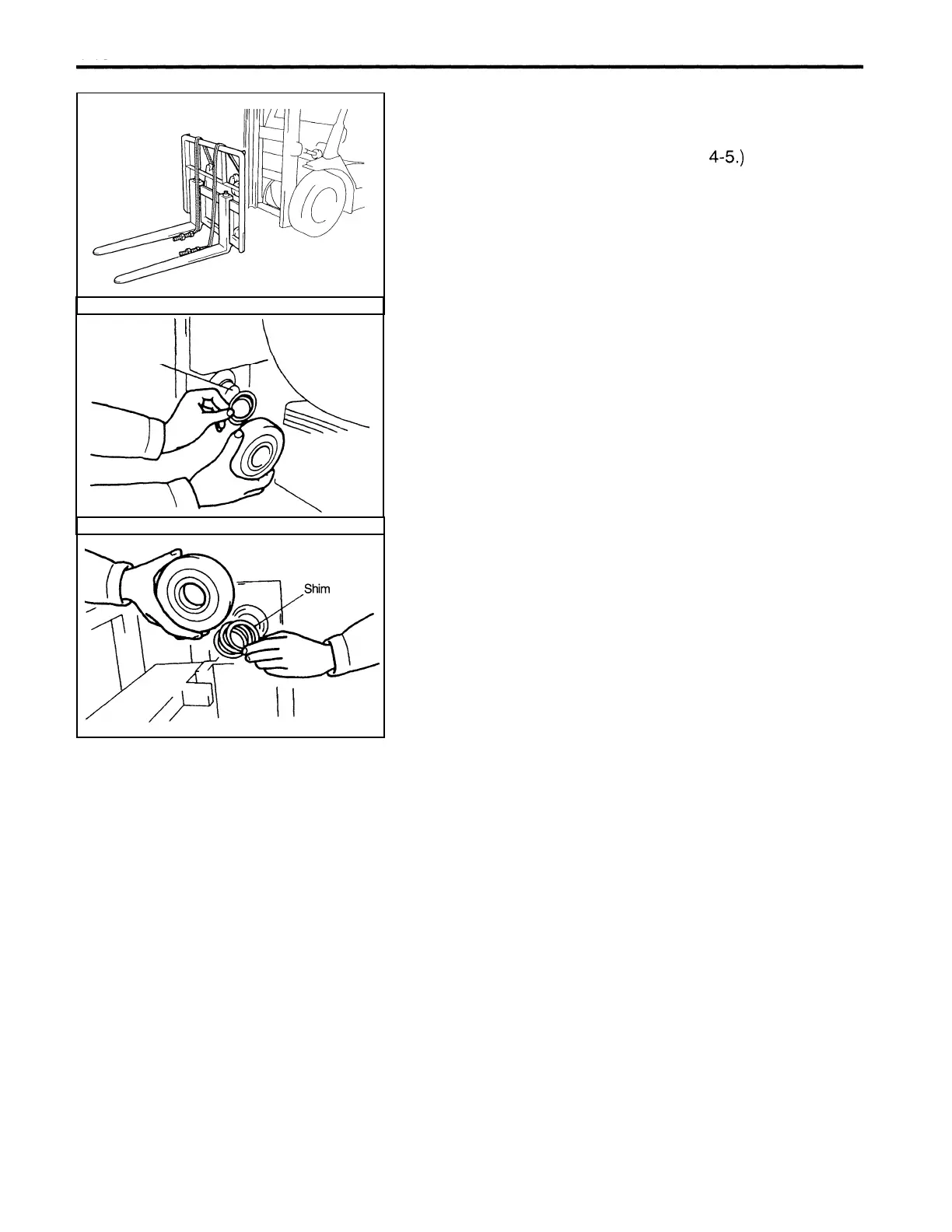

MAST ROLLER REMOVAL - INSTALLATION
1. Remove the lift bracket. (See steps 1 to 4 of the mast
ASSY removal procedure on page
4-5.)
2. Jack up the vehicle, and support tires with wooden blocks.
Also lock the front and rear tires from rotation.
3. Remove the lift cylinders. (See page 5 - 1 1 .)
4. Remove mast rollers.
(1) Remove wooden blocks under the inner mast, and
lower the hoisted inner mast slowly until mast rollers
appear.
(2) Support the bottom of the inner mast with wooden
blocks.
(3) Remove the inner mast rollers and shims.
(4) Remove the outer mast rollers and shims.
5. The installation procedure is the reverse of the removal
procedure.
