STEERING KNUCKLE
REMOVAL
-
INSTALLATION
T
=
N-m (kgf
-
cm) [ft-lbfl

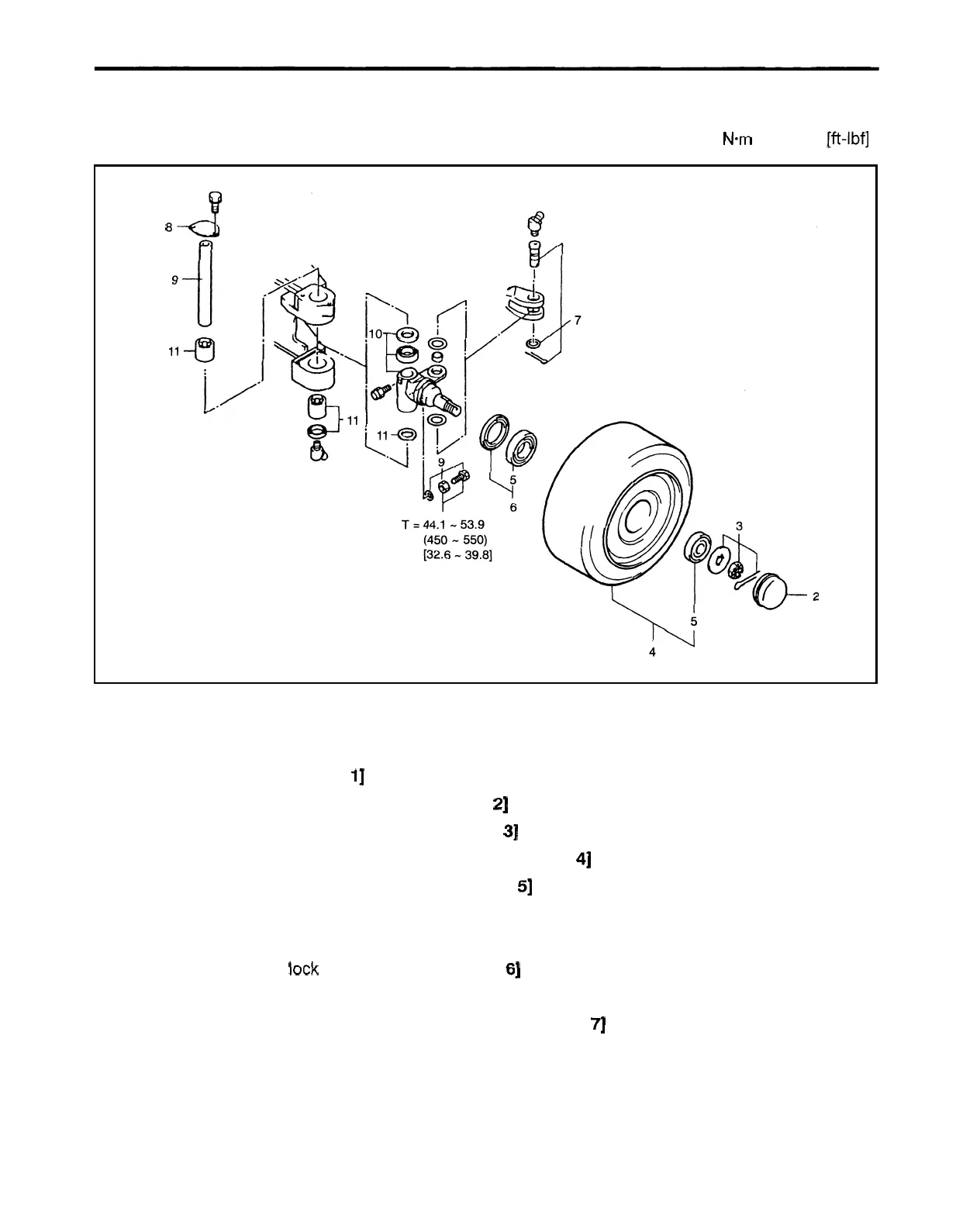

Removal Procedure
1 Jack up the vehicle.
2
Remove the hub cap.
[Point
11
3
Remove the castle nut and claw washer.
[Point
21
4
Remove the outer bearing and rear wheel.
[Point
31
5
Remove the bearing outer race from the rear wheel.
[Point
41
6
Remove the inner bearing roller and oil seal.
[Point
51
7
Disconnect the tie rod (on the knuckle side).
8
Remove the king pin cover.
9
Remove the king pin lock bolt and king
pin.
[Point
61
10 Remove the thrust bearing, spacer and steering knuckle.
11 Remove the king pin oil seal and needle roller bearing.
[Point
71
Installation Procedure
The installation procedure is the reverse of the removal procedure.
Note:
After installation, add MP grease through grease fittings.
