ADJUSTMENT
1.
Park the vehicle on a flat ground and set the mast vertical.
2.
Lower the fork to the ground, and make adjustment to eliminate any chain sag by turning the adjusting
nut.
3.
Check to see that the chain tension is equal on the left and right side.
4.
Check to see no chain twist.
5.
See that the fork height is the standard.
6.
With the fork raised fully, check to see that the lift bracket freeing prevention stopper at the inner mast
is not in contact with the lift bracket.

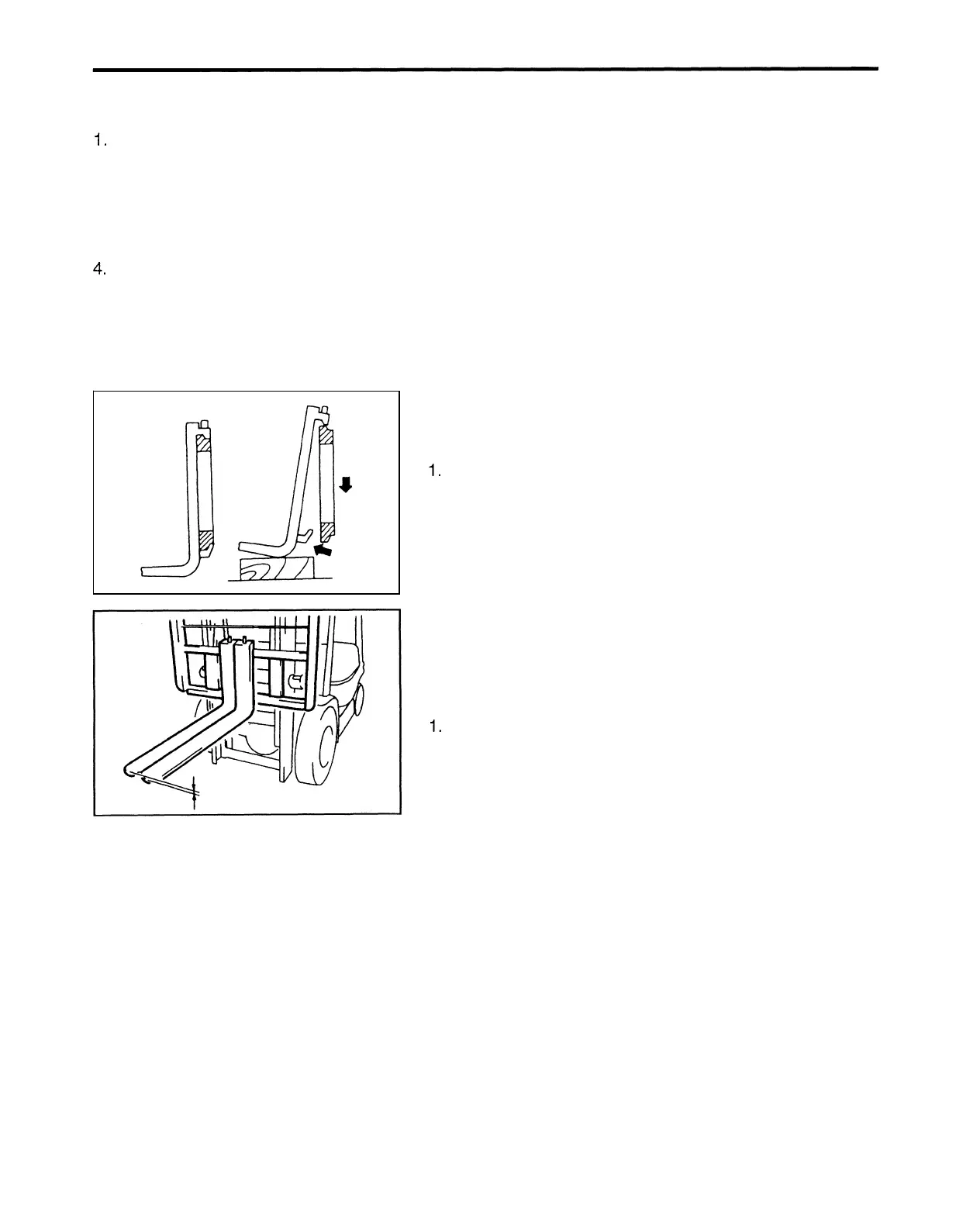

FORK
REMOVAL
1.
Set the fork at approx.
20
cm
(7.9
in) above the ground.
2.
Place a wooden block under the knotched portion of the
fork rail.
3.
Unlock the fork by lifting the fork stopper pin, and shift
the fork blades, one at a time, to the center.
4.
Slowly lower the fork for removal.
INSTALLATION
The installation procedure is the reverse of the removal pro
-
cedure.
INSPECTION
1.
Inspect misalignment of the fork tip ends.
Limit:
10
mm
(0.39
in)
If the limit is exceeded, inspect individual fork bend, loose
-
ness of fork installation and
lift
bracket finger bar distor
-
tion.
