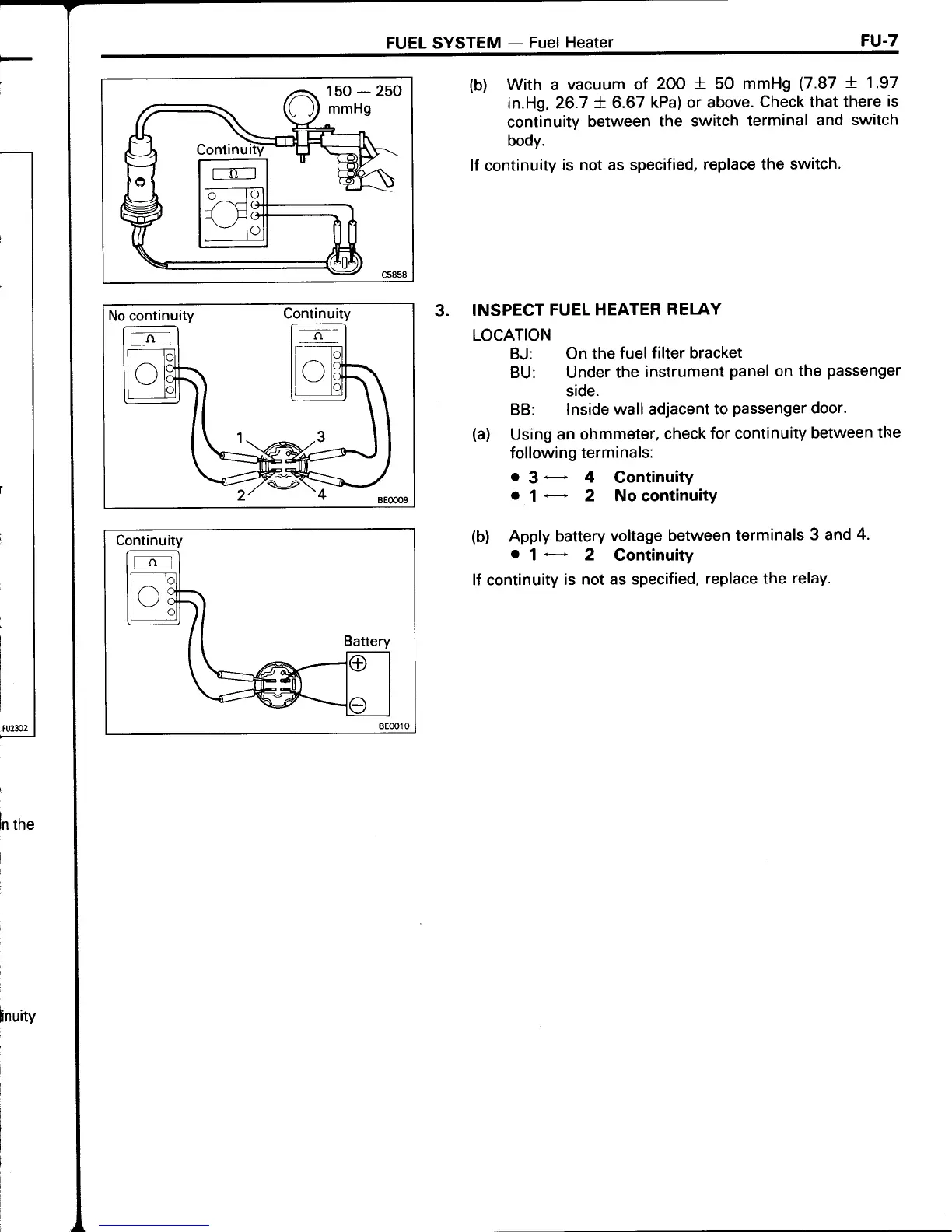

FUEL SYSTEM
-
Fuel
Heater
FU-7
(b)
With a
vacuum of
2OO
*
5O
mmHg
(7.87
X 1.97
in.Hg, 26.7
t 6.67
kPa) or above.
Check
that there
is
continuity
between
the switch
terminal
and
switch
body.
lf continuity
is not as specified,
replace the switch.
3.
INSPECT
FUEL
HEATER
RELAY
LOCATION
BJ: On
the
fuel
filter bracket
BU: Under
the
instrument
panel
on the
passenger
side.
BB:
lnside wall adjacent
to
passenger
door.
Using
an ohmmeter,
check
for continuity
between
the
following
terminals:
o
3-
4
Continuity
.1.--*
2 Nocontinuity
Apply battery
voltage
between
terminals
3 and
4.
.1*
2
Continuity
lf continuity
is
not as specified,
replace the
relay.
No continuity
ContinuitY
Continuity
(a)
(b)
ln tne
I
Inuity
