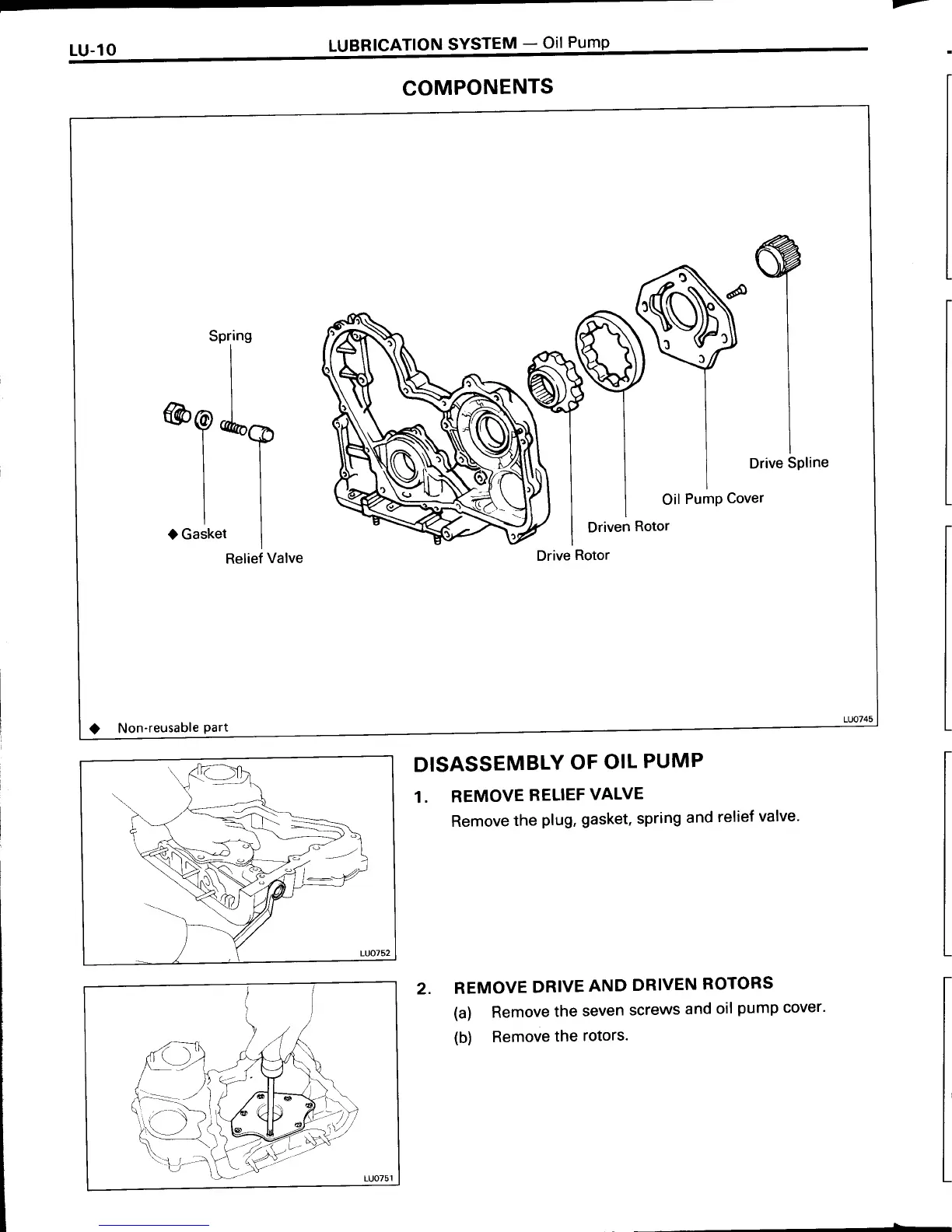

LUBRICATION

SYSTEM

-

Oil

Pu

COMPONENTS

:I\

Drive

Spline

Oil

Pump

Cover

Relief

Valve

Drive

Rotor

a

Non'reusable

Part

Driven

Rotor

DISASSEMBLY

OF

OIL

PUMP

1.

REMOVE

RELIEF

VALVE

Remove

the

plug,

gasket,

spring

and

relief

valve'

REMOVE

DRIVE

AND

DRIVEN

ROTORS

(a)

Remove

the

seven

screws

and

oil

pump

cover'

(b)

Remove

the

rotors.
