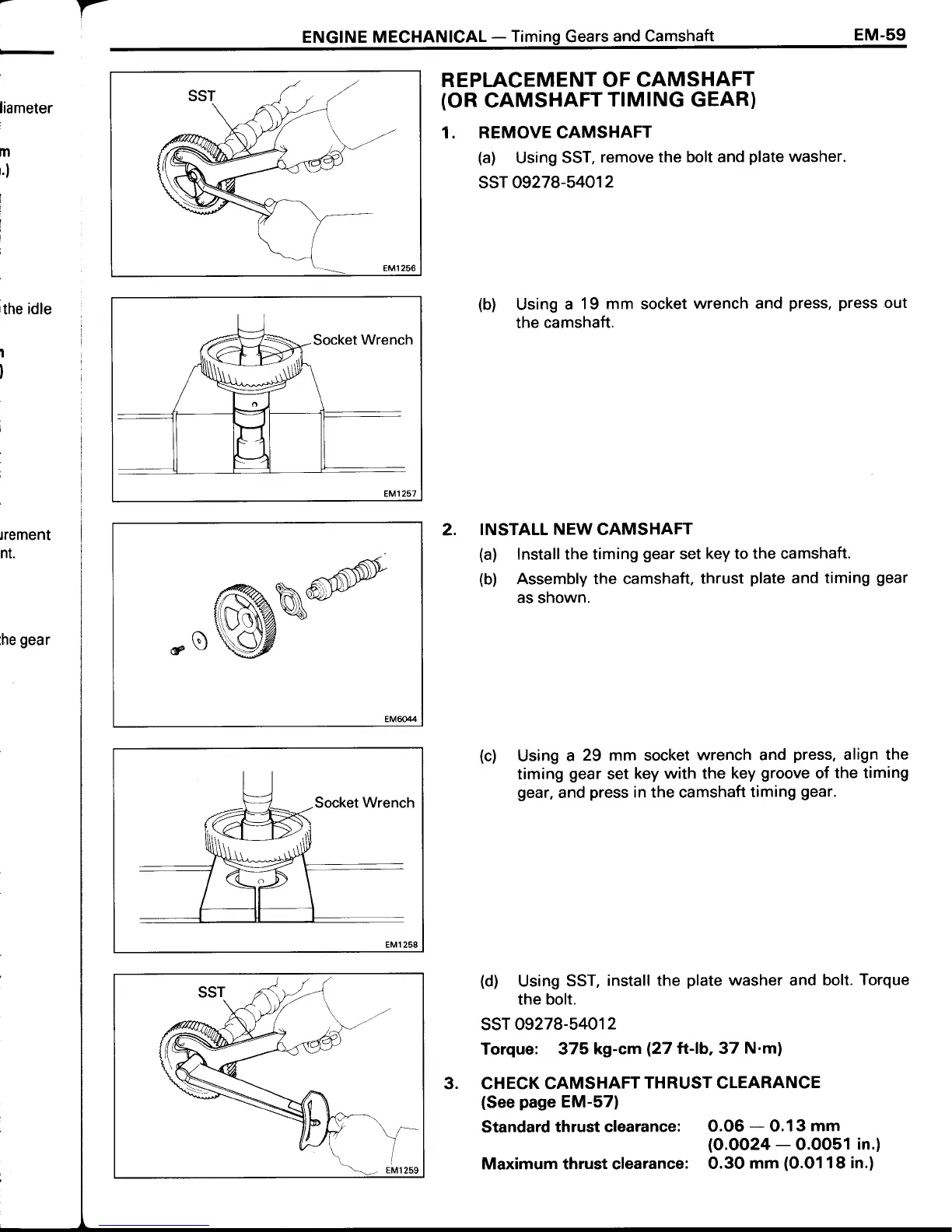

ENGINE MECHANICAL
-
Timing
Gears
and Camshaft
EM-59
m
r.l
I
I
i
I
liameter
Lthe
idle
lrement
nt.
rhe
gear
REPIACEMENT OF
CAMSHAFT
(oR
CAMSHAFT
TIMING
GEAR)
1. REMOVE CAMSHAFT
(a)
Using
SST,
remove
the bolt and
plate
washer.
ssr 09278-54012
(b)
Using
a
19 mm socket
wrench and
press, press
out
the
camshaft.
2.
INSTALL NEW CAMSHAFT
(a)
lnstall the timing
gear
set
key to the camshaft.
(b)
Assembly the camshaft,
thrust
plate
and
timing
gear
as shown.
(c)
Using
a
29 mm socket
wrench and
press,
align the
timing
gear
set
key
with
the
key
groove
of
the timing
gear,
and
press
in the camshaft
timing
gear.
(d)
Using
SST,
install the
plate
washer and bolt.
Torque
the bolt.
ssr 09278-54012
Torque: 375
kg-cm
(27
t
-ab,37 N'm)
3. CHECKCAMSHAFTTHRUSTCLEARANCE
(See page
EM-57)
Standard
thrust clearance:
O.OG
-
O.13
mm
(O.OO24
-
O.OO51
in.)
Maximum thrust clearance:
O.3O
mm
(0.O118
in.)
EM1257
