Toyota B User Manual

118 and
14B

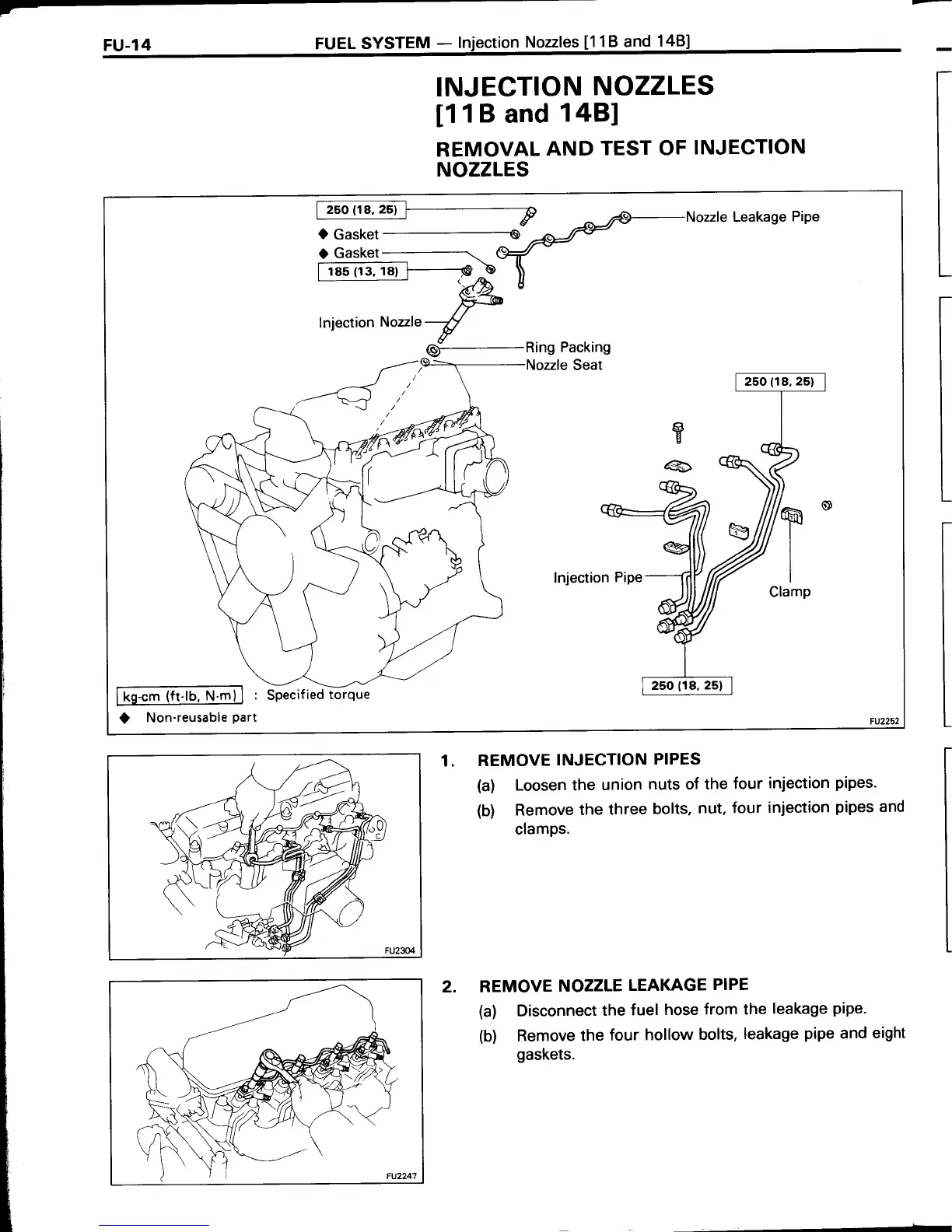

INJECTION
NOZZLES
[1
1B
and
148]
REMOVAL
AND
TEST OF
INJECTION
NOZZLES
L_
1.
REMOVE
INJECTION
PIPES
(a)
Loosen the
union
nuts of the
four
injection
pipes.
(b)
Remove
the
three
bolts,
nut,
four
injection
pipes
and
clamps.
REMOVE
NOZZLE
LEAKAGE
PIPE
(a)
Disconnect
the
fuel
hose
from the
leakage
pipe.
(b)
Remove
the
four
hollow
bolts,
leakage
pipe
and
eight
gaskets.
Nozzle
Leakage
Pipe
Nozzle Seat
lnjection
Pipe
ft-lb. N.m)
O
Non'reusable
part
:
Specified
torque
