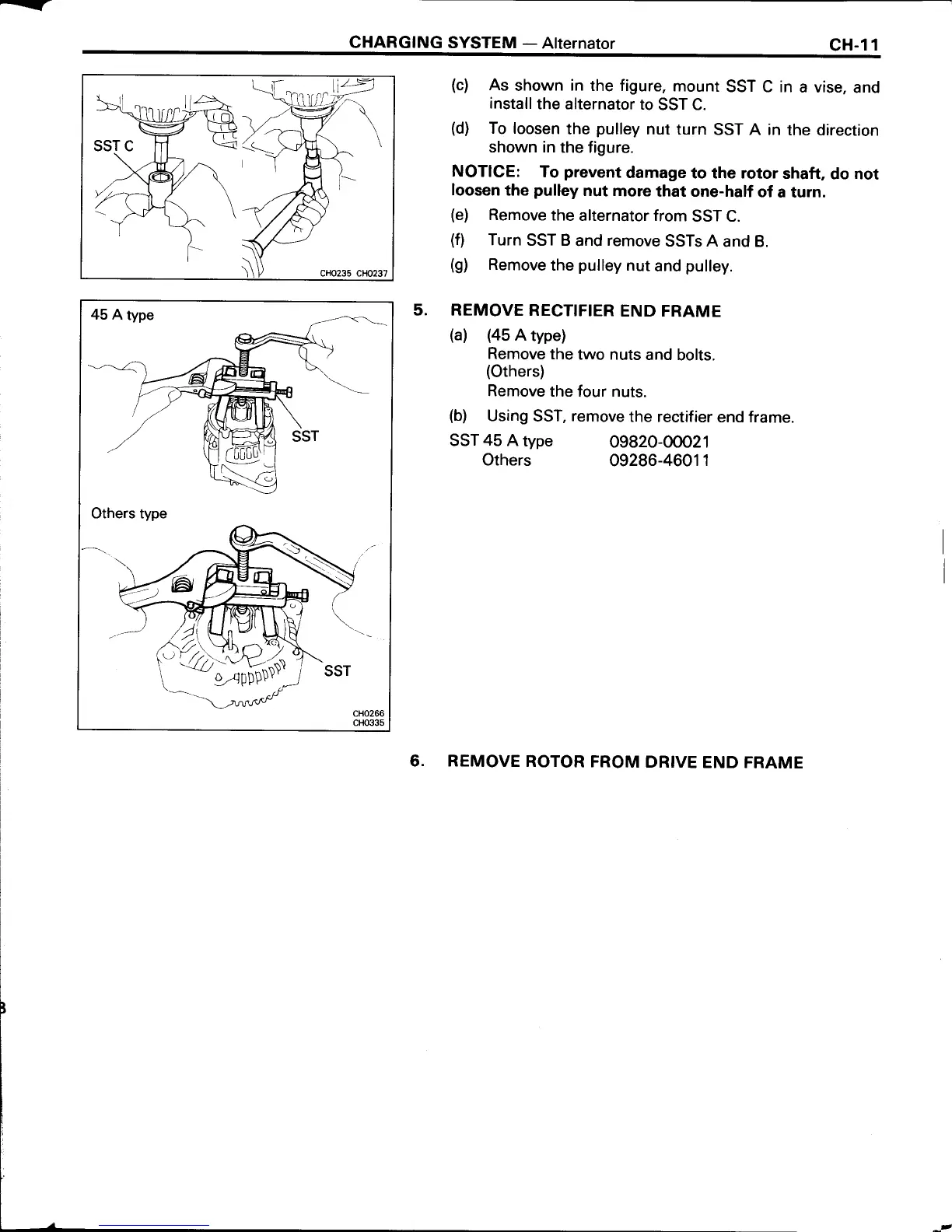

CHARGING
SYSTEM
-
Alternator
cH-11
Others type
(c)
As
shown in the figure,
mount
SST C in
a vise,
and
installthe
alternator
to
SST C.
(d)
To loosen
the
pulley
nut
turn
SST A in
the direction
shown in
the figure.
NOTICE:
To
prevent
damage
to the rotor
shaft,
do not
loosen
the
pulley
nut
more
that one-half
of
a turn.
(e)
Remove
the
alternator from
SST C.
(f)
Turn
SST B
and
remove
SSTs A
and B.
(g)
Remove
the
pulley
nut
and
pulley.
REMOVE
RECTIFIER
END FRAME
(a) (45
A
type)
Remove
the
two nuts
and
bolts.
(Others)
Remove
the four nuts.
(b)
Using
SST,
remove
the rectifier
end frame.
5.
SST
45
A
type
Others
o9820-OOO21
09286-46011
6. REMOVE
ROTOR
FROM
DRIVE
END FRAME
cHo235 CHO237
