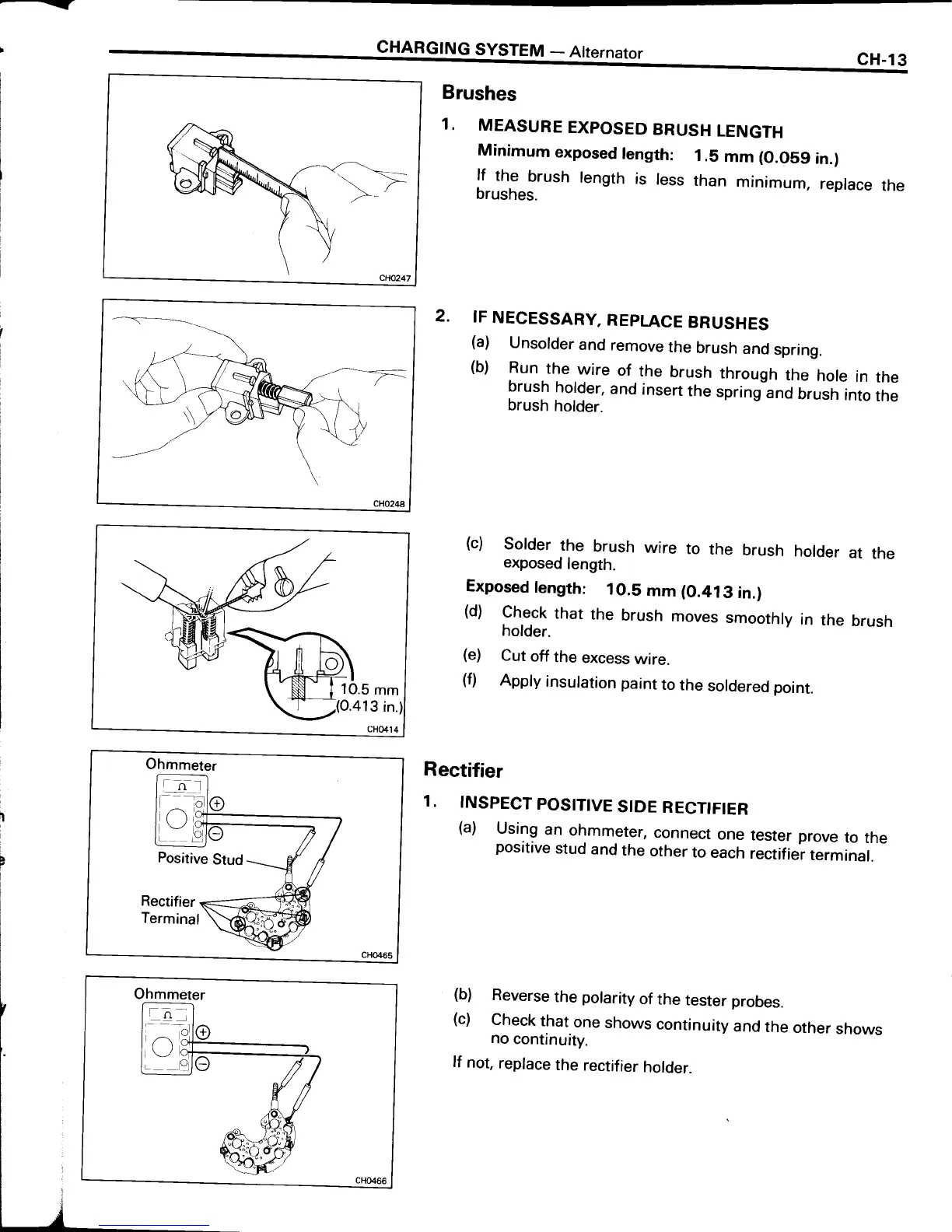

CHARGING
SYSTEM
-
Atternator
cH-13
Brushes
1.
MEASURE
EXPOSED
BRUSH
LENGTH
Minimum
exposed
length:
1.5
mm
(O.O59
in.)
lf
the
brush
length
is
less
than
minimum,
replace
the
brushes.
2.
IF
NECESSARY,
REPLACE
BRUSHES
(a)
Unsolder
and
remove
the
brush
and
spring.
(b)
Run
the
wire
of
the
brush
through
the
hole
in
the
brush
holder,
and
insert
the
spring
anO
Orusn
inio
ine
brush
holder.
1O.5
mm
(0.413
in.
cHo414
Ohmmeter
Ohmmeter
(c)
Solder
the
brush
wire
to
the
brush
holder
exposed
length.
Exposed
length:
1O.S
mm
(0.413
in.)
(d)
Check
that
the
brush
moves
smoothly
in
the
brush
holder.
(e)
Cut
off
the
excess
wire.
(f)
Apply
insulation
paint
to
the
soldered
point.
Rectifier
1.
INSPECT
POSITIVE
SIDE
RECTIFIER
(a)
Using
an
ohmmeter,
connect
one
tester prove
to
the
positive
stud
and
the
other
to
each
rectifier
t"rrin"i.
(b)
Reverse
the
polarity
of
the
tester probes.
(c)
Check
that
one
shows
continuity
and
the
other
shows
no
continuity.
lf
not,
replace
the
rectifier
holder.
at
the
