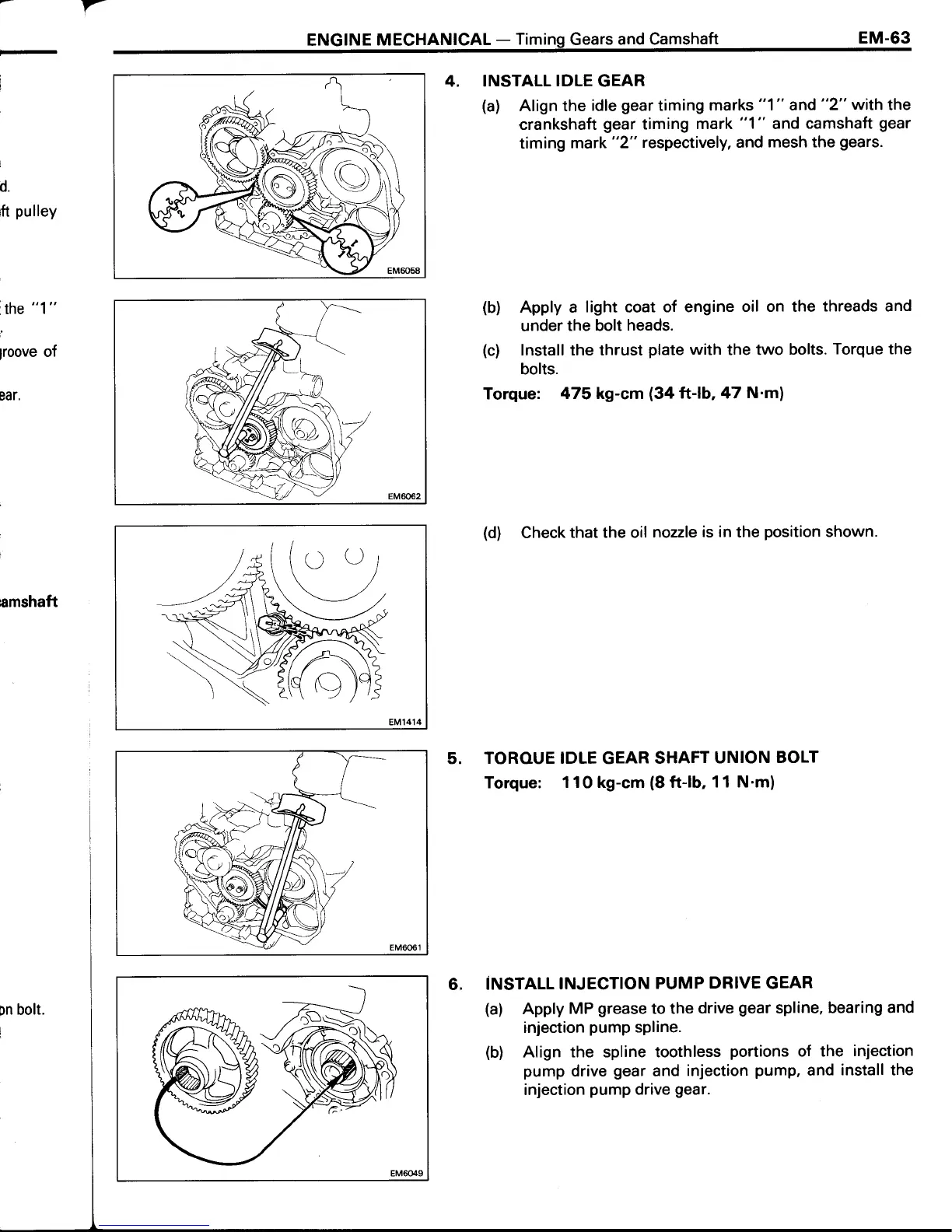

ENGINE
MECHANICAL
-
Timing
Gears
and Camshaft
EM-63
i
d.
rft
pulley
:the
"1 "
i
;roove
of
ear.
nmshaft
4. INSTALL
IDLE
GEAR
(a)
Align the
idle
gear
timing
marks
"1"
and
"2"
with the
crankshaft
gear
timing
mark
"1"
and
camshaft
gear
timing
mark"2"
respectively, and
mesh the
gears.
(b)
Apply a
light
coat
of engine
oil on the
threads and
under
the bolt
heads.
(c)
lnstall the thrust
plate
with
the two
bolts.
Torque the
bolts.
Torque:
475 kg-cm
(34
ft-lb, 47
N'm)
(d)
Check
that the oil
nozzle
is in
the
position
shown.
5.
TOROUE IDLE
GEAR
SHAFT
UNION
BOLT
Torque:
110 kg-cm
(8
ft-lb,
11 N'm)
6.
|NSTALL
INJECTION
PUMP
DRIVE
GEAR
(a)
Apply
MP
grease
to the
drive
gear
spline,
bearing
and
injection
pump
spline.
(b)
Align the spline toothless
portions
of the
injection
pump
drive
gear
and
injection
pump,
and
install the
injection
pump
drive
gear.
