TP-Link Auranet Series User Manual

Click the button OK in Figure 5-16 and the policy is successfully added as Figure 5-17 shows.

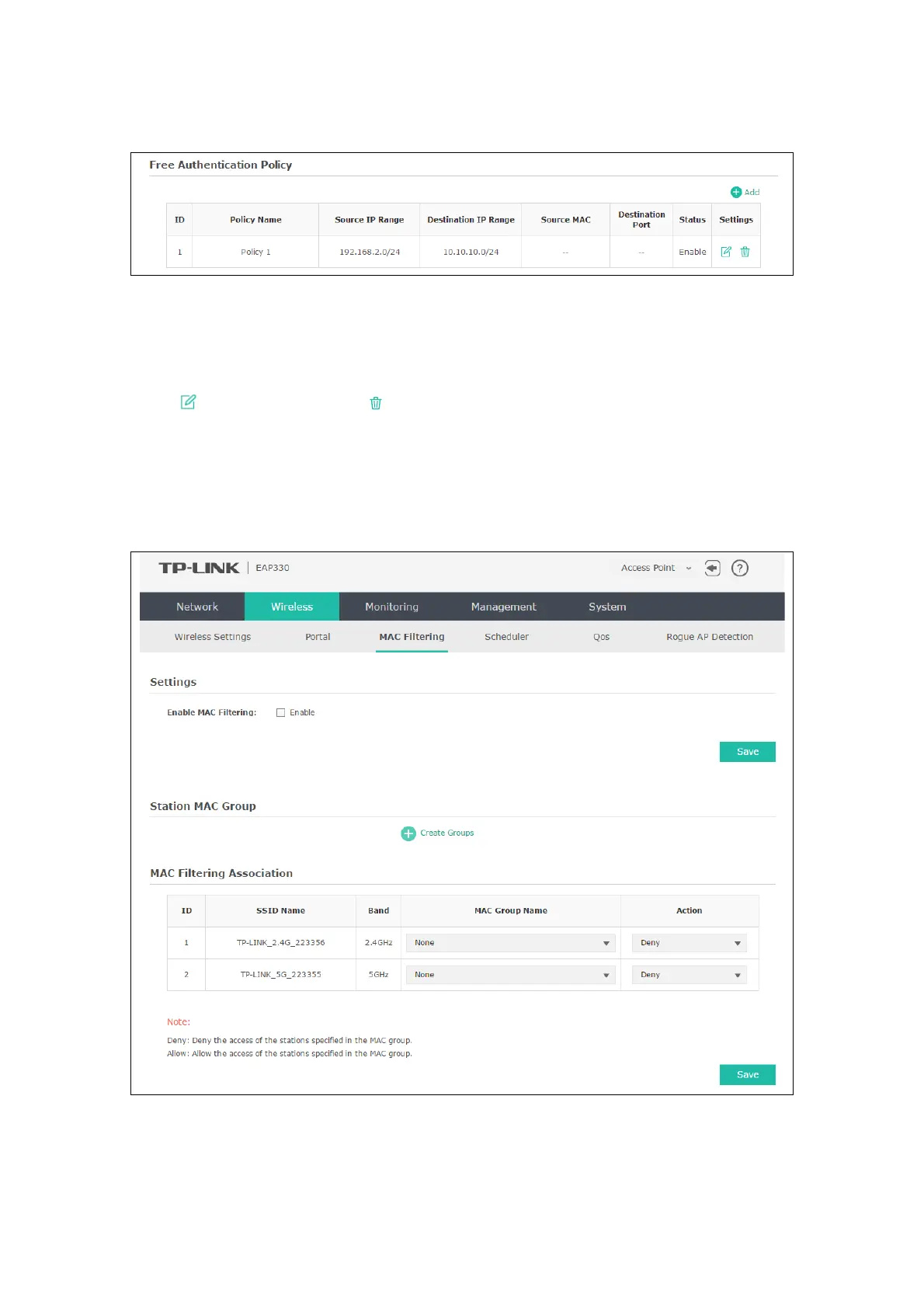

Figure 5-17 Add Free Authentication Policy
Here is the explanation of Figure 5-17: The policy name is Policy 1. Clients with IP address range
192.168.2.0/24 are able to visit IP range 10.10.10.0/24. Policy 1 is enabled.
Click to edit the policy. Click to delete the policy.
5.3 MAC Filtering
MAC Filtering uses MAC addresses to determine whether one host can access the wireless
network. Thereby it can effectively control the user access to the wireless network.
Figure 5-18 MAC Filtering Page
21

TP-Link Auranet Series Specifications

General

Brand	TP-Link
Model	Auranet Series
Category	Wireless Access Point
Language	English
