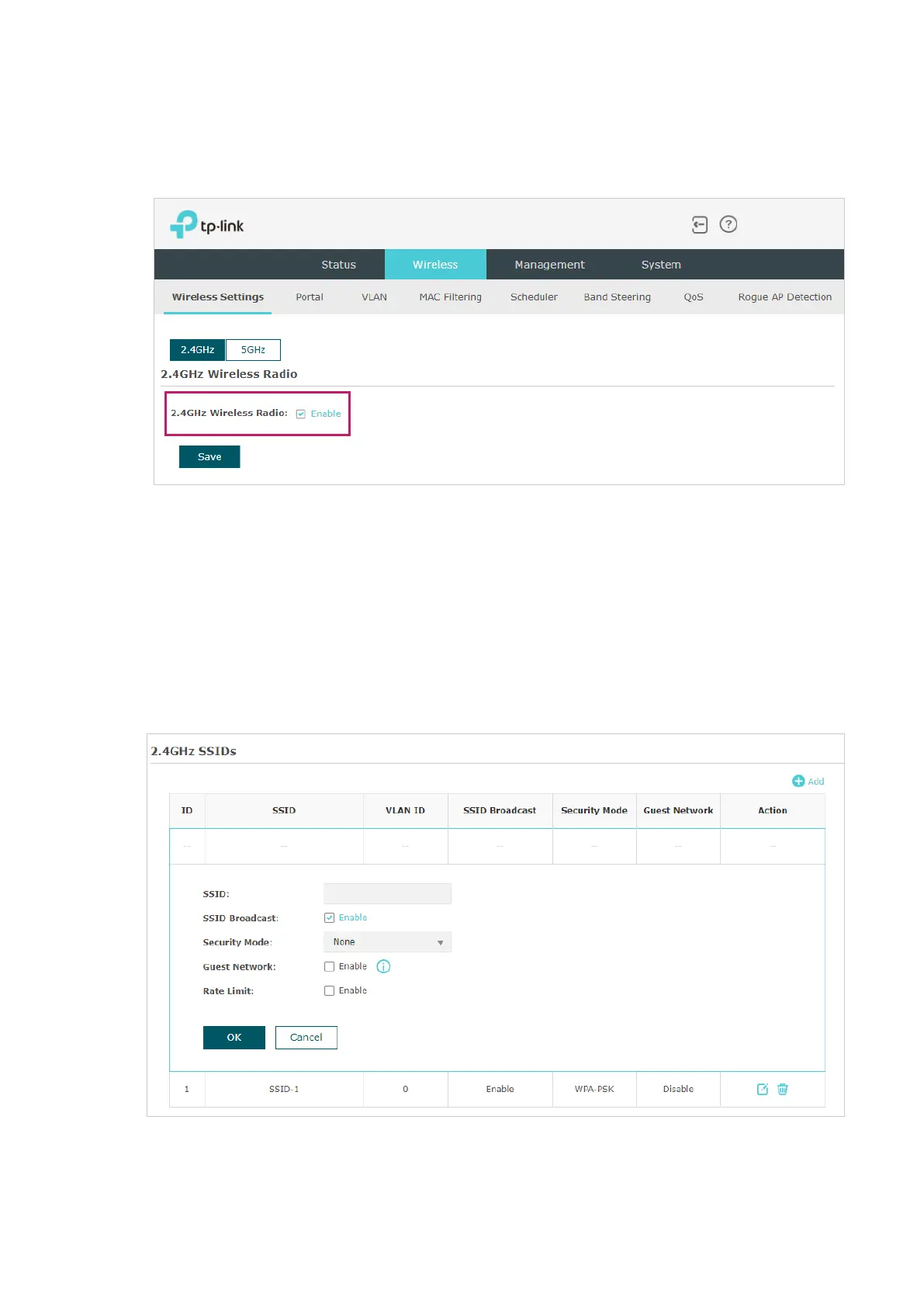

Before configuring the wireless parameters on each band, check the box to enable 2.4GHz
or 5GHz Wireless Radio. Only when this option is enabled will the wireless radio on 2.4GHz
or 5GHz band works.
Demonstrated with 2.4GHz, the following sections introduce these contents: 2.1.1
Configure SSIDs
and 2.1.2 Configure Wireless Advanced Settings .
2.1.1 Configure SSIDs
SSID (Service Set Identifier) is used as an identifier for a wireless LAN, and is commonly
called as the “network name“. Clients can find and access the wireless network through
the SSID. For one EAP, you can build up to eight SSIDs per frequency band.

TP-Link Omada EAP230-Wall Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Virtual LAN features	Port-based VLAN, VLAN mapping
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Number of products included	2 pc(s)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	Operation
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Package depth	130 mm
Package width	118 mm
Package height	47 mm
Package weight	210 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Width	86.8 mm
Height	30.2 mm
