Follow the steps below to configure Management Access on this page:
1. Check the box to enable MAC Authentication.
2. Specify one or more MAC addresses in the MAC1/MAC2/MAC3/MAC4 fields. Up to
four MAC addresses can be added.
3. Click Save.
Tips:
• You can click to quickly add the MAC address of your current logged-in host, .
• Verify the MAC addresses carefully. Once the settings are saved, only the hosts in the MAC
address list can access the web page of the EAP.
• If you cannot log in to the web page after saving the wrong configuration, you can reset the EAP
to the factory defaults and use the default username and password (both admin) to log in.
Configure Management VLAN
Management VLAN provides a safer method to manage the EAP. With Management VLAN
enabled, only the hosts in the Management VLAN can access the web page of the EAP.
Since most hosts cannot process VLAN TAGs, you can connect the management host to
the network via a switch, and set up correct VLAN settings for the switches on the network
to ensure the communication between the host and the EAP in the Management VLAN.

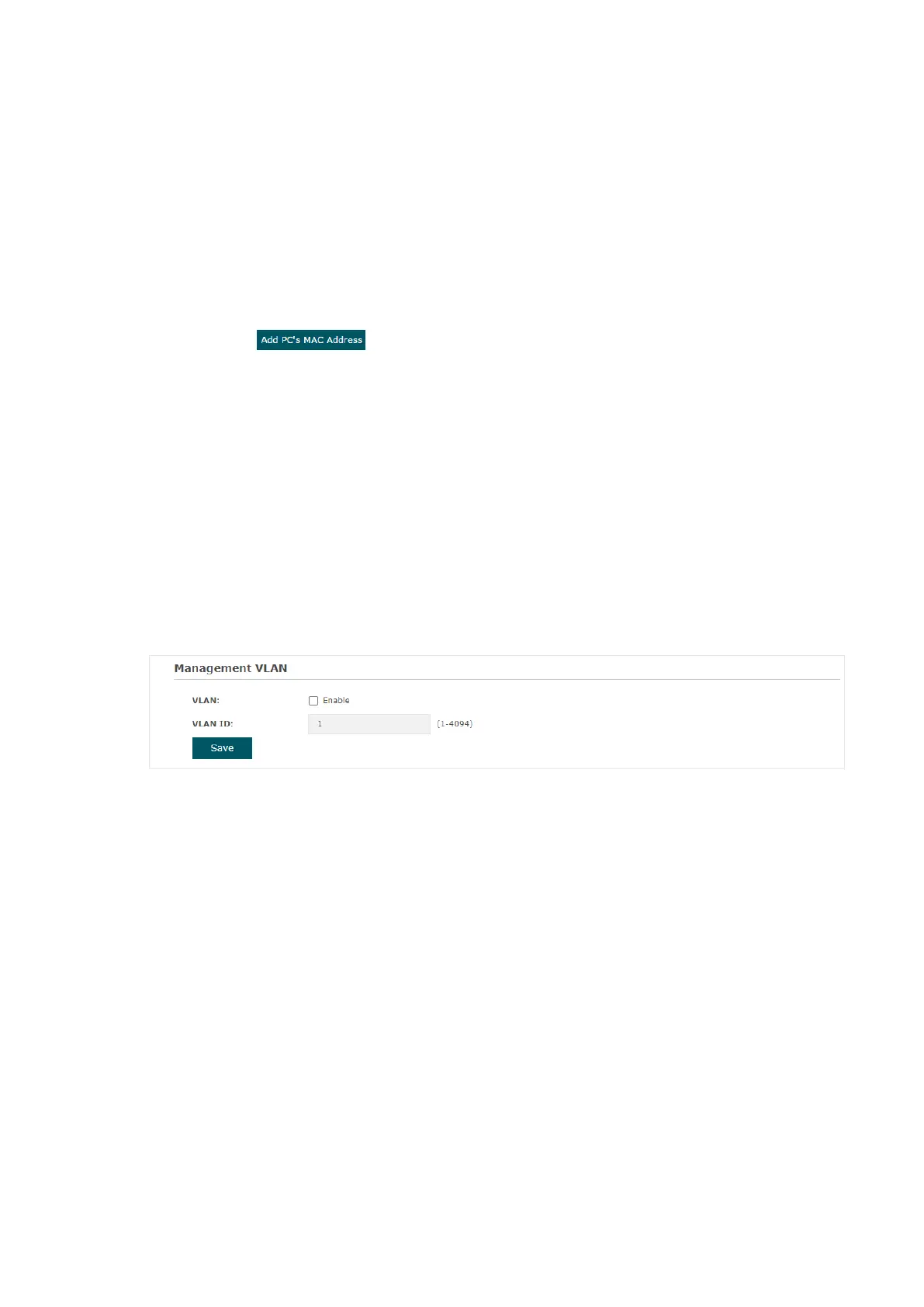

Follow the steps below to configure Management VLAN on this page:
1. Check the box to enable Management VLAN.
2. Specify the VLAN ID of the management VLAN. Only the hosts in the Management
VLAN can log in to the EAP via the Ethernet port.
3. Click Save.

TP-Link Omada EAP230-Wall Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Virtual LAN features	Port-based VLAN, VLAN mapping
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Number of products included	2 pc(s)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	Operation
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Package depth	130 mm
Package width	118 mm
Package height	47 mm
Package weight	210 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Width	86.8 mm
Height	30.2 mm
