TP-Link Omada EAP230-Wall User Manual

46
2.3 Configure VLAN
Wireless VLAN is used to set VLANs for the wireless networks. With this feature, the EAP
can work together with the switches supporting 802.1Q VLAN. Traffic from the clients
in different wireless networks is added with different VLAN tags according to the VLAN
settings of the wireless networks. Then the wireless clients in different VLANs cannot
directly communicate with each other. Note that the traffic from the wired clients will not
be added with VLAN tags.

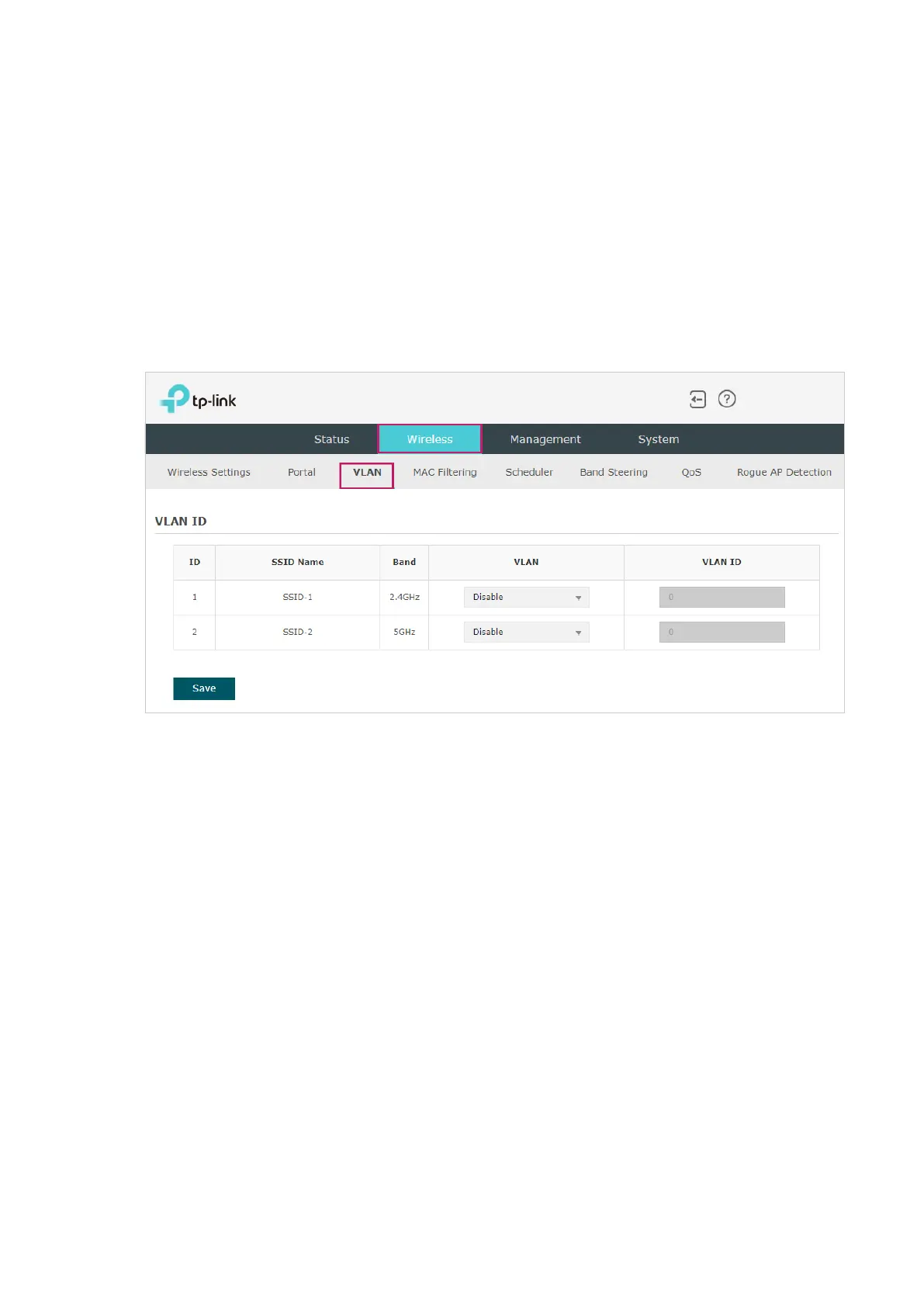

To configure VLAN for the wireless network, go to the Wireless > VLAN page.
Follow the steps below to configure VLAN on this page.
1. Select the specific SSID in the list to configure the VLAN.
2. In the VLAN column and select Enable to enable the VLAN function on the SSID.
3. Specify the VLAN ID for the wireless network in the VLAN ID column. Every VLAN ID
represents a different VLAN. It supports maximum 8 VLANs per frequency band. The
VLAN ID range is 0 to 4094. 0 is used to disable VLAN tagging.
4. Click Save.

TP-Link Omada EAP230-Wall Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Virtual LAN features	Port-based VLAN, VLAN mapping
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Number of products included	2 pc(s)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	Operation
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Package depth	130 mm
Package width	118 mm
Package height	47 mm
Package weight	210 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Width	86.8 mm
Height	30.2 mm
