3.1 Monitor the EAP

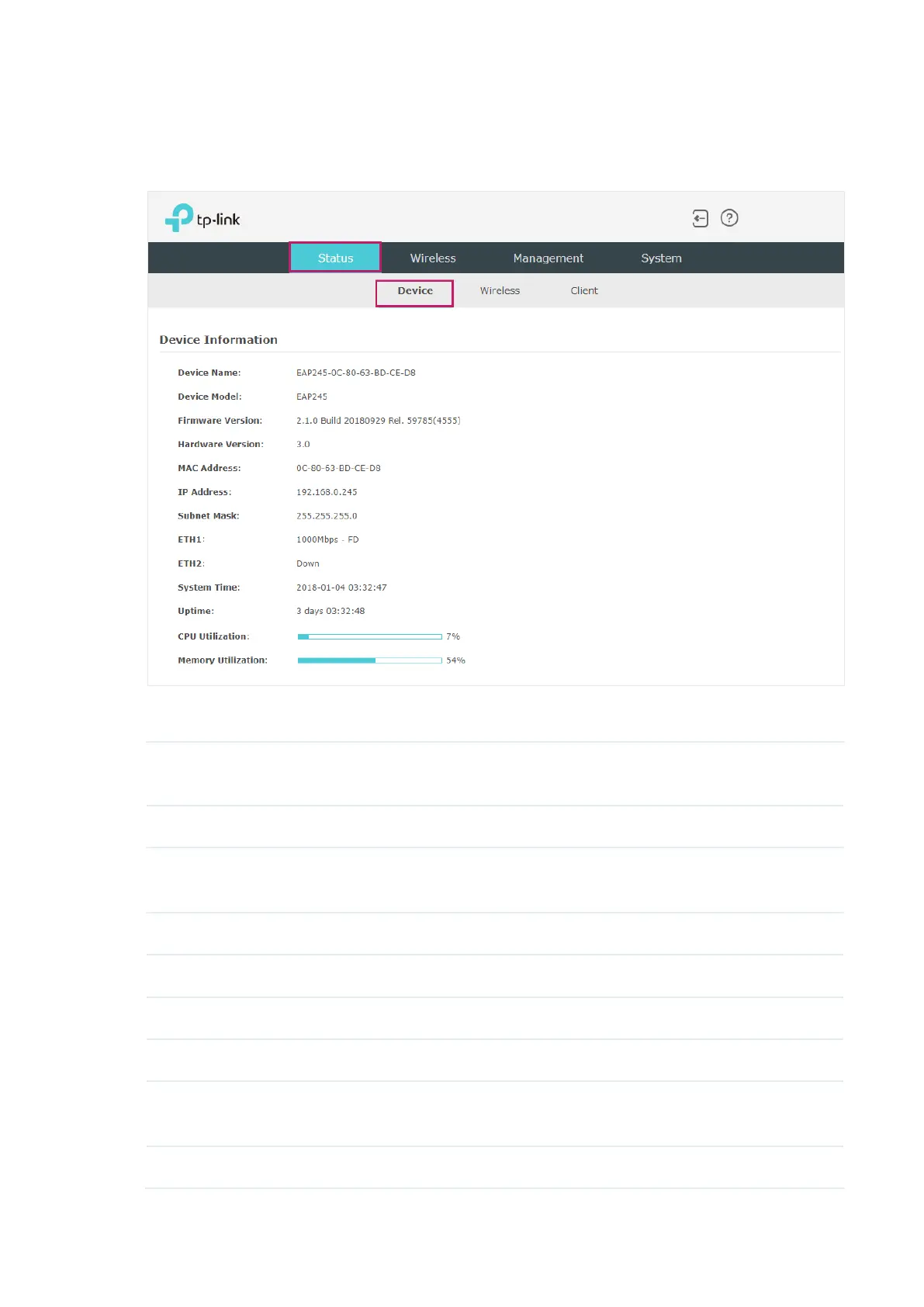

To monitor the EAP information, go to the Status > Device page.
The following device information is displayed:
Device Name Displays the name of the EAP. The name consists of the product model
followed with the MAC address of the EAP by default.
Device Model Displays the product model of the EAP.
Firmware Version Displays the current firmware version the EAP. To update the firmware,
you can refer to
5.6 Update the Firmware
.
Hardware Version Displays the hardware version the EAP.
MAC Address Displays the MAC address of the EAP.
IP Address Displays the IP address of the EAP.
Subnet Mask Displays the subnet mask of the EAP.
System Time Displays the current system time. To configure the system time, you can
refer to
5.3 Configure the System Time
.
Uptime Displays how long the EAP has been working since it starts up.

TP-Link Omada EAP230-Wall Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Virtual LAN features	Port-based VLAN, VLAN mapping
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Number of products included	2 pc(s)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	Operation
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Package depth	130 mm
Package width	118 mm
Package height	47 mm
Package weight	210 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Width	86.8 mm
Height	30.2 mm
