TP-Link Omada EAP230-Wall User Manual

87
4.8 Configure SSH
If you want to remotely log in to the EAP via SSH, you can deploy an SSH server on your
network and configure the SSH feature on the EAP.

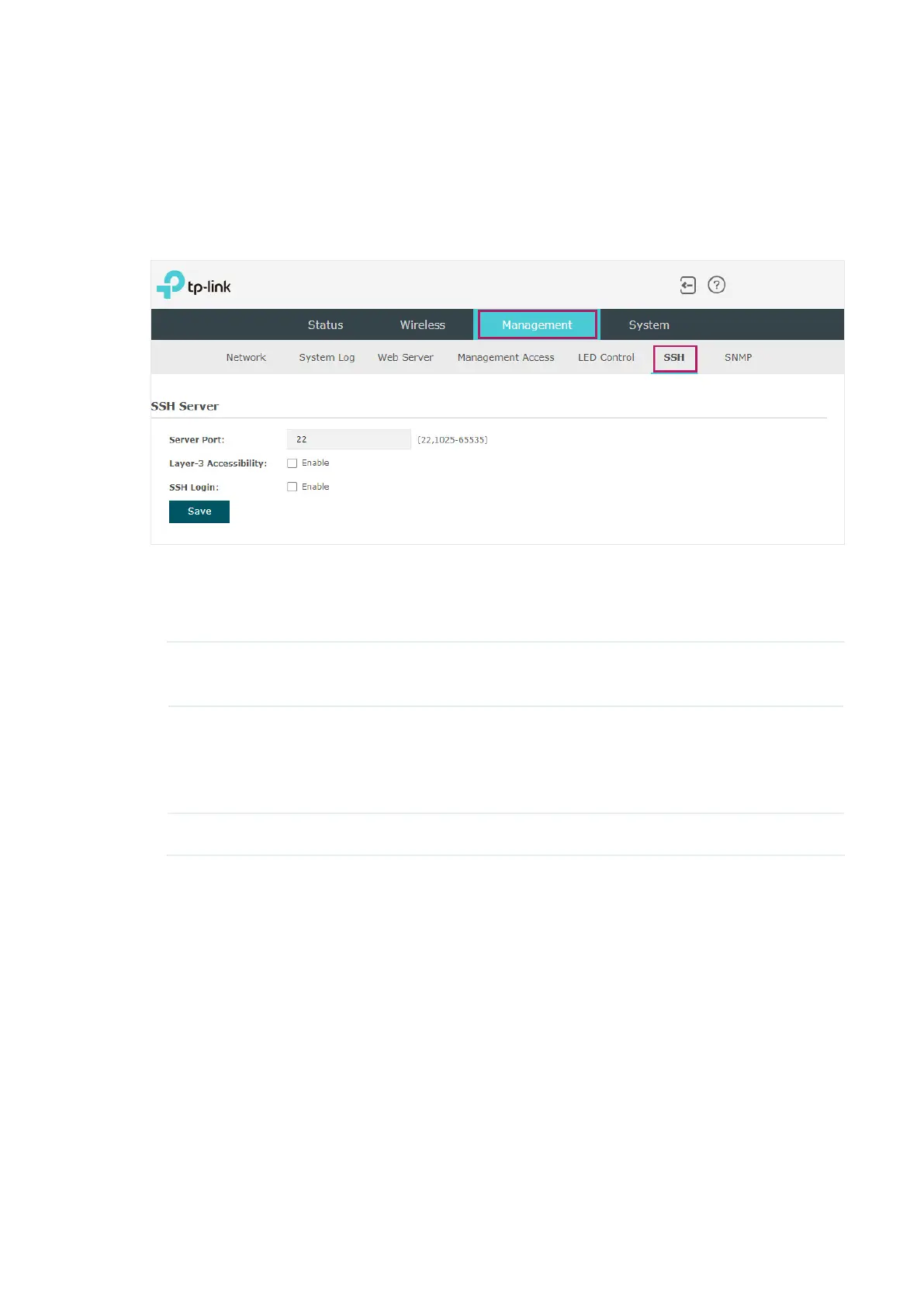

To configure SSH, go to the Management > SSH page.
Follow the steps below to configure SSH on this page:
1. Refer to the following table to configure the parameters:
Server Port Designate a server port for SSH. By default the port is 22.
Layer-3
Accessibility
With this feature enabled, devices from a different subnet can access
Omada managed devices via SSH. With this feature disabled, only the
devices in the same subnet can access Omada managed devices via
SSH.
SSH Login Enable or disable SSH Login globally.
2. Click Save.

TP-Link Omada EAP230-Wall Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Virtual LAN features	Port-based VLAN, VLAN mapping
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Number of products included	2 pc(s)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	Operation
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Package depth	130 mm
Package width	118 mm
Package height	47 mm
Package weight	210 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Width	86.8 mm
Height	30.2 mm
