TP-Link Omada EAP245 User Manual

111
6.3 Log in to the EAP
After building the network topology, follow the steps below to log in to the web page of the
EAP:

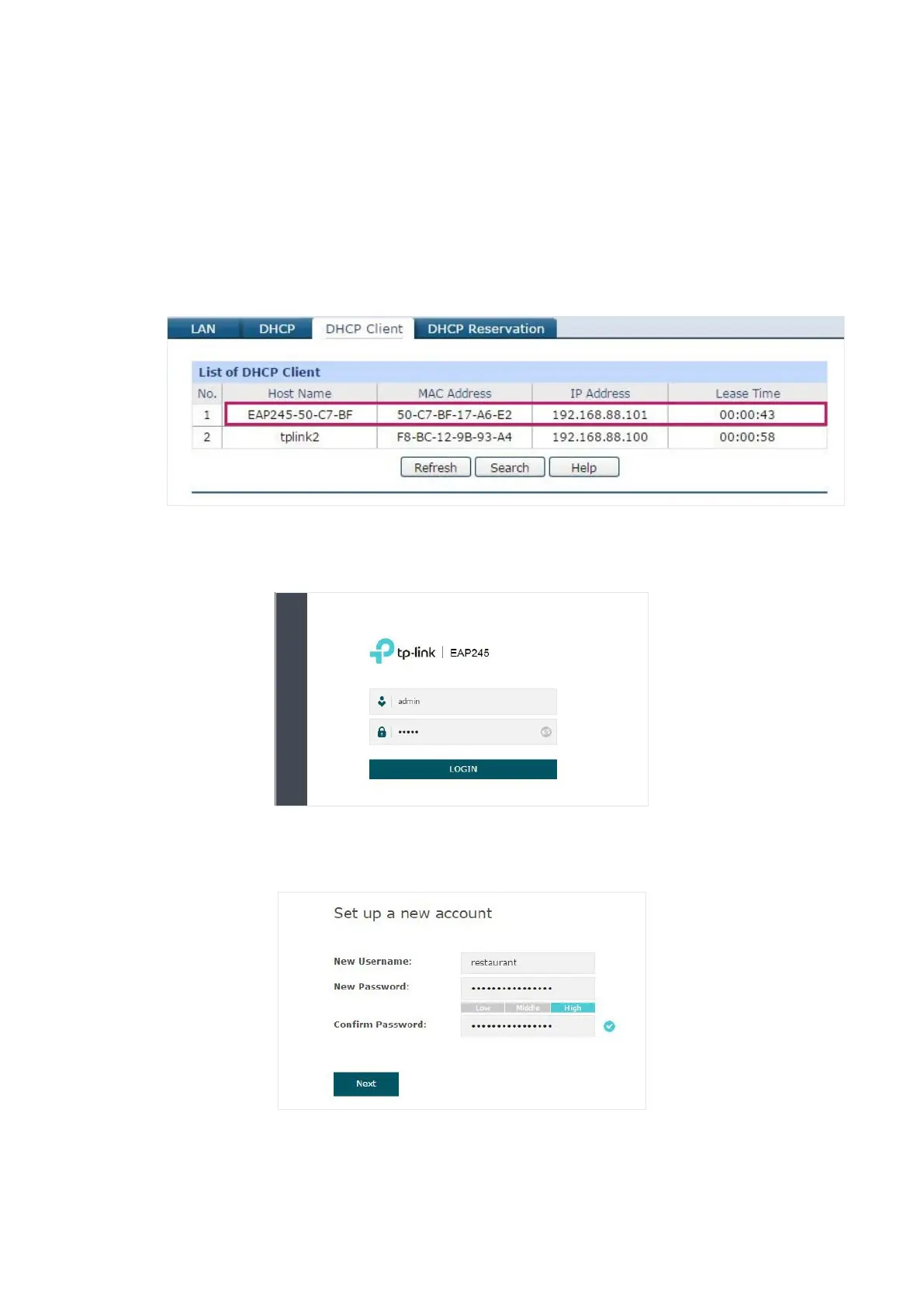

1. On the management host, launch the web browser and enter “192.168.88.1” in the
address bar. Then log in to the router and find the IP address of the EAP. As the
following figure shows, the IP address of the EAP is 192.168.88.101.
2. Enter “192.168.88.101” in the address bar to load the login page of the EAP. Type the
default username and password (both admin) in the two fields and click LOGIN.
3. In the pop-up window, specify a new username and a new password for the user
account. Click Next.

TP-Link Omada EAP245 Specifications

General

5 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Transmitting power	27 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Virtual LAN features	SSID-based VLAN assignment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	24 dBm
Maximum data transfer rate	1750 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Placement	Ceiling, Wall
Product color	White
LED indicators	Power
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Output current	1.5 A
Output voltage	12 V
Power consumption (typical)	12.7 W
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Cables included	AC
Number of products included	1 pc(s)
Package depth	340 mm
Package width	228 mm
Package height	65 mm
Package weight	1180 g
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Width	180 mm
Height	47.5 mm
