2.3 Configure VLAN
Wireless VLAN is used to set VLANs for the wireless networks. With this feature, the EAP
can work together with the switches supporting 802.1Q VLAN. Traffic from the clients
in different wireless networks is added with different VLAN tags according to the VLAN
settings of the wireless networks. Then the wireless clients in different VLANs cannot
directly communicate with each other. Note that the traffic from the wired clients will not
be added with VLAN tags.

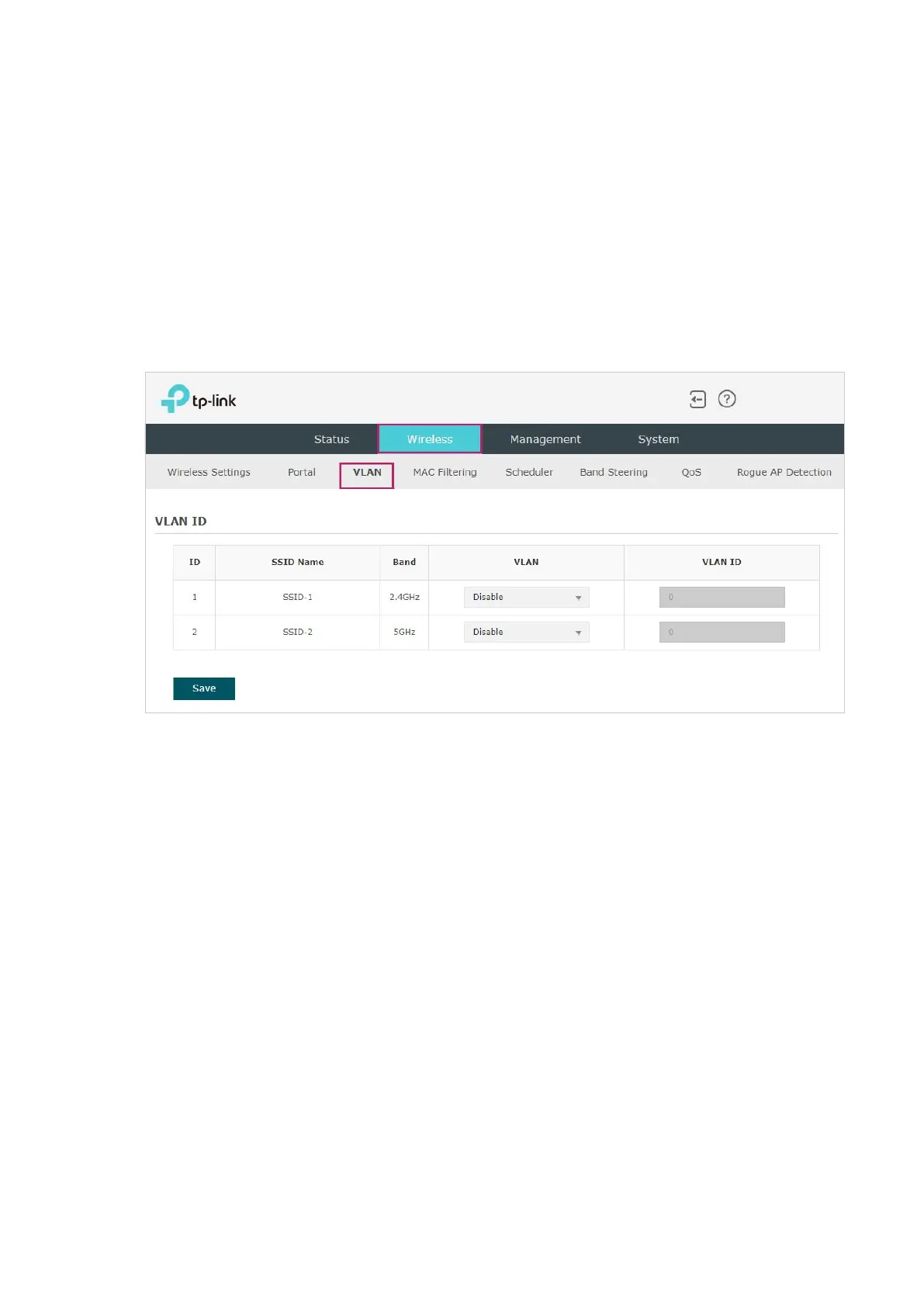

To configure VLAN for the wireless network, go to the Wireless > VLAN page.
Follow the steps below to configure VLAN on this page.
1. Select the specific SSID in the list to configure the VLAN.
2. In the VLAN column and select Enable to enable the VLAN function on the SSID.
3. Specify the VLAN ID for the wireless network in the VLAN ID column. Every VLAN ID
represents a different VLAN. It supports maximum 8 VLANs per frequency band. The
VLAN ID range is 0 to 4094. 0 is used to disable VLAN tagging.
4. Click Save.

TP-Link Omada EAP245 Specifications

General

5 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Transmitting power	27 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Virtual LAN features	SSID-based VLAN assignment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	24 dBm
Maximum data transfer rate	1750 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Placement	Ceiling, Wall
Product color	White
LED indicators	Power
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Output current	1.5 A
Output voltage	12 V
Power consumption (typical)	12.7 W
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Cables included	AC
Number of products included	1 pc(s)
Package depth	340 mm
Package width	228 mm
Package height	65 mm
Package weight	1180 g
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Width	180 mm
Height	47.5 mm
